This topic describes the differences in the concepts used in Swarm and Kubernetes clusters.

Application

Swarm cluster

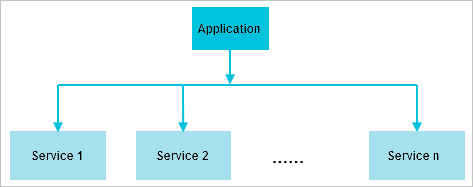

In Swarm clusters, applications are similar to projects. One application consists of multiple services. A service is an instance that provides specific functions of an application. Services support horizontal scaling.Swarm cluster

Kubernetes cluster

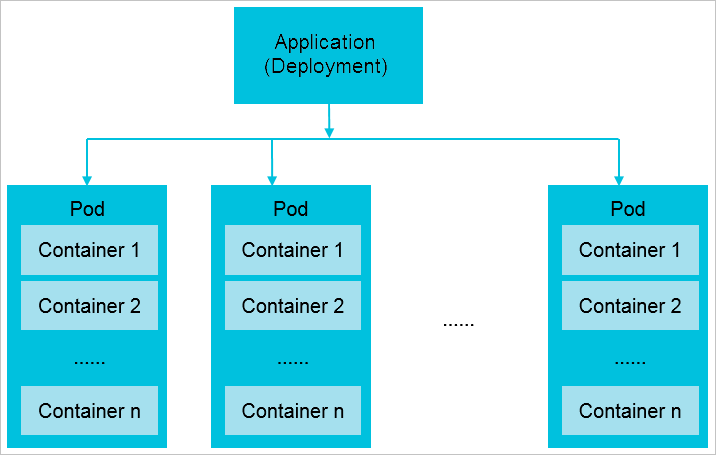

In Kubernetes clusters, applications are deployments that expose functions externally. A deployment manages one or more pods and containers. Pods are the smallest deployable computing units in Kubernetes. One pod may consist of multiple containers. A pod is meant to run a single instance of an application. Pods support horizontal scaling and can be scheduled to different nodes.Kubernetes cluster
Note In the preceding figure, one pod consists of multiple containers. We recommend that you use one pod to run a single container in practical use.

Service

Swarm cluster

In Swarm clusters, a service is an instance of an application that provides specific functions. When you create an application in a Swarm cluster, access to the application services is directly exposed.

Kubernetes cluster

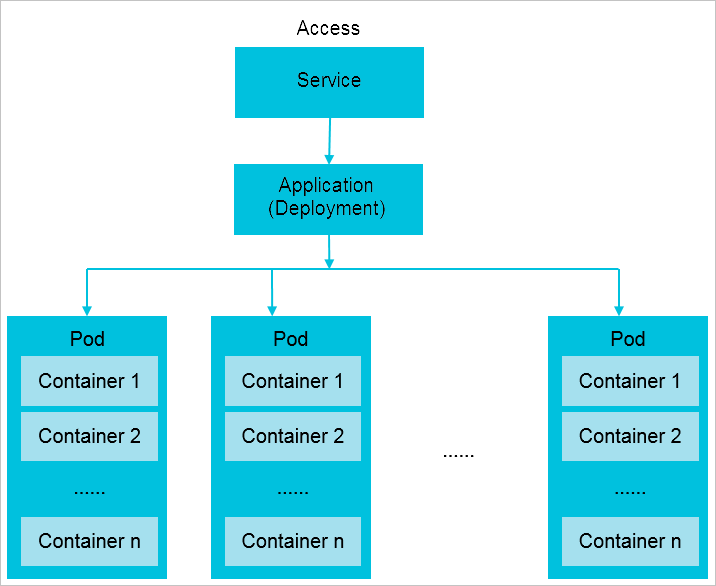

In Kubernetes clusters, service is an abstract concept. You can use services to expose deployments to external users.Kubernetes cluster

Access an application

Swarm cluster

When you create an application in a Swarm cluster, you can choose one of the following methods to expose the application. All these methods enable external access to the application.
  • <HostIP>:<port>
  • Simple routing
  • SLB routing

Kubernetes cluster

After you create an application in a Kubernetes cluster, you need to create services to expose the application. To access an application from within a Kubernetes cluster, you can use service names, which only support internal access. To access an application from outside a Kubernetes cluster, you can create NodePort or LoadBalancer services to expose the application.
  • ClusterIP (Supports internal access)
  • NodePort (Similar to <HostIP>:<port> in Swarm clusters)
  • LoadBalancer (Similar to SLB routing in Swarm clusters)
  • Domain names based on ingresses. (Similar to simple routing in Swarm clusters)
