This topic describes how to go to the Overview page of Data Map to view the overall resource information about all data sources within your Alibaba Cloud account in the current region.

Procedure

  1. Log on to the DataWorks console and go to the DataMap page. For more information, see Go to the homepage.
  2. In the top navigation bar, click Overview.
    The Overview page displays the statistics on the resources from all data sources within your Alibaba Cloud account in the current region. The statistics are generated offline for the previous day. Overview
    Note
    Section Description
    Total Number of Projects The total number of MaxCompute projects within the current Alibaba Cloud account.
    Total Number of Tables The total number of MaxCompute tables within the current Alibaba Cloud account.
    Storage The total storage that is occupied by all MaxCompute tables within the current Alibaba Cloud account.
    Total APIs The total number of APIs that are created based on the MaxCompute data sources in the current region within the current Alibaba Cloud account.
    Note For more information, see Configure a data source.
    Storage trend chart The offline statistics on the trend of storage usage.

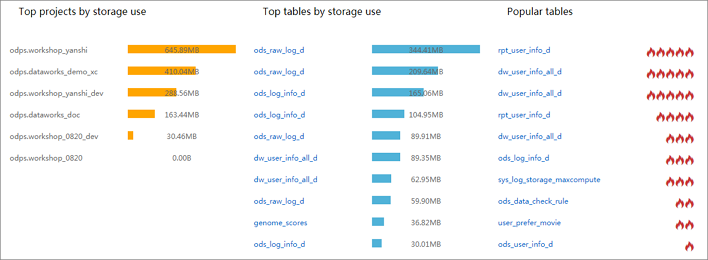

    Top Projects by Table Storage The top MaxCompute projects that occupy the most storage space within the current Alibaba Cloud account.
    Top Tables by Occupied Storage The top MaxCompute tables that occupy the most storage space within the current Alibaba Cloud account. You can click a table name to go to the details page of the table.
    Note The logical storage space that is occupied by projects and tables is calculated in a T+1 manner. The numbers next to the project and table names indicate the sizes of the occupied logical storage space. The project storage volume includes not only the table storage volume but also the storage volumes of resources, data in the recycle bin, and other system files. Therefore, the project storage volume is larger than the table storage volume.

    You are charged for the logical storage volume instead of the physical storage volume of a table.

    Most Frequently Used Tables The most frequently referenced MaxCompute tables within the current Alibaba Cloud account. You can click a table name to go to the details page of the table.
