To use Anti-DDoS Pro or Anti-DDoS Premium to protect your website service, you must first add the domain name you want to protect and then add a traffic forwarding rule in the Anti-DDoS Pro or Anti-DDoS Premium console.

Prerequisites

An Anti-DDoS Pro or Anti-DDoS Premium instance is available. For more information, see Purchase mitigation plans for Anti-DDoS Pro and Anti-DDoS Premium.

Background information

Notice In the top navigation bar of the Anti-DDoS Pro or Anti-DDoS Premium console, you can select the Mainland China or Outside Mainland China region to switch between the Anti-DDoS Pro and Anti-DDoS Premium consoles. Then, you can configure and manage Anti-DDoS Pro or Anti-DDoS Premium instances based on your business requirements. Make sure that you select the required region when you use Anti-DDoS Pro or Anti-DDoS Premium.

This topic uses Anti-DDoS Pro as an example to describe this specific operation. If you use Anti-DDoS Premium, see Add a website.

Procedure

  1. Log on to the Anti-DDoS Pro console.
  2. In the top navigation bar, select Mainland China.
  3. In the left-side navigation pane, choose Provisioning > Website Config.
  4. On the Website Config page, click Add Domain.
    Note You can also import website configurations in batches. For more information, see Import the configurations of more than one website at a time.
  5. Complete the Add Domain wizard.
    1. In the Edit Site Information step, configure the parameters and click Add.
      Website configurations
      Parameter Applicable instance type Description
      Function Plan Anti-DDoS Pro and Anti-DDoS Premium The function plan of the Anti-DDoS Pro or Anti-DDoS Premium instance that you want to use. Valid values: Standard and Enhanced.
      You can move the pointer over the Function plan description icon next to Function Plan to view the differences between Standard and Enhanced function plans. Function plan
      Instance Anti-DDoS Pro and Anti-DDoS Premium The Anti-DDoS Pro or Anti-DDoS Premium instance that you want to use. You can associate a maximum of eight instances with a domain name. The instances associated with the domain name must use the same function plan.

      Available instances appear after you configure Function Plan. If no instances appear, no instances use the function plan that you select. In this case, you can purchase an instance or upgrade the Standard function plan to the Enhanced function plan. For more information, see Upgrade the specifications of an Anti-DDoS Pro or Anti-DDoS Premium instance.

      Domain Anti-DDoS Pro and Anti-DDoS Premium The domain name of the website that you want to protect. The domain name must meet the following requirements:
      • It can contain letters, digits, and hyphens (-). It must start with a letter or a digit.
      • It can be a wildcard domain name, such as *.aliyun.com. If you enter a wildcard domain name, Anti-DDoS Pro or Anti-DDoS Premium protects all subdomains of the wildcard domain name.
      • If you configure a wildcard domain name and an exact domain name, the forwarding rules and protection policies of the exact match domain take precedence. For example, if you configure *.aliyun.com and www.aliyun.com, the forwarding rules and protection policies of www.aliyun.com take precedence.
      Protocol Anti-DDoS Pro and Anti-DDoS Premium The type of the protocol that the website uses. Valid values:
      • HTTP: By default, this protocol is selected.
      • HTTPS: By default, this protocol is selected. If the website uses HTTPS, you must select HTTPS and upload an HTTPS certificate file after you save the website configurations. For more information, see Upload an HTTPS certificate.
      • Websocket
      • Websockets
      If you select HTTPS, you can click Advanced Settings to display the following options. Advanced settings
      • Enforce HTTPS Routing: If the website supports both HTTP and HTTPS, this feature is available. If you enable this feature, all HTTP requests to access the website are redirected to HTTPS requests on the standard port 443.
        Notice
        • You must select HTTP before you enable the feature.
        • If you select Websocket, this feature is unavailable.
        • If you access the website over HTTP on a non-standard port and enable this feature, all HTTP requests are redirected to HTTPS requests on the standard port 443.
      • Enable HTTP: If the website does not support HTTPS, this feature is available. If this feature is enabled, all HTTPS requests are redirected to HTTP requests and forwarded to origin servers. This feature can redirect WebSockets requests to WebSocket requests. Requests are redirected over the standard port 80.
        Notice
        • If the website does not support HTTPS, turn on Enable HTTP.
        • If you access the website over HTTPS on a non-standard port and enable this feature, all HTTPS requests are redirected to HTTP requests on the standard port 80.
      • Enable HTTP/2: After you turn on the switch, the protocol type is HTTP/2.
      Server IP Anti-DDoS Pro and Anti-DDoS Premium The address type of the origin server. You must enter the address of the origin server. The following types are supported:
      • Origin Server IP: the IP address of the origin server. You can enter a maximum of 20 IP addresses. If you enter more than one IP address, separate them with commas (,).

        For example, if the origin server is hosted on an Elastic Compute Service (ECS) instance, enter the public IP address of the ECS instance. If the ECS instance is associated with a Server Load Balancer (SLB) instance, enter the public IP address of the SLB instance. If your origin server is not deployed on Alibaba Cloud, enter the public IP address that you obtain when you ping the domain name.

      • Origin Server Domain: Select this option when you deploy a proxy service, such as Web Application Firewall (WAF), between the origin server and Anti-DDoS Pro or Anti-DDoS Premium. You must also enter the address of the proxy, such as a CNAME. You can enter a maximum of 10 domain names. If you enter more than one domain name, separate them with line breaks.

        For example, if you want to use Anti-DDoS Pro or Anti-DDoS Premium together with WAF, select Origin Server Domain and enter the CNAME that WAF assigns. This provides enhanced protection for the website. For more information, see Use WAF with Anti-DDoS Pro or Anti-DDoS Premium.

      If you enter more than one IP address or domain name, Anti-DDoS Pro or Anti-DDoS Premium uses IP hash load balancing to forward website traffic to the origin servers. After you save the website configurations, you can modify the load balancing algorithm. For more information, see Back to the origin settings in this topic.

      Server Port Anti-DDoS Pro and Anti-DDoS Premium The server port that you specify based on the selected protocol.
      Note The forwarding port must be the same as the port of the origin server.
      • By default, if you select HTTP or Websocket, the standard port 80 is used.
      • By default, if you select HTTPS or Websockets, the standard port 443 is used.
        Note HTTP/2 uses the same port as HTTPS.

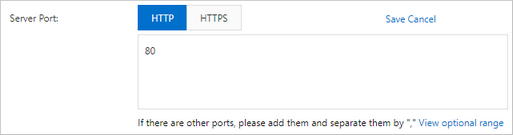

      To add custom ports, you can click Custom and enter ports other than the default ports. To view the ports that you can enter, click View optional range.
      • Instances that use the Standard function plan support HTTP or WebSocket ports 80 and 8080, and HTTPS or WebSockets ports 443 and 8443.
      • Instances that use the Enhanced function plan support specific non-standard ports, in addition to the standard HTTP port 80 and HTTPS port 443. For more information, see Specify non-standard ports for protection.
      Custom ports
      Cname Reuse Anti-DDoS Premium Specifies whether to enable CNAME reuse. If more than one website is hosted on the same server, this feature is available. After CNAME reuse is enabled, you need only to map the domain names hosted on the same server to the CNAME that is assigned by Anti-DDoS Premium. For more information, see Use the CNAME reuse feature.
    2. In the Complete step, perform the subsequent operations as instructed.
      Notice To enable Anti-DDoS Pro or Anti-DDoS Premium to protect the website, you must complete the subsequent operations. For more information, see What to do next.
      Complete configurations

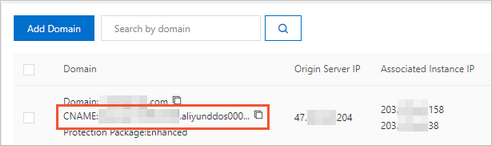

    3. Click Websites List to view the domain name that you added and the CNAME that is assigned by Anti-DDoS Pro or Anti-DDoS Premium in the website list.
    After you complete the Add Domain wizard, you can perform the following operations on the Website Config page: CNAME
    • Remarks: Click the Pencil icon icon next to Remark to add remarks that help identify the website configurations.
    • Edit or Delete: Modify or delete the website configurations that you added.
      Note You can click Edit in the Actions column. On the page that appears, you can turn on Getting source port from the real customer to obtain the actual source ports of clients. You can mark the back-to-origin requests that Anti-DDoS Pro or Anti-DDoS Premium forwards to the origin server by using custom HTTP headers. For more information, see Mark back-to-origin requests.
    • Configure DNS Settings: If you purchase a paid edition of Alibaba Cloud DNS, you can enable NS Access Mode. This way, the system automatically changes the DNS record of the domain name and redirects traffic to Anti-DDoS Pro or Anti-DDoS Premium. For more information, see Enable NS Mode Access to protect a website.
    • Mitigation Settings: Click the Protection for Website Services tab and modify the feature settings.

      After you add the website, Intelligent Protection and Frequency Control are enabled by default. You can enable more features and modify protection rules for the website on the Protection for Website Services tab. For more information, see Use the intelligent protection feature.

    • Back to the origin settings: If the website that you add to Anti-DDoS Pro or Anti-DDoS Premium resides on more than one origin server, you can modify the load balancing algorithm for back-to-origin traffic. The following load balancing algorithms are supported:
      • IP hash: redirects requests from the same IP address to the same origin server by using a hashing algorithm. This is the default algorithm.
      • Round Robin: redirects requests to each of the origin servers in turn. If you use this algorithm, you can specify a weight for each server based on server performance.

        Valid values: 1 to 100. Default value: 100. A server with a higher weight receives more requests.

      • Least time: uses the intelligent DNS resolution feature to minimize the latency when requests are forwarded from Anti-DDoS Pro or Anti-DDoS Premium instances to origin servers.
      Back-to-origin settings

Result

Anti-DDoS Pro assigns a CNAME record to the domain name. You only need to map the DNS record of the domain name to the CNAME record of the Anti-DDoS Pro instance to reroute inbound traffic to the instance for traffic scrubbing.
