This topic describes how to configure a progress bar to display query results.

Background information

The progress bar shows the percentage of the actual value of a field to the maximum value of the field. You can configure the properties of the progress bar to adjust its style and set display rules.

Each progress bar consists of the following elements:
  • Actual value
  • Unit (optional)
  • Total value

Procedure

  1. Log on to the Log Service console.
  2. In the Projects section, click the name of the project that you want to manage.
  3. Choose Log Storage > Logstores, and then click the Logstore that you want to manage.
  4. Enter a query statement in the search box, specify a time range, and then click Search & Analyze.
  5. On the Graph tab, click the Progress bar - 001 icon.
  6. On the Properties tab, configure the properties of the progress bar.
    Parameter Description
    Actual Value The actual value in the chart. By default, data in the first row of the specified column is displayed.
    Unit The unit of the value in the progress bar.
    Total Value The maximum value indicated by the progress bar. Default value: 100. After you set the value, the ratio of the actual value to the maximum value is displayed on the progress bar.
    Maximum Value Column The maximum value in the specified column. If you turn on the Use Query Results switch, Total Value is replaced by Maximum Value Column. Then, you can select the maximum value from the query results for this parameter.
    Use Query Results If you turn on the Use Query Results switch, Total Value is replaced by Maximum Value Column. Then, you can select the maximum value from the query results for this parameter.
    Edge Shape The edge shape of the progress bar.
    Vertical Display Specifies whether to display the progress bar in vertical display mode.
    Font Size The font size of the value in the progress bar.
    Thickness The thickness of the progress bar.
    Background Color The background color of the progress bar.
    Font color The font color of the value in the progress bar.
    Default Color The default color of the progress bar.
    Color Display Mode The display mode of the progress bar. Valid values: Default Color, Gradient, and Display by Rule.
    Start Color The start color of the progress bar. This parameter is available if Gradient is selected for Color Display Mode.
    End Color The end color of the progress bar. This parameter is available if Gradient is selected for Color Display Mode.
    Display Color The display color of the progress bar. This parameter is available if Display by Rule is selected for Color Display Mode.
    Note The value of Actual Value is compared with that of Threshold based on the condition specified by Operator. If the actual value matches the condition specified by Operator, the progress bar is displayed in the color specified by Display Color. Otherwise, the progress bar is displayed in the default color.
    Operator The condition that is used to specify the color of the progress bar. This parameter is available if Display by Rule is selected for Color Display Mode.
    Threshold The threshold that is used to specify the color of the progress bar. This parameter is available if Display by Rule is selected for Color Display Mode.

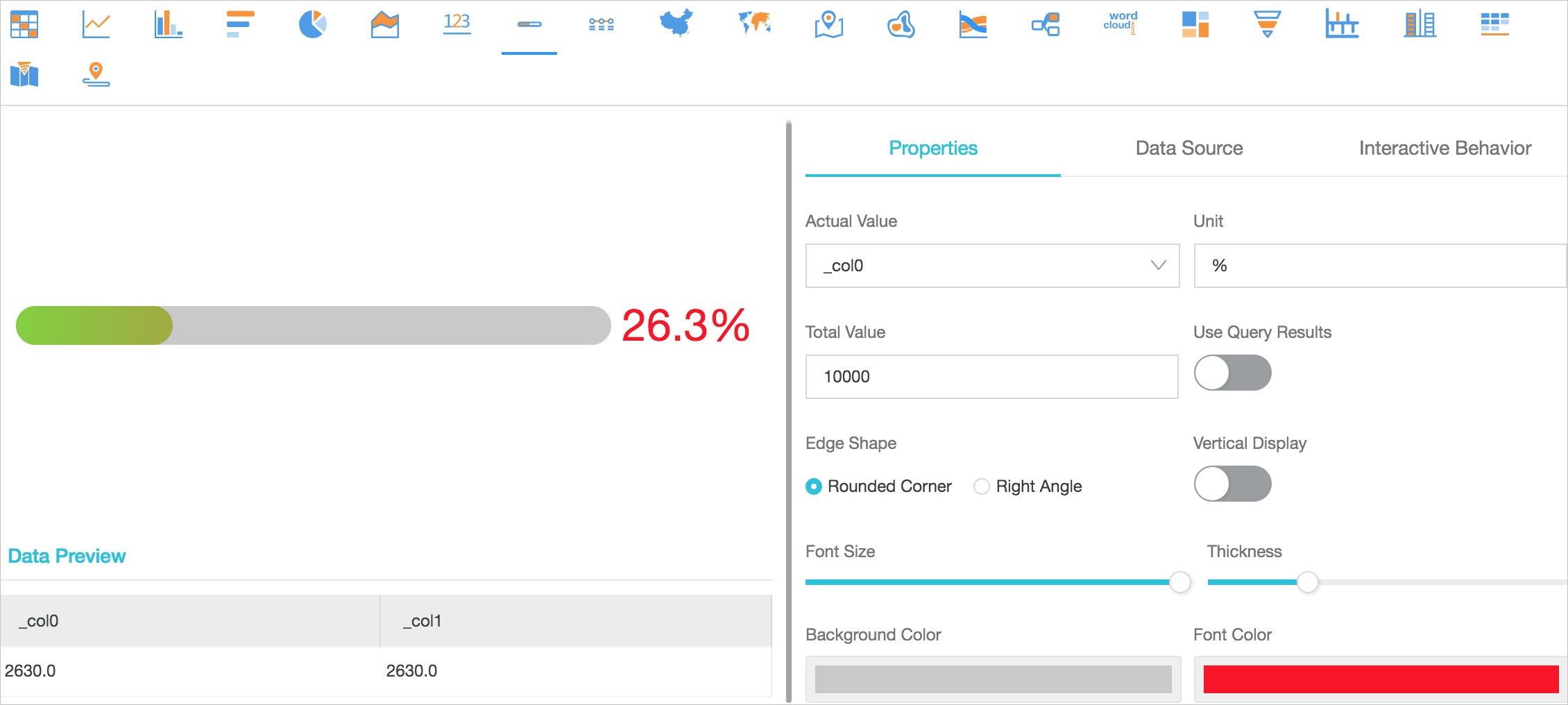

Examples

To view the percentage of a metric or the proportion of data, you can execute the following query statement:
* | select diff[1],diff[2] from (select compare( pv , 86400) as diff from (select count(1) as pv from log))

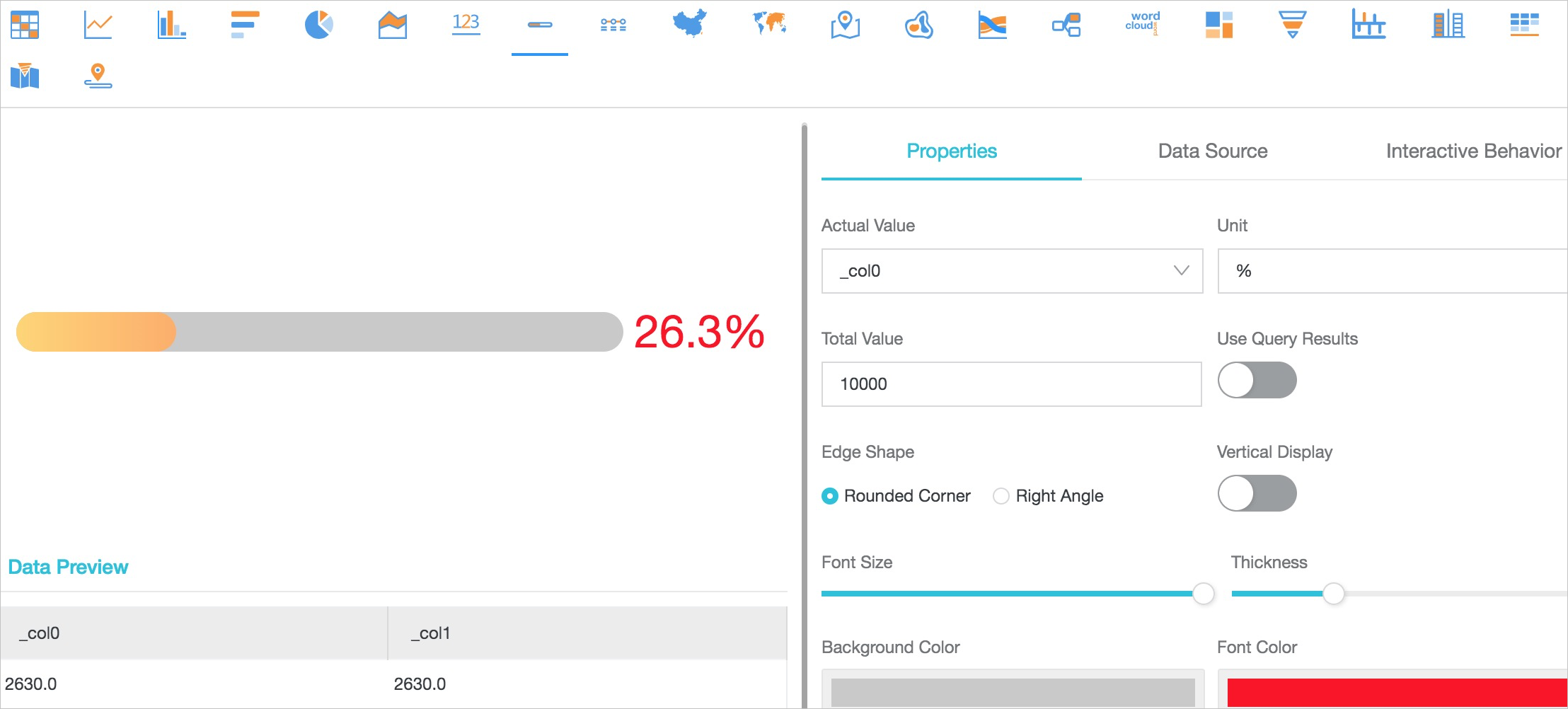

If you select Display by Rule for Color Display Mode, colors are dynamically displayed based on the specified rule. If the conditions of a rule are not matched, the default color is displayed.256
