This topic shows you how to view sensitive data detected by Data Security Center (DSC) in Alibaba Cloud services such as Object Storage Service (OSS), ApsaraDB RDS, and MaxCompute.

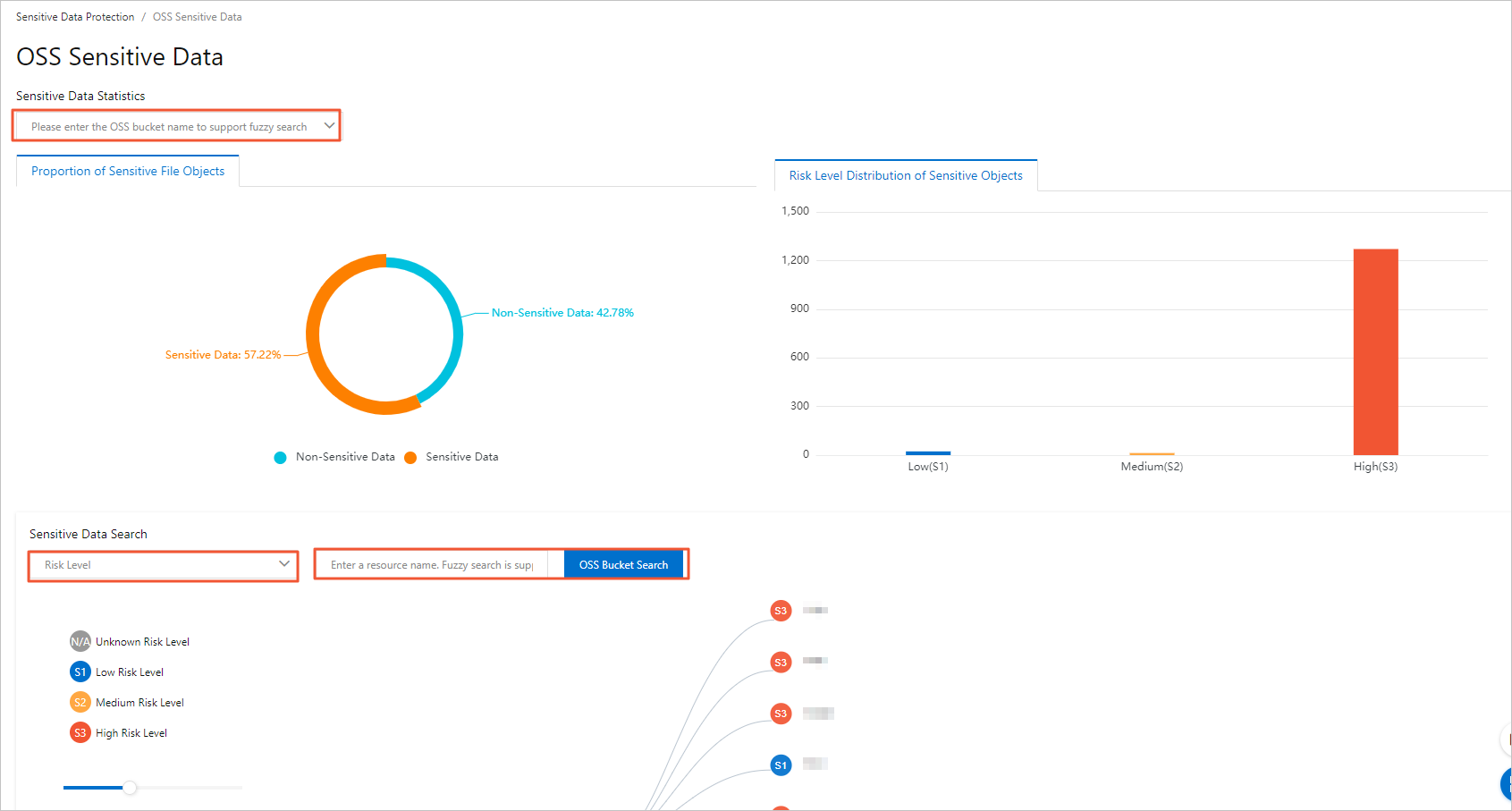

View sensitive data detected in OSS

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the OSS tab, find the OSS bucket whose details you want to view and click File details in the Actions column.

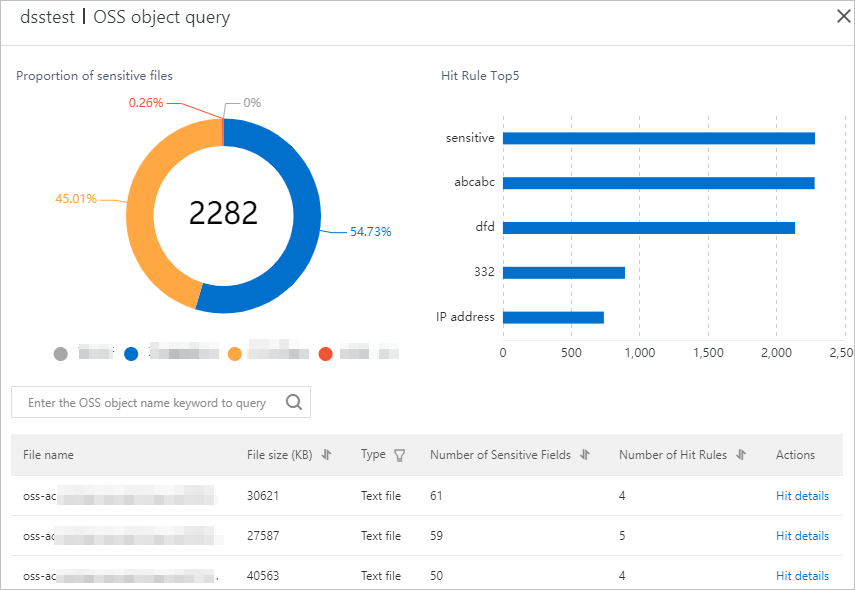

  4. In the OSS object query panel, you can view the proportion of sensitive objects at each risk level, top five rules that are hit, and the list of objects with sensitive data detected.
    Details of sensitive data detected in OSS
    • Proportions of sensitive objects

      In the Proportion of sensitive files section, you can view a pie chart that displays the numbers and proportions of sensitive objects at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of objects with sensitive data detected

      In the object list, you can view the information about the objects with sensitive data detected, such as the object name, size, type, and number of sensitive fields detected in the object. You can also click Hit details in the Actions column for an object to view the details of the sensitive data detection rules that the object hits.

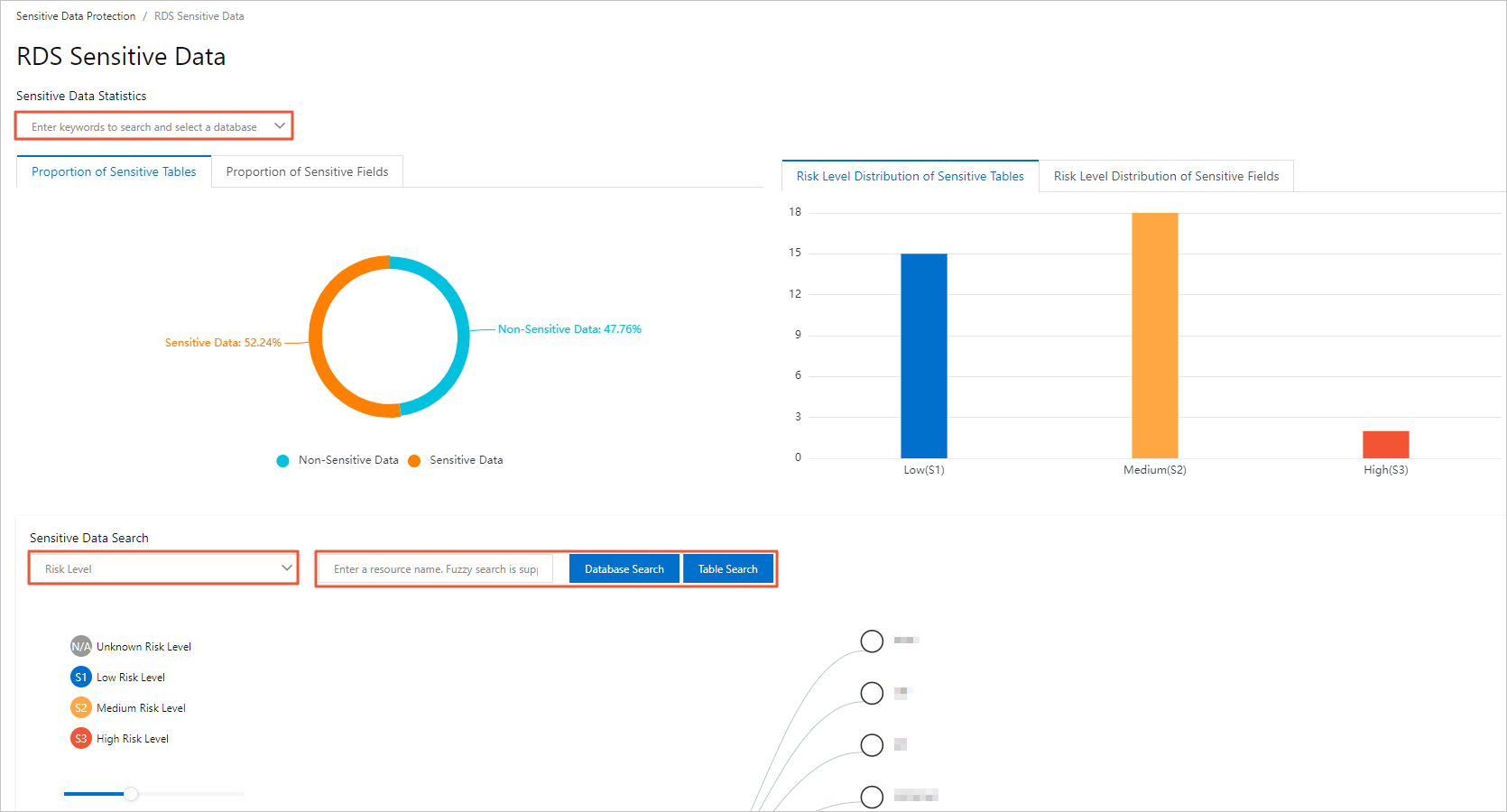

View sensitive data detected in ApsaraDB RDS

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the Sensitive data assets page, click the RDS tab.
  4. On the RDS tab, find the ApsaraDB RDS database whose details you want to view and click Table details in the Actions column.

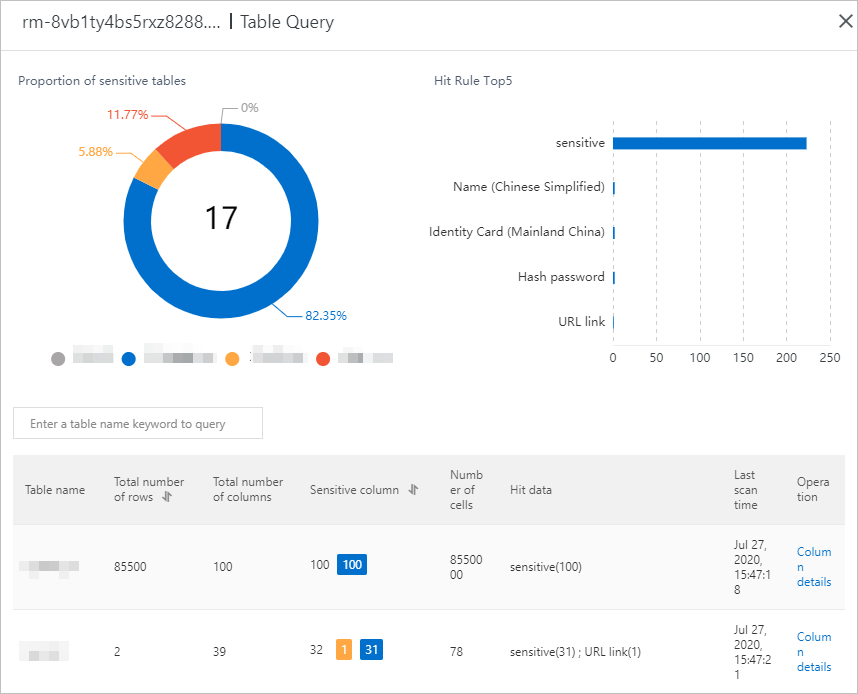

  5. In the Table Query panel, you can view the proportions of sensitive tables, top five rules that are hit, and the list of tables with sensitive data detected.
    Details of sensitive data detected in ApsaraDB RDS
    • Proportions of tables

      In the Proportion of sensitive tables section, you can view a pie chart that displays the numbers and proportions of tables at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of tables with sensitive data detected

      In the table list, you can view the information about the tables with sensitive data detected. For example, you can view the table name, total number of rows, total number of fields, number of sensitive fields, and rules that are hit. You can also click Column details in the Operation column to view the field details, including the fields that hit sensitive data detection rules and the risk levels of the sensitive fields.

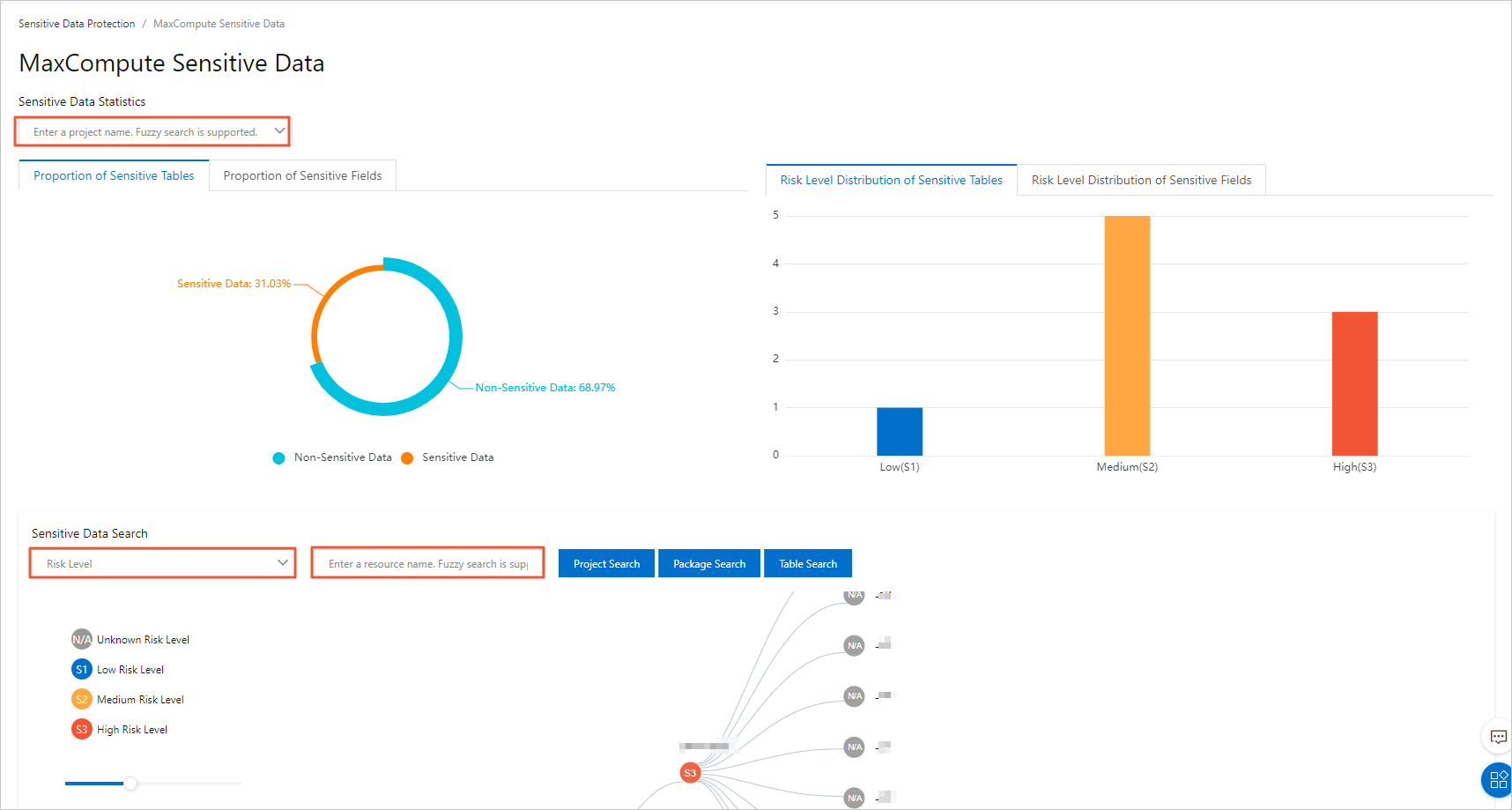

View sensitive data detected in MaxCompute

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the Sensitive data assets page, click the MaxCompute tab.
  4. On the MaxCompute tab, find the MaxCompute project whose details you want to view and click Table details in the Actions column.
  5. In the Table Query panel, you can view the proportions of sensitive tables, top five rules that are hit, and the list of tables with sensitive data detected.
    Details of sensitive data detected in ApsaraDB RDS
    • Proportions of tables

      In the Proportion of sensitive tables section, you can view a pie chart that displays the numbers and proportions of tables at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of tables with sensitive data detected

      In the table list, you can view the information about the tables with sensitive data detected. For example, you can view the table name, total number of rows, total number of fields, number of sensitive fields, and rules that are hit. You can also click Column details in the Operation column to view the field details, including the fields that hit sensitive data detection rules and the risk levels of the sensitive fields.

View sensitive data detected in self-managed databases hosted on ECS instances

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the Sensitive data assets page, click the ECS self-built database tab.
  4. On the ECS self-built database tab, find the database whose details you want to view and click Table details in the Actions column.
  5. In the Table Query panel, you can view the proportions of sensitive tables, top five rules that are hit, and the list of tables with sensitive data detected.
    Details of sensitive data detected in ApsaraDB RDS
    • Proportions of tables

      In the Proportion of sensitive tables section, you can view a pie chart that displays the numbers and proportions of tables at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of tables with sensitive data detected

      In the table list, you can view the information about the tables with sensitive data detected. For example, you can view the table name, total number of rows, total number of fields, number of sensitive fields, and rules that are hit. You can also click Column details in the Operation column to view the field details, including the fields that hit sensitive data detection rules and the risk levels of the sensitive fields.

View sensitive data detected in DRDS

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the Sensitive data assets page, click the DRDS tab.
  4. On the DRDS tab, find the database whose details you want to view and click Table details in the Actions column.
  5. In the Table Query panel, you can view the proportions of sensitive tables, top five rules that are hit, and the list of tables with sensitive data detected.
    Details of sensitive data detected in ApsaraDB RDS
    • Proportions of tables

      In the Proportion of sensitive tables section, you can view a pie chart that displays the numbers and proportions of tables at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of tables with sensitive data detected

      In the table list, you can view the information about the tables with sensitive data detected. For example, you can view the table name, total number of rows, total number of fields, number of sensitive fields, and rules that are hit. You can also click Column details in the Operation column to view the field details, including the fields that hit sensitive data detection rules and the risk levels of the sensitive fields.

View sensitive data detected in PolarDB

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the Sensitive data assets page, click the PolarDB tab.
  4. On the PolarDB tab, find the database whose details you want to view and click Table details in the Actions column.
  5. In the Table Query panel, you can view the proportions of sensitive tables, top five rules that are hit, and the list of tables with sensitive data detected.
    Details of sensitive data detected in ApsaraDB RDS
    • Proportions of tables

      In the Proportion of sensitive tables section, you can view a pie chart that displays the numbers and proportions of tables at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of tables with sensitive data detected

      In the table list, you can view the information about the tables with sensitive data detected. For example, you can view the table name, total number of rows, total number of fields, number of sensitive fields, and rules that are hit. You can also click Column details in the Operation column to view the field details, including the fields that hit sensitive data detection rules and the risk levels of the sensitive fields.

View sensitive data detected in Tablestore

OTS refers to Tablestore.

  1. Log on to the DSC console.
  2. In the left-side navigation pane, choose Sensitive data discovery > Sensitive data assets.
  3. On the Sensitive data assets page, click the OTS tab.
  4. On the OTS tab, find the Tablestore instance whose details you want to view and click Table details in the Actions column.
  5. In the Table Query panel, you can view the proportions of sensitive tables, top five rules that are hit, and the list of tables with sensitive data detected.
    Details of sensitive data detected in ApsaraDB RDS
    • Proportions of tables

      In the Proportion of sensitive tables section, you can view a pie chart that displays the numbers and proportions of tables at the low, medium, high, and unknown risk levels.

    • Top five rules that are hit

      In the Hit Rule Top5 section, you can view the top five rules that are hit and the number of times that each rule is hit.

    • List of tables with sensitive data detected

      In the table list, you can view the information about the tables with sensitive data detected. For example, you can view the table name, total number of rows, total number of fields, number of sensitive fields, and rules that are hit. You can also click Column details in the Operation column to view the field details, including the fields that hit sensitive data detection rules and the risk levels of the sensitive fields.
