:Test results of ApsaraDB RDS instances that run MySQL 5.7

Last Updated:Oct 19, 2023

This topic describes the performance test results of general-purpose ApsaraDB RDS instances that run MySQL 5.7.

Note

Test environment

In this stress testing, SysBench is used to test the performance of five RDS instances that use local disks. These RDS instances use different instance types.

  • Instance types: rds.mysql.t1.small, rds.mysql.s2.large, rds.mysql.m1.medium, rds.mysql.c1.xlarge, and rds.mysql.c2.xlarge

  • Instance family: general-purpose

  • RDS edition: RDS High-availability Edition

  • Storage type: local disk

Configurations

The performance is significantly affected by the data volume, stress testing duration, and parameter settings. The following configurations are used for this stress testing:

  • Data volume: The data volume and the number of tables on each RDS instance that you want to test are different. Therefore, the test results for some of the RDS instances may be similar.

  • Stress testing duration: The stress testing duration is 60 seconds for all the RDS instances.

  • Parameter settings:

    • sync_binlog=1 and innodb_flush_log_at_trx_commit=1: ensure that the data submitted each time is completely written to disks.

    • rpl_semi_sync_master_enabled=ON: enables the semi-synchronous mode for an RDS instance to ensure data consistency between the primary and secondary RDS instances.

    • Performance_schema=ON: automatically enables Performance Schema for an RDS instance that uses an instance type with a memory size greater than or equal to 8 GB.

      Note

      These parameter settings are contained in the standard parameter template for ApsaraDB RDS for MySQL. If the standard parameter template is applied to all the RDS instances, data consistency is maximized, and the test environment is more similar to the production environment.

Test result

Two types of queries can be used to perform stress testing. You can determine the type of stress testing based on your data volume.

  • Stress testing for cache-based queries: This type of stress testing is suitable for scenarios that involve a small amount of data. You can store all data in the InnoDB buffer pool for access. For more information about how to change the size of the InnoDB buffer pool, see Change the size of the InnoDB buffer pool for an ApsaraDB RDS for MySQL instance.

  • Stress testing for disk I/O-based queries: This type of stress testing is suitable for scenarios that involve a large amount of data. You can store only the most frequently used data in the InnoDB buffer pool for access. During the stress testing, data is read from or written to disks, and the InnoDB buffer pool is updated.

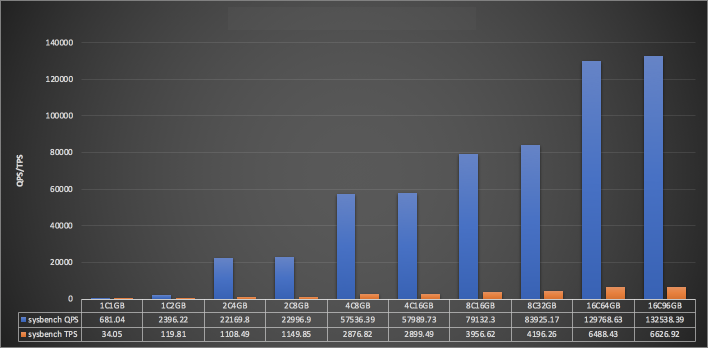

Type 1: Stress testing for cache-based queries

内存命中型

Specification (instance type)

Data volume in a single table

Number of tables

Maximum number of connections

IOPS

Number of SysBench threads

Number of SysBench reads

Number of SysBench writes

1 core, 1 GB

(rds.mysql.t1.small)

25,000

32

300

600

8

539,252

154,072

2 cores, 4 GB

(rds.mysql.s2.large)

25,000

32

1,200

2,000

8

1,145,200

327,200

4 cores, 16 GB

(rds.mysql.m1.medium)

25,000

128

4,000

7,000

16

2,224,362

635,532

8 cores, 32 GB

(rds.mysql.c1.xlarge)

25,000

128

8,000

12,000

32

3,747,898

1,070,828

16 cores, 64 GB

(rds.mysql.c2.xlarge)

25,000

128

16,000

14,000

64

6,779,248

1,936,928

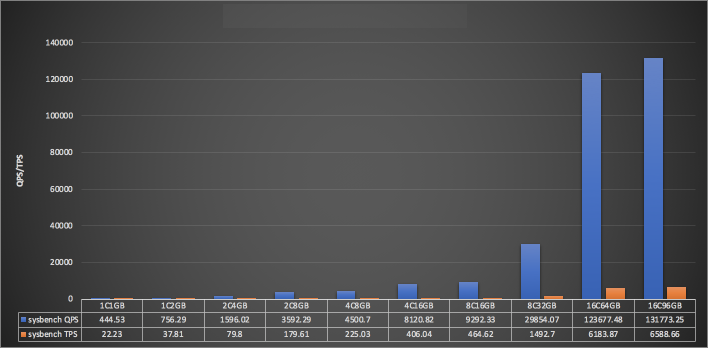

Type 2: Stress testing for disk I/O-based queries

磁盘I/O型

Specification (instance type)

Data volume in a single table

Number of tables

Maximum number of connections

IOPS

Number of SysBench threads

Number of SysBench reads

Number of SysBench writes

1 core, 1 GB

(rds.mysql.t1.small)

80,000

32

300

600

8

412,356

117,816

2 cores, 4 GB

(rds.mysql.s2.large)

80,000

32

1,200

2,000

8

1,074,525

307,036

4 cores, 16 GB

(rds.mysql.m1.medium)

800,000

128

4,000

7,000

16

1,645,154

470,044

8 cores, 32 GB

(rds.mysql.c1.xlarge)

800,000

128

8,000

12,000

32

3,283,966

938,276

16 cores, 64 GB

(rds.mysql.c2.xlarge)

800,000

128

16,000

14,000

64

6,233,850

1,781,100
