Introduction

Until now we have been focusing on adding new functionalities to our application (HTTPS and centralized logs). However, in doing so we have slowed down substantially our CI/CD pipeline, as it now takes about one hour to complete the full process.

The goal of this tutorial part is to focus on this slow pipeline problem and to find ways to accelerate it.

Note You can find the source code containing the modifications described in this part in the folders sample-app/version6 and deployment-toolbox/version1.

Deployment Docker image

The slowest stage of our pipeline is the one responsible for deployment, and its first task is to download and install tools. It usually takes several minutes to complete and unnecessarily wastes resources such as network bandwidth.

A way to speed up this first task is to create our own Docker image, and then use it in our pipeline.

Docker repository creation

The first step is to create a repository through the Container Registry service to host our own Docker images. Open a web browser tab and execute the following instructions:

  1. Log on to the Container Registry console.
  2. If necessary, select your region on top of the page.
  3. Click Namespace from the left-side navigation pane.
  4. Click Create Namespace.
  5. In the popup form, set a field value corresponding to your domain name such as my-sample-domain-xyz (replace dots . by dashes -) and click Confirm. Note that we use the domain name because namespaces must be unique among all accounts in Alibaba Cloud.
  6. Click Repositories from the left-side navigation pane.
  7. Click Create Repository.
  8. Fill the popup form with the following values:
    • Region = your region
    • Namespace = your namespace such as my-sample-domain-xyz
    • Repository Name = deployment-toolbox
    • Summary = Ubuntu with deployment tools (Terraform, Packer, and so on)
    • Repository Type = Private
  9. Click Next.
  10. Select Local Repository and click Create Repository.

We then need to create a RAM user in order to let Docker to access to our repository:

  1. Log on to the RAM console.

  2. Log on to the RAM console.

  3. Copy the URL next to RAM User Logon Link. We will use it later.
  4. Click Users from the left-side navigation pane.
  5. Click Create User.
  6. In the pop-up window form set sample-app-gitlab in the User Name field and click OK.
  7. The page should refresh itself and display our sample-app-gitlab user. Click Authorize on the right.
  8. In the new pop-up window, select the policy name AliyunContainerRegistryFullAccess and click the button with an arrow pointing to the right.
  9. Click OK to close the pop-up window.
  10. Click Manage on the right of the user sample-app-gitlab.
  11. Click Enable Console Logon.
  12. In the pop-up form, enter twice the same password, uncheck the checkbox On your next logon you must reset the password, and click OK.

We now need to set the Docker password for this RAM user:

  1. Open a private web browser window and browse to the RAM User Logon Link URL you copied earlier (it should be something like http://signin-intl.aliyun.com/5939306421830******/login.htm).
  2. Login with your ram username and password (the username should be something like sample-app-gitlab@5939306421******. The password is the one you set earlier.
  3. Log on to the Container Registry console.
  4. Click Reset Docker Login Password.
  5. Set a new password and click OK.
  6. Close your private web browser window.

If you have Docker installed on your computer, you can test your configuration like this:

  1. Log on to the Container Registry console (with your normal account).
  2. If necessary, select your region on top of the page.
  3. The repository deployment-toolbox should be displayed. Move your mouse cursor on top of the icon that looks like an arrow going into a box under the Repository Address column. A pop-up window should open with multiple URLs:

  4. Click the first address (next to Internet) to copy it (it should be like registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox).
  5. Open a terminal and type:
    # Test your repository configuration
    docker login --username=sample-app-gitlab@593930642183**** registry-intl.ap-southeast-1.aliyuncs.com

    This command should prompt for the password you set earlier when you clicked Reset Docker Login Password. If the configuration is good, the command should print Login Succeeded.

    Note
    • The --username argument should be sample-app-gitlab@your-user-id-or-enterprise-alias. You can find your user ID or enterprise alias inside the RAM User Logon Link you copied earlier (for example, if the link is http://signin-intl.aliyun.com/593930642183****/login.htm, then the user ID is 593930642183****).
    • The next argument is the domain name of your repository address (for example, if the repository address is registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox, then the argument is registry-intl.ap-southeast-1.aliyuncs.com).

Docker image project

The next step is to create a new GitLab project where we will host our Dockerfile:

  1. Open GitLab (the URL must be like https://gitlab.my-sample-domain.xyz/).
  2. In the home page, click New project.
  3. Fill the new form with the following information:
    • Project name = deployment-toolbox
    • Project slug = deployment-toolbox
    • Visibility Level = Private
  4. Click Create project.
  5. In the new page, copy the URL for git (such asgit@gitlab.my-sample-domain.xyz:marcplouhinec/deployment-toolbox.git).

Open a terminal on your computer and run:

# Go to the projects directory
cd projects

# Git clone our new project (adapt the URL)
git clone git@gitlab.my-sample-domain.xyz:marcplouhinec/deployment-toolbox.git

# Go to the new project folder
cd deployment-toolbox

# Create our Docker image definition file
nano Dockerfile

Copy the following content into the editor:

FROM ubuntu:18.04

ENV OSSFS_VERSION=1.80.5
ENV TERRAFORM_VERSION=0.11.11
ENV PACKER_VERSION=1.3.3

# Install OSSFS
RUN apt-get -y update
RUN apt-get -y install gdebi-core wget unzip libssl1.0.0
RUN wget "https://github.com/aliyun/ossfs/releases/download/v${OSSFS_VERSION}/ossfs_${OSSFS_VERSION}_ubuntu16.04_amd64.deb"
RUN gdebi -n "ossfs_${OSSFS_VERSION}_ubuntu16.04_amd64.deb"

# Install Terraform
RUN wget "https://releases.hashicorp.com/terraform/${TERRAFORM_VERSION}/terraform_${TERRAFORM_VERSION}_linux_amd64.zip"
RUN unzip "terraform_${TERRAFORM_VERSION}_linux_amd64.zip" -d /usr/local/bin/

# Install Packer
RUN wget "https://releases.hashicorp.com/packer/${PACKER_VERSION}/packer_${PACKER_VERSION}_linux_amd64.zip"
RUN unzip "packer_${PACKER_VERSION}_linux_amd64.zip" -d /usr/local/bin/

# Install Python packages
RUN apt-get -y install python3-pip
RUN pip3 install -U aliyun-log-python-sdk

CMD ["/bin/bash"]

Save and quit by pressing CTRL + X. If you have Docker on your machine, you can test this Dockerfile with the following commands:

# Build the Docker image
docker build -t deployment-toolbox:latest .

# Create a container with our new image
docker run -it deployment-toolbox:latest

The last command executes Bash inside the container. Let’s check that our tools are correctly installed:

# Check OSSFS version
ossfs --version

# Check Terraform version
terraform version

# Check Packer version
packer version

# Check our Python dependency version
pip3 show aliyun-log-python-sdk

# Exit and kill the container
exit

Let’s create the GitLab pipeline definition file:

# Create the pipeline definition file
nano .gitlab-ci.yml

Put the following text into this file:

image: docker:stable

variables:
  DOCKER_HOST: tcp://docker:2375/
  DOCKER_DRIVER: overlay2
  REGISTRY_USERNAME: sample-app-gitlab@your-user-id-or-enterprise-alias
  REGISTRY_PASSWORD: your-docker-login-password
  REGISTRY_URL: registry-intl.ap-southeast-1.aliyuncs.com
  IMAGE_URL: registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox

services:
  - docker:dind

stages:
  - build

build:
  stage: build
  before_script:
    - docker login -u $REGISTRY_USERNAME -p $REGISTRY_PASSWORD $REGISTRY_URL
  script:
    - docker pull $IMAGE_URL:latest || true
    - docker build --cache-from $IMAGE_URL:latest --tag $IMAGE_URL:$CI_PIPELINE_IID --tag $IMAGE_URL:latest .
    - docker push $IMAGE_URL:$CI_PIPELINE_IID
    - docker push $IMAGE_URL:latest

Save and quit with CTRL + X.

Before we commit and push our changes to GitLab, we first need to add new variables:

  1. Open your web browser tab with GitLab. The deployment-toolbox project should be displayed.
  2. In the left-side navigation pane, select Settings > CI/CD.
  3. Expand the Variables panel, and create the following variables:
    • REGISTRY_USERNAME = the username you already used in the previous section when you have tested your configuration with docker login.
    • REGISTRY_PASSWORD = the password is the one you set when you clicked Reset Docker Login Password.
    • REGISTRY_URL = the domain name of your repository address.
    • IMAGE_URL = your repository address.
  4. Click Save variables.

Let’s commit the changes to GitLab:

# Check the files to commit
git status

# Add the new files
git add .gitlab-ci.yml
git add Dockerfile

# Commit and push to GitLab
git commit -m "Create the Dockerfile."
git push origin master

Check your CI/CD pipeline (for the deployment-toolbox project) and make sure there is no error.

You can also check on the Container Registry web console that the Docker image has been successfully pushed:

  1. Log on to the Container Registry console (with your normal account).
  2. Click Manage next to the deployment-toolbox repository.
  3. Click Tags from the left-side navigation pane.

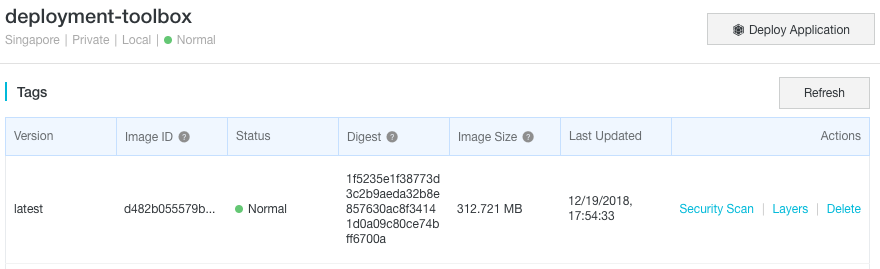

The page should display your image tags:



Pipeline update

Let’s update our pipeline in order to use our Docker image. Open your terminal and run:

# Go to the web application project folder
cd ~/projects/todolist

# Remove the tool installation scripts
rm gitlab-ci-scripts/deploy/install_tools.sh
rm gitlab-ci-scripts/deploy/install_python_packages.sh

# Edit the pipeline definition file
nano .gitlab-ci.yml

Apply the following modifications to this file:

  1. Remove TERRAFORM_VERSION: 0.11.11 and PACKER_VERSION: 1.3.3 from the variables block.
  2. In the deploy block, replace the ubuntu:18.04 image by your image; it should be something like registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox:latest.
  3. In the deploy block, remove the two scripts - ./gitlab-ci-scripts/deploy/install_tools.sh and - ./gitlab-ci-scripts/deploy/install_python_packages.sh.

Save and quit with CTRL + X.

Before we commit our changes, we should configure GitLab because our Docker repository is private:

  1. Open GitLab (the URL must be like https://gitlab.my-sample-domain.xyz/).
  2. Switch to the todolist project.
  3. In the deploy block, remove the two scripts - ./gitlab-ci-scripts/deploy/install_tools.sh and - ./gitlab-ci-scripts/deploy/install_python_packages.sh.
  4. Expand the Variables panel, and create the variable DOCKER_AUTH_CONFIG with the following content:
    "auths": { "registry-intl.ap-southeast-1.aliyuncs.com": { "auth": "3dFtcGxlLXFwcC1naXRsYWJAMTkzOTMwNjQyMTgzDMg2ODpIYW5nemhvdTEw" } } }
    Note
    • The URL registry-intl.ap-southeast-1.aliyuncs.com must be adapted to your registry domain name.
    • The auth value 3dFtcGxlLXFwcC1naXRsYWJAMTkzOTMwNjQyMTgzDMg2ODpIYW5nemhvdTEw is a base64 string build like this:
      echo -n "sample-app-gitlab@your-user-id-or-enterprise-alias:your-docker-login-password" | base64
  5. Click Save variables.

We can now commit the changes:

# Check the files to commit
git status

# Add the modified and deleted files
git add .gitlab-ci.yml
git add gitlab-ci-scripts/deploy/install_tools.sh
git add gitlab-ci-scripts/deploy/install_python_packages.sh

# Commit and push to GitLab
git commit -m "Replace the Ubuntu image by our deployment-toolbox."
git push origin master

Check your CI/CD pipeline on GitLab, the deploy stage should be slightly faster.

Parallelization

The main reason the deploy stage takes so much time is because of the creation of the VM images. Fortunately this stage can be done in parallel: after we deploy the basis infrastructure (VPC, SLB, and so on), we can create/update the web application and the certificate manager cloud resources at the same time. Open your terminal and execute the following commands:

# Go to the web application project folder
cd ~/projects/todolist

# Edit the pipeline definition file
nano .gitlab-ci.yml

Let’s start by replacing the deploy stage by deploy_basis and deploy_apps:

stages:
  - build
  - quality
  - deploy_basis
  - deploy_apps

Then split the deploy job into 3 blocks:

deploy_basis:
  stage: deploy_basis
  image: registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox:latest
  script:
    - "export ENV_NAME=$(./gitlab-ci-scripts/deploy/get_env_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export SUB_DOMAIN_NAME=$(./gitlab-ci-scripts/deploy/get_sub_domain_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export BUCKET_LOCAL_PATH=/mnt/oss_bucket"
    - "./gitlab-ci-scripts/deploy/mount_ossfs.sh"
    - "./gitlab-ci-scripts/deploy/build_basis_infra.sh"
    - "python3 ./gitlab-ci-scripts/deploy/update_logtail_config.py $ALICLOUD_ACCESS_KEY $ALICLOUD_SECRET_KEY $ALICLOUD_REGION $ENV_NAME"
    - "umount $BUCKET_LOCAL_PATH"
    - "sleep 10"
  only:
    - master
    - pre-production
    - production

deploy_webapp:
  stage: deploy_apps
  image: registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox:latest
  script:
    - "export ENV_NAME=$(./gitlab-ci-scripts/deploy/get_env_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export BUCKET_LOCAL_PATH=/mnt/oss_bucket"
    - "./gitlab-ci-scripts/deploy/mount_ossfs.sh"
    - "./gitlab-ci-scripts/deploy/build_webapp_infra.sh"
    - "umount $BUCKET_LOCAL_PATH"
    - "sleep 10"
  only:
    - master
    - pre-production
    - production

deploy_certman:
  stage: deploy_apps
  image: registry-intl.ap-southeast-1.aliyuncs.com/my-sample-domain-xyz/deployment-toolbox:latest
  script:
    - "export ENV_NAME=$(./gitlab-ci-scripts/deploy/get_env_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export SUB_DOMAIN_NAME=$(./gitlab-ci-scripts/deploy/get_sub_domain_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export BUCKET_LOCAL_PATH=/mnt/oss_bucket"
    - "./gitlab-ci-scripts/deploy/mount_ossfs.sh"
    - "./gitlab-ci-scripts/deploy/build_certman_infra.sh"
    - "umount $BUCKET_LOCAL_PATH"
    - "sleep 10"
  only:
    - master
    - pre-production
    - production

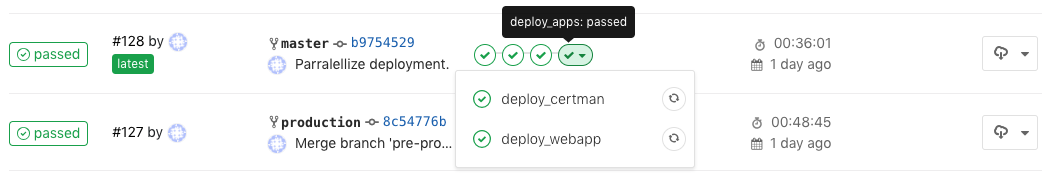

As you can see the deploy_apps stage has 2 jobs: deploy_webapp and deploy_certman. We did not change the scripts, just execute them in parallel.

Save the modifications and quit with CTRL + X.

Before we commit we need to modify the GitLab Runner configuration to allow it to run multiple jobs at the same time:

  1. Log on to the ECS console.
  2. Click Instance from the left-side navigation pane.
  3. Select your region if necessary.
  4. Search for your instance named devops-simple-app-gitlab-runner.
  5. Click Connect on the right side of your instance.
  6. The VNC console should appear. Authenticate yourself with the root user and the password you set when you configured GitLab.
  7. Edit the GitLab Runner configuration file with this command:
    nano /etc/gitlab-runner/config.toml
  8. Edit the GitLab Runner configuration file with this command: nano /etc/gitlab-runner/config.toml

  9. Save and quit by pressing CTRL + X.
  10. Restart the GitLab Runner via the following command:
    gitlab-runner restart
  11. Quit the VNC session by entering the command exit and by closing the web browser tab.

Go back to your terminal and commit the changes to GitLab:

# Check the files to commit
git status

# Add the modified file
git add .gitlab-ci.yml

# Commit and push to GitLab
git commit -m "Parallelize deployment."
git push origin master

This time the GitLab pipeline contains 4 stages with 2 parallels jobs for the last one:



As usual, you can now merge the master branch to pre-production, and then pre-production to production.
