Introduction

In this part we will finally deploy our application in the cloud!

We will create 3 environments:

  • dev.my-sample-domain.xyz - The development environment with the latest features.
  • pre-prod.my-sample-domain.xyz - The pre-production environment for testing.
  • www.my-sample-domain.xyz - The production environment for all users.

The two first sections are quite theoretical as they deal with cloud infrastructure design and development workflow.

The next two sections introduces Terraform and Packer: as you can see in the previous parts of this tutorial, creating our environment for GitLab and SonarQube with the web console is quite slow. Since we will have to create 3 nearly identical environments, we will use Terraform and Packer to speed-up the process.

In the five last sections we will use Terraform, Packer and GitLab to create an highly-available architecture that will be automatically built and updated with a new pipeline stage.

Highly available architecture

The goal is to be able to serve our web application to users even in case of hardware or network failure.

The following diagram shows a simplified view of our architecture:



As you can see we are duplicating each cloud resource into two availability zones (zone A and zone B): since these zones are independents, a problem in one zone (for example, machine/network failure) can be compensated via the other one.

Our application will run on two ECS instances. The traffic from internet is redirected thanks to a server load balancer installed in front of them.

For the data storage layer we use ApsaraDB RDS for MySQL, a managed database service that handles server installation, maintenance, automatic backup, and so on.

Note With this diagram you can understand why a stateless application is advantageous: the only place where data is shared is the database, we do not need to establish a direct link between the application servers. Moreover, if two users are modifying the same data (for example, by deleting the same item), the database will handle transactions for us, keep the data consistent and reject one user modification.

GitLab flow

Until now our development workflow was simple: modify some source code, commit it into the master branch and push it to GitLab. This is fine at the beginning (single developer, no deployment), but we need to enrich this process in order to properly manage our releases. For that GitLab Flow is a good solution: simple but rich enough for our needs.

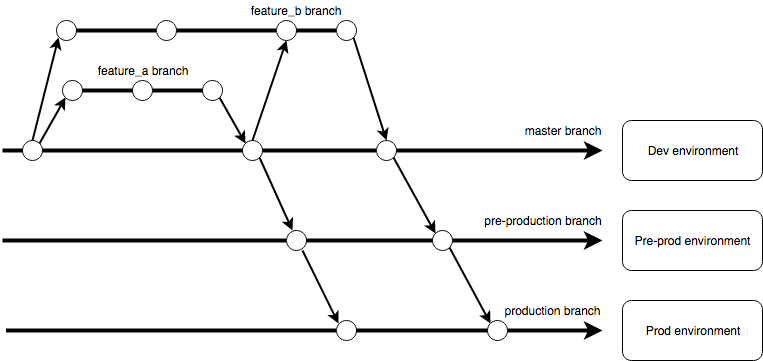

The following diagram illustrates how we will use GitLab Flow in this tutorial:



The long horizontal arrows corresponds to long-lived branches (master, pre-production and production), a circle represents a commit, and the timeline goes from the left to the right (a commit on the left is older than a commit on the right).

The two short horizontal branches on the top correspond to short-lived branches: they are used to implement new features or bug fixes. In this example, two developers work on two features in parallel (feature_a and feature_b). When the feature_a is finished, the developer emits a merge request from his branch to the master. This is usually a good time for code review: another developer can check the modifications and accept/reject the request. If accepted, the feature branch is merged into the master and closed. In this example, the developer on the feature_b merges the new commit from the master branch corresponding to the feature_a to his own branch. He later can emit a merge request to merge his branch to the master.

On the right, the blocks correspond to environments (one environment contains an EIP, a server load balancer, two ECS instances and a RDS instance). Everytime a commit is done in the master branch, the CI/CD pipeline compiles, tests, analyzes the code, and build/update cloud resources with our application. The process is the same with the pre-production and production branches: it allows us to manage releases by emitting a merge request from the master branch to the pre-production one and from the pre-production one to the production one.

Infrastructure-as-code with Terraform

The problem with creating cloud resources with the web console is that it is quite tedious and error prone, especially when this process must be repeated for 3 environments. An elegant solution is to use Terraform: we write a script that describes our architecture (in the HCL language) and we ask Terraform to create / update our cloud environment accordingly.

Let’s discover Terraform before using it for our project. Please install it on your computer (download the binary package and add it to your PATH variable), then open a terminal and run:

# Create a folder for our test
mkdir -p ~/projects/terraform-test

cd ~/projects/terraform-test

# Create a sample script
nano test.tf

Copy the following content into your script:

// Use Alibaba Cloud provider (https://github.com/terraform-providers/terraform-provider-alicloud)
provider "alicloud" {}

// Sample VPC
resource "alicloud_vpc" "sample_vpc" {
  name = "sample-vpc"
  cidr_block = "192.168.0.0/16"
}

Save and quit with CTRL + X, and execute:

# Download the latest stable version of the Alibaba Cloud provider
terraform init

# Configure the Alibaba Cloud provider
export ALICLOUD_ACCESS_KEY="your-accesskey-id"
export ALICLOUD_SECRET_KEY="your-accesskey-secret"
export ALICLOUD_REGION="your-region-id"

# Create the resources in the cloud
terraform apply
Note The values to set in ALICLOUD_ACCESS_KEY and ALICLOUD_SECRET_KEY are your access key ID and secret, you have already used them when you configured automatic backup for GitLab in GitLab installation and configuration. For ALICLOUD_REGION, the available values can be found in Regions and Zones.

The last command should print something like this:

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  + alicloud_vpc.sample_vpc
      id:              <computed>
      cidr_block:      "192.168.0.0/16"
      name:            "sample-vpc"
      route_table_id:  <computed>
      router_id:       <computed>
      router_table_id: <computed>


Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value:

Terraform displays its plan of its modifications. As you can see only one resource will be added (the VPC). Enter the value yes and press ENTER. The result should be something like this:

alicloud_vpc.sample_vpc: Creating...
  cidr_block:      "" => "192.168.0.0/16"
  name:            "" => "sample-vpc"
  route_table_id:  "" => "<computed>"
  router_id:       "" => "<computed>"
  router_table_id: "" => "<computed>"
alicloud_vpc.sample_vpc: Creation complete after 7s (ID: vpc-t4nhi7y0wpzkfr2auxc0p)

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

Let’s check the result:

  1. Log on to the VPC console.
  2. Select your region on top of the page.
  3. Check the VPC table, and you can see sample-vpc:

A very interesting feature of Terraform is its idempotence. We can check that with the following command:

# Run Terraform again
terraform apply

Terraform interacts with the Alibaba Cloud APIs to check what are the existing resources, then compares them to our script and decides that no modification is needed. You can see it in the console logs:

alicloud_vpc.sample_vpc: Refreshing state... (ID: vpc-t4nhi7y0wpzkfr2auxc0p)

Apply complete! Resources: 0 added, 0 changed, 0 destroyed.

Behind the scene Terraform creates two files terraform.tfstate and terraform.tfstate.backup. The first one contains all the resources information that have been created. These files are important and should usually be shared among the team (on an OSS bucket for example).

Another interesting feature is that Terraform is able to update an existing architecture. Let’s check it by ourselves:

# Open our sample script
nano test.tf

Add the following vswitch block in order to obtain the following result:

// Use Alibaba Cloud provider (https://github.com/terraform-providers/terraform-provider-alicloud)
provider "alicloud" {}

// Sample VPC
resource "alicloud_vpc" "sample_vpc" {
  name = "sample-vpc"
  cidr_block = "192.168.0.0/16"
}

// Query Alibaba Cloud about the availability zones in the current region
data "alicloud_zones" "az" {
  network_type = "Vpc"
}

// Sample VSwitch
resource "alicloud_vswitch" "sample_vswitch" {
  name = "sample-vswitch"
  availability_zone = "${data.alicloud_zones.az.zones.0.id}"
  cidr_block = "192.168.1.0/24"
  vpc_id = "${alicloud_vpc.sample_vpc.id}"
}

As you can see, we can use placeholders like ${a.variable} to refer the resources with each others. We can also use a data source to query some information from Alibaba Cloud.

Save and quit with CTRL + X, and run the following command:

# Update our cloud resources
terraform apply

This time Terraform understands that it does not need to re-create the VPC, only the VSwitch:

licloud_vpc.sample_vpc: Refreshing state... (ID: vpc-t4nhi7y0wpzkfr2auxc0p)
data.alicloud_zones.az: Refreshing state...

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  + alicloud_vswitch.sample_vswitch
      id:                <computed>
      availability_zone: "ap-southeast-1a"
      cidr_block:        "192.168.1.0/24"
      name:              "sample-vswitch"
      vpc_id:            "vpc-t4nhi7y0wpzkfr2auxc0p"


Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value:

Enter yes and press ENTER. The VSwitch should be created in few seconds:

alicloud_vswitch.sample_vswitch: Creating...
  availability_zone: "" => "ap-southeast-1a"
  cidr_block:        "" => "192.168.1.0/24"
  name:              "" => "sample-vswitch"
  vpc_id:            "" => "vpc-t4nhi7y0wpzkfr2auxc0p"
alicloud_vswitch.sample_vswitch: Creation complete after 7s (ID: vsw-t4nvtqld0ktk4kddxq709)

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.

Check it worked with the console:

  1. Refresh your web browser tab with the VPC console.
  2. If necessary, select your region on top of the page.
  3. Click the ID of your VPC sample-vpc.
  4. Scroll down and click 1 next to VSwitch.

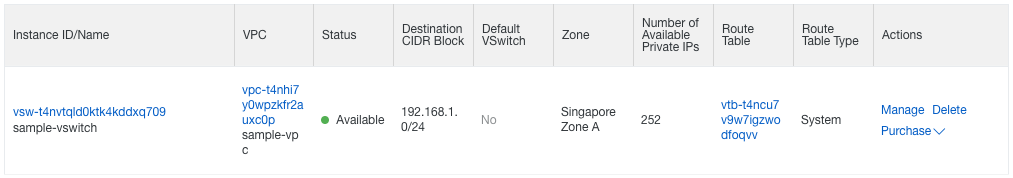

You should be able to see your sample VSwitch:



Congratulation if you managed to get this far! For more information about available resources and datasources, please read the Alicloud provider documentation.

Let’s release our cloud resources. With your terminal execute the following command:

# Release our cloud resources
terraform destroy

Terraform prints its plan as usual:

alicloud_vpc.sample_vpc: Refreshing state... (ID: vpc-t4nhi7y0wpzkfr2auxc0p)
data.alicloud_zones.az: Refreshing state...
alicloud_vswitch.sample_vswitch: Refreshing state... (ID: vsw-t4nvtqld0ktk4kddxq709)

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  - destroy

Terraform will perform the following actions:

  - alicloud_vpc.sample_vpc

  - alicloud_vswitch.sample_vswitch


Plan: 0 to add, 0 to change, 2 to destroy.

Do you really want to destroy?
  Terraform will destroy all your managed infrastructure, as shown above.
  There is no undo. Only 'yes' will be accepted to confirm.

  Enter a value:

Enter yes and press ENTER. The resources should be released in few seconds:

alicloud_vswitch.sample_vswitch: Destroying... (ID: vsw-t4nvtqld0ktk4kddxq709)
alicloud_vswitch.sample_vswitch: Destruction complete after 1s
alicloud_vpc.sample_vpc: Destroying... (ID: vpc-t4nhi7y0wpzkfr2auxc0p)
alicloud_vpc.sample_vpc: Destruction complete after 3s

Destroy complete! Resources: 2 destroyed.

As you can see, the fact that Terraform checks existing cloud resources and then compares them to our scripts allows us to create a new pipeline stage to run terraform apply: at the first execution cloud resources will be created, at the next executions Terraform will update them if needed.

We will commit the Terraform scripts in the same repository as the application source code. Like this, modifications in the application code will always be in sync with the infrastructure code.

However this approach has one drawback: like scripts that modifies database schemas, we need to make sure we do not break things and stay backward compatible, in case we need to rollback our application to an old version.

VM image generation with Packer

Packer is a tool made by the same company as the one who develops Terraform. It allows us to create an image containing our already-configured application. The goal is to be able to create an ECS instance with an image where everything is already configured (no need to login to the machine via SSH and install or execute applications). This solution is particularly handy for auto scaling.

Let’s discover Packer before using it for our project. Please install it on your computer (download the binary package and add it to your PATH variable), then open a terminal and run:

alicloud_vswitch.sample_vswitch: Destroying... (ID: vsw-t4nvtqld0ktk4kddxq709)
alicloud_vswitch.sample_vswitch: Destruction complete after 1s
alicloud_vpc.sample_vpc: Destroying... (ID: vpc-t4nhi7y0wpzkfr2auxc0p)
alicloud_vpc.sample_vpc: Destruction complete after 3s

Destroy complete! Resources: 2 destroyed.

Copy the following content into your script:

{
  "variables": {
    "access_key": "{{env `ALICLOUD_ACCESS_KEY`}}",
    "secret_key": "{{env `ALICLOUD_SECRET_KEY`}}",
    "region_id": "{{env `ALICLOUD_REGION`}}",
    "source_image": "{{env `SOURCE_IMAGE`}}",
    "instance_type": "{{env `INSTANCE_TYPE`}}"
  },
  "builders": [
    {
      "type": "alicloud-ecs",
      "access_key": "{{user `access_key`}}",
      "secret_key": "{{user `secret_key`}}",
      "region": "{{user `region_id`}}",
      "image_name": "sample-image",
      "image_description": "Sample image for testing Packer.",
      "image_version": "1.0",
      "source_image": "{{user `source_image`}}",
      "ssh_username": "root",
      "instance_type": "{{user `instance_type`}}",
      "io_optimized": "true",
      "internet_charge_type": "PayByTraffic",
      "image_force_delete": "true",
      "system_disk_mapping": {
        "disk_category": "cloud_ssd",
        "disk_size": 20
      }
    }
  ],
  "provisioners": [
    {
      "type": "shell",
      "inline": [
        "export DEBIAN_FRONTEND=noninteractive",
        "apt-get -y update",
        "apt-get -y upgrade",
        "apt-get -y install nginx",
        "systemctl start nginx",
        "systemctl enable nginx",
        "sleep 10",
        "curl http://localhost"
      ],
      "pause_before": "30s"
    }
  ]
}

Save and quit with CTRL + X.

Before we can run this script we need to know the exact source image and instance type available in your region. Open a new web browser tab and follow these instructions:

  1. Go to the OpenAPI Explorer.
  2. If it is not already the case, select ECS from the left-side navigation pane, and then DescribeInstanceTypes service from the sub-menu.
  3. Enter your region ID in the RegionId field (for example, ap-southeast-1).
  4. Click Submit Request at the bottom.
  5. If needed, this website will ask you to login with your Alibaba Cloud account.
  6. The Response Result panel on the right should contain a tree of instance types; expand each instance type until you find one with MemorySize equals to 1 or more, and then save the value of its InstanceTypeId (for example, ecs.n1.small).
  7. Select DescribeImages from the sub-menu.
  8. Enter your region ID in the RegionId field (for example, ap-southeast-1).
  9. Enter ubuntu*64* in the ImageName field.
  10. Enter system in the ImageOwnerAlias field.
  11. Click Submit Request at the bottom.
  12. The Response Result panel should contain a tree of available images. Expand each image and save the value of the most recent ImageId (for example, ubuntu_18_04_64_20G_alibase_20181212.vhd).

Now that we have the InstanceTypeId and ImageId, go back to your terminal and type:

# Configure the Alibaba Cloud provider
export ALICLOUD_ACCESS_KEY="your-accesskey-id"
export ALICLOUD_SECRET_KEY="your-accesskey-secret"
export ALICLOUD_REGION="your-region-id"
export SOURCE_IMAGE="your-ImageId"
export INSTANCE_TYPE="your-InstanceTypeId"

# Create the image in the cloud
packer build test.json

Packer should output something like this:

alicloud-ecs output will be in this color.

==> alicloud-ecs: Force delete flag found, skipping prevalidating image name.
    alicloud-ecs: Found image ID: ubuntu_18_04_64_20G_alibase_20181212.vhd
==> alicloud-ecs: Creating temporary keypair: packer_5bea5aa2-e524-1af8-80d1-1db78347ed15
==> alicloud-ecs: Creating vpc
==> alicloud-ecs: Creating vswitch...
==> alicloud-ecs: Creating security groups...
==> alicloud-ecs: Creating instance.
==> alicloud-ecs: Allocating eip
==> alicloud-ecs: Allocated eip 47.74.178.35
    alicloud-ecs: Attach keypair packer_5bea5aa2-e524-1af8-80d1-1db78347ed15 to instance: i-t4nhcv8qx069trkfgye6
==> alicloud-ecs: Starting instance: i-t4nhcv8qx069trkfgye6
==> alicloud-ecs: Using ssh communicator to connect: 47.74.178.35
==> alicloud-ecs: Waiting for SSH to become available...
==> alicloud-ecs: Connected to SSH!
==> alicloud-ecs: Pausing 30s before the next provisioner...
==> alicloud-ecs: Provisioning with shell script: /var/folders/v1/jvjz3zmn64q0j34yc9m9n4w00000gn/T/packer-shell047404213
    alicloud-ecs: Get:1 http://mirrors.cloud.aliyuncs.com/ubuntu xenial InRelease [247 kB]
    alicloud-ecs: Get:2 http://mirrors.cloud.aliyuncs.com/ubuntu xenial-updates InRelease [109 kB]
[...]
    alicloud-ecs: 142 upgraded, 0 newly installed, 0 to remove and 4 not upgraded.
[...]
    alicloud-ecs: The following NEW packages will be installed:
    alicloud-ecs:   fontconfig-config fonts-dejavu-core libfontconfig1 libgd3 libvpx3 libxpm4
    alicloud-ecs:   libxslt1.1 nginx nginx-common nginx-core
    alicloud-ecs: 0 upgraded, 10 newly installed, 0 to remove and 4 not upgraded.
[...]
    alicloud-ecs: Executing /lib/systemd/systemd-sysv-install enable nginx
    alicloud-ecs:   % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
    alicloud-ecs:                                  Dload  Upload   Total   Spent    Left  Speed
    alicloud-ecs: 100   612  100   612    0     0  81415      0 --:--:-- --:--:-- --:--:-- 87428
    alicloud-ecs: <!DOCTYPE html>
    alicloud-ecs: <html>
    alicloud-ecs: <head>
    alicloud-ecs: <title>Welcome to nginx!</title>
    alicloud-ecs: <style>
    alicloud-ecs:     body {
    alicloud-ecs:         width: 35em;
    alicloud-ecs:         margin: 0 auto;
    alicloud-ecs:         font-family: Tahoma, Verdana, Arial, sans-serif;
    alicloud-ecs:     }
    alicloud-ecs: </style>
    alicloud-ecs: </head>
    alicloud-ecs: <body>
    alicloud-ecs: <h1>Welcome to nginx!</h1>
    alicloud-ecs: <p>If you see this page, the nginx web server is successfully installed and
    alicloud-ecs: working. Further configuration is required.</p>
    alicloud-ecs:
    alicloud-ecs: <p>For online documentation and support please refer to
    alicloud-ecs: <a href="http://nginx.org/">nginx.org</a>.<br/>
    alicloud-ecs: Commercial support is available at
    alicloud-ecs: <a href="http://nginx.com/">nginx.com</a>.</p>
    alicloud-ecs:
    alicloud-ecs: <p><em>Thank you for using nginx.</em></p>
    alicloud-ecs: </body>
    alicloud-ecs: </html>
==> alicloud-ecs: Stopping instance: i-t4nhcv8qx069trkfgye6
==> alicloud-ecs: Waiting instance stopped: i-t4nhcv8qx069trkfgye6
==> alicloud-ecs: Creating image: sample-image
    alicloud-ecs: Detach keypair packer_5bea5aa2-e524-1af8-80d1-1db78347ed15 from instance: i-t4nhcv8qx069trkfgye6
==> alicloud-ecs: Cleaning up 'EIP'
==> alicloud-ecs: Cleaning up 'instance'
==> alicloud-ecs: Cleaning up 'security group'
==> alicloud-ecs: Cleaning up 'vSwitch'
==> alicloud-ecs: Cleaning up 'VPC'
==> alicloud-ecs: Deleting temporary keypair...
Build 'alicloud-ecs' finished.

==> Builds finished. The artifacts of successful builds are:
--> alicloud-ecs: Alicloud images were created:

ap-southeast-1: m-t4n938t1plplyl7akeor

The last line contains the ID of the image we have just created (here m-t4n938t1plplyl7akeor). Before we go further, let’s study what Packer did with our script:

  1. Create an ECS instance and necessary cloud resources (key pair, VPC, VSwitch, security group, and ENI).
  2. Connect to the ECS instance using SSH.
  3. Wait for 30 seconds (to make sure the VM is completely started).
  4. Update the machine (apt-get -y update and apt-get -y upgrade).
  5. Install Nginx (apt-get -y install nginx).
  6. Start Nginx and configure SystemD to start it when the machine boots (systemctl start nginx and systemctl enable nginx).
  7. Wait for 10 seconds (to make sure Nginx is started).
  8. Test Nginx by sending a HTTP request to http://localhost (curl http://localhost).
  9. Stop the ECS instance.
  10. Create a snapshot of the system disk and convert it to an image.
  11. Release all cloud resources (EIP, ECS, security group, VSwitch, VPC, and key pair).

You can check the newly created image using the console:

  1. Log on to the ECS console.
  2. Select Images from the left-side navigation pane.
  3. If necessary, select your region on the top of the page.
  4. You can see your new image:

  5. If you want, you can test this image by clicking Create Instance on the left.
  6. When you are done, you can delete this image by selecting its checkbox and by clicking Delete at the bottom of the page.

Health check web service

Before we start with infrastructure scripts, we first need to modify the application to add a /health REST service that just responds OK. It will be useful for the health check process performed by the server load balancer. Open a terminal and execute:

# Go to the project folder
cd ~/projects/todolist

# Create a REST controller
nano src/main/java/com/alibaba/intl/todolist/controllers/HealthController.java

Copy the following content into the new file:

package com.alibaba.intl.todolist.controllers;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * Inform other systems that the application is healthy.
 *
 * @author Alibaba Cloud
 */
@RestController
public class HealthController {

    @RequestMapping("/health")
    public String health() {
        return "OK";
    }
}

Save and quit by pressing CTRL + X, then create another file:

# Create the corresponding test
nano src/test/java/com/alibaba/intl/todolist/controllers/HealthControllerTest.java

Copy the following content into the new file:

package com.alibaba.intl.todolist.controllers;

import com.alibaba.intl.todolist.AbstractTest;
import org.junit.Before;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.setup.MockMvcBuilders;
import org.springframework.web.context.WebApplicationContext;

import static org.junit.Assert.assertEquals;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

/**
 * Test the REST API behind "/health".
 *
 * @author Alibaba Cloud
 */
public class HealthControllerTest extends AbstractTest {

    @Autowired
    private WebApplicationContext wac;

    private MockMvc mockMvc;

    @Before
    public void setup() {
        mockMvc = MockMvcBuilders.webAppContextSetup(wac).build();
    }

    @Test
    public void testHealth() throws Exception {
        String response = mockMvc.perform(get("/health"))
                .andExpect(status().isOk())
                .andReturn().getResponse().getContentAsString();
        assertEquals("OK", response);
    }
}

Save and quit by pressing CTRL + X, and then continue:

# Compile and run the tests
mvn clean package
# Note: the resulting logs should contain "BUILD SUCCESS".

# Check the files to commit
git status

# Add the files
git add src/main/java/com/alibaba/intl/todolist/controllers/HealthController.java
git add src/test/java/com/alibaba/intl/todolist/controllers/HealthControllerTest.java

# Commit the files and write a comment
git commit -m "Add a /health REST controller."

# Push the commit to the GitLab server
git push origin master

Check that everything worked in your GitLab pipeline (the URL should be something like https://gitlab.my-sample-domain.xyz/marcplouhinec/todolist/pipelines) and in your SonarQube dashboard (the URL should be something like https://sonar.my-sample-domain.xyz/dashboard?id=com.alibaba.intl%3Atodo-list%3Amaster).

Note The code modifications above are included in the sample-app/version3 folder.

Application infrastructure

In this section we will create Packer and Terraform scripts that will create the following cloud resources for one environment:

  • 1 VPC
  • 2 VSwitches (one per availability zone)
  • 1 Security group
  • 2 ECS instances (one per availability zone)
  • 1 Multi-zone MySQL RDS
  • 1 SLB instance
  • 1 EIP

We will organize the scripts in 3 main groups:

  • The basis group that setups VPC, VSwitches, Security group, EIP, SLB instance, and domain records.
  • The application group that setups RDS, VM image, and ECS instances.
  • The Let’s Encrypt group responsible for obtaining and updating our SSL certificate.
Note We will deal with the third group in the next topic.

In addition, we will commit our infrastructure scripts alongside the application source code. The logic behind this design choice is to make sure both code bases are synchronized.

Because the scripts are quite large, we will copy them from the sample-app/version3 folder. Open a terminal and execute the following commands:

# Go to the project folder
cd ~/projects/todolist

# Copy the scripts from this tutorials (adapt the path to where you copied this tutorial)
cp -R path/to/sample-app/version3/infrastructure .

# Check the content of this folder
ls -l infrastructure
ls -l infrastructure/10_webapp

As you can see the scripts are organized like this:

  • 05_vpc_slb_eip_domain - basis group (setup VPC, VSwitches, and so on)
  • 10_webapp - folder that contains the application group
    • 05_rds - setup the MySQL database
    • 10_image - build the VM image configured to connect to the MySQL database
    • 15_ecs - setup the ECS instances with the VM image
Note The prefix xx_ in the folder names is just a way to have them sorted when displayed with the ls command.

Let’s have a look at the files in the 05_vpc_slb_eip_domain folder. The variables.tf file contains 3 entries:

variable "env" {
  description = "Environment (dev, pre-prod, prod)"
  default = "dev"
}

variable "domain_name" {
  description = "Domain name of the project."
  default = "my-sample-domain.xyz"
}

variable "sub_domain_name" {
  description = "Sub-domain name corresponding to the environment (dev, pre-prod, www)."
  default = "dev"
}

The description of each variable should be self-explanatory. We will pass the variable values when invoking the terraform apply command.

Let’s check the main.tf file. The first part declares a VPC, one VSwitch per availability zone, and a security group that accepts incoming traffic from the port 8080 (the default port of our application):

// ...
resource "alicloud_vpc" "app_vpc" { /* ... */ }

// One VSwitch per availability zone
resource "alicloud_vswitch" "app_vswitch_zone_0" {
  availability_zone = "... Zone A ..."
  vpc_id = "${alicloud_vpc.app_vpc.id}"
  // ...
}
resource "alicloud_vswitch" "app_vswitch_zone_1" {
  availability_zone = "... Zone B ..."
  vpc_id = "${alicloud_vpc.app_vpc.id}"
  // ...
}

// Security group and rule
resource "alicloud_security_group" "app_security_group" {
  vpc_id = "${alicloud_vpc.app_vpc.id}"
  // ...
}
resource "alicloud_security_group_rule" "accept_8080_rule" {
  type = "ingress"
  ip_protocol = "tcp"
  nic_type = "intranet"
  policy = "accept"
  port_range = "8080/8080"
  priority = 1
  security_group_id = "${alicloud_security_group.app_security_group.id}"
  cidr_ip = "0.0.0.0/0"
}

The next part declares the server load balancer:

resource "alicloud_slb" "app_slb" {
  // ...
  vswitch_id = "${alicloud_vswitch.app_vswitch_zone_0.id}"
}

resource "alicloud_slb_listener" "app_slb_listener_http" {
  load_balancer_id = "${alicloud_slb.app_slb.id}"

  backend_port = 8080
  frontend_port = 80
  bandwidth = -1
  protocol = "http"

  health_check = "on"
  health_check_type = "http"
  health_check_connect_port = 8080
  health_check_uri = "/health"
  health_check_http_code = "http_2xx"
}
Note
  • The SLB architecture is composed of a master and a slave. The vswitch_id corresponds to the availability zone where the master is located, the slave is automatically created in another zone. If the master fails, HTTP requests are transferred to the slave (within a delay of 30 sec). For more information about failover scenarios, see Scenarios.
  • As you can see, the port redirection (80 to 8080) is defined in the SLB listener. You can also see how the SLB uses our Health check web service to determine whether a particular ECS instance is behaving normally or not.

The last part of the main.tf file declares an EIP, attaches it to our SLB and registers a DNS entry:

resource "alicloud_eip" "app_eip" { /* ... */ }

resource "alicloud_eip_association" "app_eip_association" {
  allocation_id = "${alicloud_eip.app_eip.id}"
  instance_id = "${alicloud_slb.app_slb.id}"
}

resource "alicloud_dns_record" "app_record_oversea" {
  name = "${var.domain_name}"
  type = "A"
  host_record = "${var.sub_domain_name}"
  routing = "oversea"
  value = "${alicloud_eip.app_eip.ip_address}"
  ttl = 600
}
resource "alicloud_dns_record" "app_record_default" {
  name = "${var.domain_name}"
  type = "A"
  host_record = "${var.sub_domain_name}"
  routing = "default"
  value = "${alicloud_eip.app_eip.ip_address}"
  ttl = 600
}

Let’s build the basis group of our infrastructure. Open your terminal and run:

# Go to the 05_vpc_slb_eip_domain folder
cd ~/projects/todolist/infrastructure/05_vpc_slb_eip_domain

# Configure Terraform
export ALICLOUD_ACCESS_KEY="your-accesskey-id"
export ALICLOUD_SECRET_KEY="your-accesskey-secret"
export ALICLOUD_REGION="your-region-id"

# Initialize Terraform (download the latest version of the alicloud provider)
terraform init

# Create our infrastructure (note: adapt the domain_name according to your setup)
terraform apply  \
    -var 'env=dev' \
    -var 'domain_name=my-sample-domain.xyz' \
    -var 'sub_domain_name=dev'

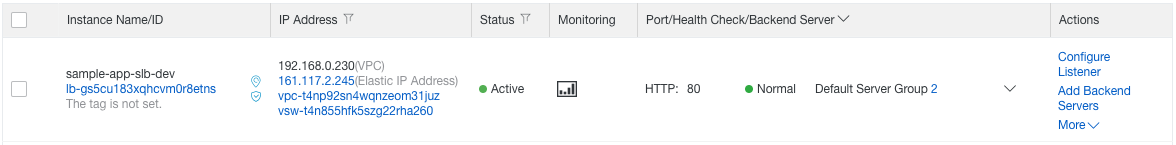

You can check that your cloud resources have been successfully created by browsing the VPC console and by following links to related resources.

You can also check your new domain:

# Note: use your top domain name
nslookup dev.my-sample-domain.xyz

It should output something like this:

Server:		30.14.129.245
Address:	30.14.129.245#53

Non-authoritative answer:
Name:	dev.my-sample-domain.xyz
Address: 161.117.2.245

The last IP address should be your EIP.

Let’s study the application group, open 10_webapp/05_rds/variables.tf:

variable "env" {
  description = "Environment (dev, pre-prod, prod)"
  default = "dev"
}

variable "db_account_password" {
  description = "MySQL database user password."
  default = "P@ssw0rd"
}
Note When creating the database, we set the database name to todolist and the user name to todolist as well. We only let the user password to be configurable ( db_account_password variable).

Open 10_webapp/05_rds/main.tf:

// ...

resource "alicloud_db_instance" "app_rds" {
  // ...
  instance_type = "rds.mysql.t1.small"
  zone_id = "... Zone A + B ..."
  vswitch_id = "... ID of the VSwitch in zone A ..."
  security_ips = [
    "... VPC IP address range ..."
  ]
}

resource "alicloud_db_database" "app_rds_db" {
  instance_id = "${alicloud_db_instance.app_rds.id}"
  name = "todolist"
  character_set = "utf8"
}

resource "alicloud_db_account" "app_rds_db_account" {
  instance_id = "${alicloud_db_instance.app_rds.id}"
  name = "todolist"
  password = "${var.db_account_password}"
  type = "Normal"
}

resource "alicloud_db_account_privilege" "app_rds_db_account_privilege" {
  instance_id = "${alicloud_db_instance.app_rds.id}"
  account_name = "${alicloud_db_account.app_rds_db_account.name}"
  privilege = "ReadWrite"
  db_names = [
    "${alicloud_db_database.app_rds_db.name}"
  ]
}
Note Like with the SLB, the RDS database uses a master/slave architecture. The zone_id is set through a datasource (which provides a value like ap-southeast-1MAZ1(a,b)). The master is created in the availability zone of the given vswitch_id.

Let’s create and configure the database. Execute the following instructions in your terminal:

# Go to the 10_webapp/05_rds folder
cd ../10_webapp/05_rds

# Initialize Terraform
terraform init

# Create the database
terraform apply  \
    -var 'env=dev' \
    -var 'db_account_password=YourD@tabasePassw0rd'

# Display the DB connection string
export RDS_CONNECTION_STRING=$(terraform output app_rds_connection_string)
echo $RDS_CONNECTION_STRING

The last command should print something like rm-gs522kuv3u5m91256.mysql.singapore.rds.aliyuncs.com. This value comes from the output.tf file:

output "app_rds_connection_string" {
  value = "${alicloud_db_instance.app_rds.connection_string}"
}

This is the hostname we will use in our ECS instances to connect them to the database.

The next sub-group 10_webapp/10_image is a bit different: the Terraform scripts are only used to obtain information from Alibaba Cloud (the image ID of Ubuntu Linux and an ECS instance type). The main.tf file only contains datasources:

data "alicloud_images" "ubuntu_images" {
  owners = "system"
  name_regex = "ubuntu_18[a-zA-Z0-9_]+64"
  most_recent = true
}

data "alicloud_instance_types" "instance_types_zone_0" {
  cpu_core_count = 1
  memory_size = 2
  // ...
}

The output.tf file allows us to extract information from these datasources:

output "image_id" {
  value = "${data.alicloud_images.ubuntu_images.images.0.id}"
}

output "instance_type" {
  value = "${data.alicloud_instance_types.instance_types_zone_0.instance_types.0.id}"
}

The app_image.json file is a Packer script:

{
  "variables": {
    "access_key": "{{env `ALICLOUD_ACCESS_KEY`}}",
    "secret_key": "{{env `ALICLOUD_SECRET_KEY`}}",
    "region_id": "{{env `ALICLOUD_REGION`}}",
    "source_image": "{{env `SOURCE_IMAGE`}}",
    "image_version": "{{env `IMAGE_VERSION`}}",
    "instance_type": "{{env `INSTANCE_TYPE`}}",
    "application_path": "{{env `APPLICATION_PATH`}}",
    "properties_path": "{{env `PROPERTIES_PATH`}}",
    "environment": "{{env `ENVIRONMENT`}}",
    "rds_connection_string": "{{env `RDS_CONNECTION_STRING`}}",
    "rds_database": "{{env `RDS_DATABASE`}}",
    "rds_account": "{{env `RDS_ACCOUNT`}}",
    "rds_password": "{{env `RDS_PASSWORD`}}"
  },
  "builders": [
    {
      "type": "alicloud-ecs",
      "access_key": "{{user `access_key`}}",
      "secret_key": "{{user `secret_key`}}",
      "region": "{{user `region_id`}}",
      "image_name": "sample-app-image-{{user `environment`}}-{{user `image_version`}}",
      "image_description": "To-Do list web application ({{user `environment`}} environment).",
      "image_version": "{{user `image_version`}}",
      "source_image": "{{user `source_image`}}",
      "ssh_username": "root",
      "instance_type": "{{user `instance_type`}}",
      "io_optimized": "true",
      "internet_charge_type": "PayByTraffic",
      "image_force_delete": "true",
      "system_disk_mapping": {
        "disk_category": "cloud_ssd",
        "disk_size": 20
      }
    }
  ],
  "provisioners": [
    {
      "type": "shell",
      "inline": [
        "export DEBIAN_FRONTEND=noninteractive",
        "apt-get -y update",
        "apt-get -y upgrade",
        "apt-get -y install default-jdk",
        "mkdir -p /opt/todo-list",
        "mkdir -p /etc/todo-list"
      ],
      "pause_before": "30s"
    },
    {
      "type": "file",
      "source": "{{user `application_path`}}",
      "destination": "/opt/todo-list/todo-list.jar"
    },
    {
      "type": "file",
      "source": "{{user `properties_path`}}",
      "destination": "/etc/todo-list/application.properties"
    },
    {
      "type": "file",
      "source": "resources/todo-list.service",
      "destination": "/etc/systemd/system/todo-list.service"
    },
    {
      "type": "shell",
      "inline": [
        "export RDS_CONNECTION_STRING=\"{{user `rds_connection_string`}}\"",
        "export RDS_DATABASE=\"{{user `rds_database`}}\"",
        "export RDS_ACCOUNT=\"{{user `rds_account`}}\"",
        "export RDS_PASSWORD=\"{{user `rds_password`}}\"",
        "export DATASOURCE_URL=\"jdbc:mysql://$RDS_CONNECTION_STRING:3306/$RDS_DATABASE?useSSL=false\"",
        "export ESCAPED_DATASOURCE_URL=$(echo $DATASOURCE_URL | sed -e 's/\\\\/\\\\\\\\/g; s/\\//\\\\\\//g; s/&/\\\\\\&/g')",
        "export ESCAPED_RDS_ACCOUNT=$(echo $RDS_ACCOUNT | sed -e 's/\\\\/\\\\\\\\/g; s/\\//\\\\\\//g; s/&/\\\\\\&/g')",
        "export ESCAPED_RDS_PASSWORD=$(echo $RDS_PASSWORD | sed -e 's/\\\\/\\\\\\\\/g; s/\\//\\\\\\//g; s/&/\\\\\\&/g')",
        "sed -i \"s/\\(spring\\.datasource\\.url=\\).*\\$/\\1${ESCAPED_DATASOURCE_URL}/\" /etc/todo-list/application.properties",
        "sed -i \"s/\\(spring\\.datasource\\.username=\\).*\\$/\\1${ESCAPED_RDS_ACCOUNT}/\" /etc/todo-list/application.properties",
        "sed -i \"s/\\(spring\\.datasource\\.password=\\).*\\$/\\1${ESCAPED_RDS_PASSWORD}/\" /etc/todo-list/application.properties",
        "systemctl enable todo-list.service"
      ]
    }
  ]
}

This script creates a VM image by executing the following steps:

  1. Create an ECS instance based on Ubuntu Linux.
  2. Upgrade the existing packages.
  3. Install Java JDK.
  4. Copy our packaged application.
  5. Copy our application configuration file (application.properties).
  6. Copy a Systemd script (see the next paragraph for more info).
  7. Set correct values in our application configuration file.
  8. Enable our Systemd script in order to run our application automatically when the ECS instance starts.

The systemd script is located in the resources folder:

[Unit]
Description=todo-list
After=syslog.target
After=network.target

[Service]
ExecStart=/usr/bin/java -Xmx1800m -jar /opt/todo-list/todo-list.jar --spring.config.location=file:/etc/todo-list/application.properties
SuccessExitStatus=143
TimeoutStopSec=10
Restart=on-failure
RestartSec=5
StandardOutput=syslog
StandardError=syslog
SyslogIdentifier=todo-list

[Install]
WantedBy=multi-user.target

This script instructs Systemd about how to start the application, how to restart it automatically if it crashes, and where to print the logs (through syslog).

Let’s create our VM image; in your terminal run:

# Go to the 10_webapp/10_image folder
cd ../10_image

# Initialize Terraform
terraform init

# Request some information for the next step
terraform apply -var 'env=dev'
export SOURCE_IMAGE=$(terraform output image_id)
export INSTANCE_TYPE=$(terraform output instance_type)

# Go to the application root folder and package it
cd ~/projects/todolist
mvn clean package -DskipTests=true
export APPLICATION_PATH=$(pwd)/$(ls target/*.jar)
export PROPERTIES_PATH=$(pwd)/src/main/resources/application.properties

# Go back to the 10_webapp/10_image folder
cd infrastructure/10_webapp/10_image

# Create the VM image
export IMAGE_VERSION=1
export ENVIRONMENT=dev
export RDS_DATABASE=todolist
export RDS_ACCOUNT=todolist
export RDS_PASSWORD="YourD@tabasePassw0rd"
packer build app_image.json

You can check the newly created image using the console:

  1. Select Images from the left-side navigation pane.
  2. If necessary, select your region on the top of the page.
  3. You should be able to see your new image named sample-app-image-dev-1.

Now comes the final step: to create ECS instances with our image and attach them to the SLB. Open the file 10_webapp/15_ecs/main.tf:

// ...

// Our custom application image
data "alicloud_images" "app_images" {
  owners = "self"
  name_regex = "sample-app-image-${var.env}"
  most_recent = true
}

// ...

// One ECS instance per availability zone
resource "alicloud_instance" "app_ecs_zone_0" {
  // ...
  image_id = "${data.alicloud_images.app_images.images.0.id}"
  // ...
  vswitch_id = "... VSwitch in zone A ..."
  // ...
}
resource "alicloud_instance" "app_ecs_zone_1" {
  // ...
  image_id = "${data.alicloud_images.app_images.images.0.id}"
  // ...
  vswitch_id = "... VSwitch in zone B ..."
  // ...
}

// SLB attachments
resource "alicloud_slb_attachment" "app_slb_attachment" {
  load_balancer_id = "... SLB ID ..."
  instance_ids = [
    "${alicloud_instance.app_ecs_zone_0.id}",
    "${alicloud_instance.app_ecs_zone_1.id}"
  ]
}

Let’s complete our infrastructure. Run the following instructions in your terminal:

# Go to the 10_webapp/15_ecs folder
cd ../15_ecs

# Initialize Terraform
terraform init

# Create the ECS instances and attach them to our SLB
terraform apply  \
    -var 'env=dev' \
    -var 'ecs_root_password=YourR00tP@ssword' \
    -parallelism=1
Note As you can see, the last command set the parallelism parameter to one. This is necessary because we configured our application to update the database schema during its initialization (with Flyway). By creating one ECS instance at a time, we avoid potential data race issues (the first instance updates the schema, then the next one simply checks that nothing needs to be done).

Let’s check the deployment of our application:

  1. Select your region if necessary.

Your new SLB looks like this:



Click the chevron icon next to Default Server Group 2 and click the first ECS instance. You should see some information about this instance. The Network (Internal) graph is interesting:

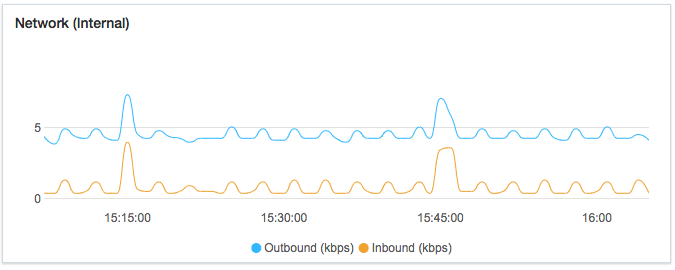

The small waves are the result of the SLB health check (HTTP requests to the /health endpoint).

Let’s play with the application! Open a new web browser tab and navigate to your domain (like http://dev.my-sample-domain.xyz/). You should obtain something like this:



Look at the top-right of the page: the hostname and instance ID allow you to know which ECS instance responded to your HTTP request. Refresh the page several times and look what happens:





As you can see, your HTTP requests are distributed among your two ECS instances.

Note If you wish, you can enable Add an HTTP listener when configuring your SLB listener. That would allow a user to stick to the same ECS instance for all his HTTP requests, which is nice if you want to better exploit a local cache on your application server. However the disadvantage of this solution is that it might unbalance the load on your ECS instances. There are other solutions for caching, such as Memcached or Redis.

After you have finished to study your environment, you need to delete it (it will be the responsibility of the CI/CD pipeline to re-create and update it). Open a terminal and run:

# Go to the last sub-group folder
cd ~/projects/todolist/infrastructure/10_webapp/15_ecs/

# Configure Terraform
export ALICLOUD_ACCESS_KEY="your-accesskey-id"
export ALICLOUD_SECRET_KEY="your-accesskey-secret"
export ALICLOUD_REGION="your-region-id"

# Delete the ECS instances
terraform destroy

# Delete the database
cd ../05_rds/
terraform destroy

# Delete the vpc and other basis group resources
cd ../../05_vpc_slb_eip_domain
terraform destroy

Terraform state files management

Terraform generates tfstate files when we run the terraform apply command; they allow Terraform to keep track of existing cloud resources it has created during previous executions.

In the context of pipeline execution, it is crucial to store tfstate files into an external location, because local files are deleted when a pipeline job terminates. As a solution we will use the OSS bucket we have already created to store our GitLab backups.

The tfstate files are managed by Terraform backends. The default one is the local backend, its default configuration is to store tfstate files alongside our scripts. There are other types of backends but unfortunately none of them is directly compatible with OSS. One solution is to combine the local backend with OSSFS: we mount our OSS bucket as a local folder and save the tfstate files inside.

To implement this solution, we need to give the permissions to our Docker containers (the ones that run our pipeline jobs) to use FUSE, the underlying technology used by OSSFS:

  1. Click Instance from the left-side navigation pane.
  2. Select your region if necessary.
  3. Search for your instance named devops-simple-app-gitlab-runner.
  4. Click Connect on the right side of your instance.
  5. The VNC console should appear: copy the VNC password displayed in the popup and paste it to the next one.
  6. Authenticate yourself with the root user and the password you set when you configured GitLab.
  7. Edit the GitLab Runner configuration file with this command:
    nano /etc/gitlab-runner/config.toml
  8. The configuration file should look like this:
    concurrent = 1
    check_interval = 0

    [[session_server]]
      session_timeout = 1800

    [[runners]]
      name = "devops-simple-app-gitlab-runner"
      url = "https://gitlab.my-sample-domain.xyz/"
      token = "8943412dd85a41002f9f803f21bdbf"
      executor = "docker"
      [runners.docker]
        tls_verify = false
        image = "alpine:latest"
        privileged = false
        disable_entrypoint_overwrite = false
        oom_kill_disable = false
        disable_cache = false
        volumes = ["/cache"]
        shm_size = 0
      [runners.cache]
        [runners.cache.s3]
        [runners.cache.gcs]
  9. Change privileged = false to privileged = true. The file should now look like this:
    concurrent = 1
      check_interval = 0

      [[session_server]]
        session_timeout = 1800

      [[runners]]
        name = "devops-simple-app-gitlab-runner"
        url = "https://gitlab.my-sample-domain.xyz/"
        token = "8943412dd85a41002f9f803f21bdbf"
        executor = "docker"
        [runners.docker]
          tls_verify = false
          image = "alpine:latest"
          privileged = true
          disable_entrypoint_overwrite = false
          oom_kill_disable = false
          disable_cache = false
          volumes = ["/cache"]
          shm_size = 0
        [runners.cache]
          [runners.cache.s3]
          [runners.cache.gcs]
  10. Save and quit by pressing CTRL + X.
  11. Restart the GitLab Runner using the following command:
    gitlab-runner restart
  12. Quit the VNC session by entering the command exit and by closing the web browser tab.

Delivery pipeline stage

We can now put everything together and integrate our infrastructure scripts into our CI/CD pipeline.

For that we need to open the .gitlab-ci.yml file and apply the following changes:

# ...
variables:
  # ...
  ALICLOUD_ACCESS_KEY: "your-accesskey-id"
  ALICLOUD_SECRET_KEY: "your-accesskey-secret"
  ALICLOUD_REGION: "your-region-id"
  GITLAB_BUCKET_NAME: "gitlab-my-sample-domain-xyz"
  GITLAB_BUCKET_ENDPOINT: "http://oss-ap-southeast-1-internal.aliyuncs.com"
  ECS_ENDPOINT: "ecs.aliyuncs.com"
  DOMAIN_NAME: "my-sample-domain.xyz"
  DB_ACCOUNT_PASSWORD: "your-db-password"
  ECS_ROOT_PASSWORD: "your-ecs-root-password"
  OSSFS_VERSION: "1.80.5"
  TERRAFORM_VERSION: "0.11.11"
  PACKER_VERSION: "1.3.3"
# ...
stages:
  - build
  - quality
  - deploy
# ...
deploy:
  stage: deploy
  image: ubuntu:16.04
  script:
    - "export ENV_NAME=$(./gitlab-ci-scripts/deploy/get_env_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export SUB_DOMAIN_NAME=$(./gitlab-ci-scripts/deploy/get_sub_domain_name_by_branch_name.sh $CI_COMMIT_REF_NAME)"
    - "export BUCKET_LOCAL_PATH=/mnt/oss_bucket"
    - "./gitlab-ci-scripts/deploy/install_tools.sh"
    - "./gitlab-ci-scripts/deploy/mount_ossfs.sh"
    - "./gitlab-ci-scripts/deploy/build_basis_infra.sh"
    - "./gitlab-ci-scripts/deploy/build_webapp_infra.sh"
    - "umount $BUCKET_LOCAL_PATH"
    - "sleep 10"
  only:
    - master
    - pre-production
    - production
Note The complete version of this file can be found in “sample-app/version3/.gitlab-ci.yml”.

As you can see, we have added a third stage named deploy after build and quality. The only property means that this stage is only executed for the branches master, pre-production and production. It means that a commit in a feature branch only triggers the build and quality stages.

In addition, because this stage is quite large, it has been split into multiple Bash scripts located in the folder gitlab-ci-scripts/deploy:

  • get_env_name_by_branch_name.sh is quite simple: it gives the environment name (dev, pre-prod and prod) for the current branch (master, pre-production and production):
    #!/usr/bin/env bash
    #
    # Print the environment name according to the branch name.
    #
    # Parameters:
    #   - $1 = BRANCH_NAME
    #

    BRANCH_NAME=$1
    ENV_NAME_MASTER="dev"
    ENV_NAME_PRE_PRODUCTION="pre-prod"
    ENV_NAME_PRODUCTION="prod"

    if [[ ${BRANCH_NAME} == "production" ]]; then
        echo ${ENV_NAME_PRODUCTION};
    elif [[ ${BRANCH_NAME} == "pre-production" ]]; then
        echo ${ENV_NAME_PRE_PRODUCTION};
    else
        echo ${ENV_NAME_MASTER};
    fi
  • get_sub_domain_name_by_branch_name.sh is similar to get_env_name_by_branch_name.sh, but it gives the sub-domain name instead (dev, pre-prod and www):
    #!/usr/bin/env bash
    #
    # Print the environment name according to the branch name.
    #
    # Parameters:
    #   - $1 = BRANCH_NAME
    #

    BRANCH_NAME=$1
    ENV_NAME_MASTER="dev"
    ENV_NAME_PRE_PRODUCTION="pre-prod"
    ENV_NAME_PRODUCTION="prod"

    if [[ ${BRANCH_NAME} == "production" ]]; then
        echo ${ENV_NAME_PRODUCTION};
    elif [[ ${BRANCH_NAME} == "pre-production" ]]; then
        echo ${ENV_NAME_PRE_PRODUCTION};
    else
        echo ${ENV_NAME_MASTER};
    fi
  • install_tools.sh installs OSSFS, Terraform and Packer on top of the Ubuntu Docker image:
    #!/usr/bin/env bash
    #
    # Install OSSFS, Terraform and Packer.
    #
    # Required global variables:
    #   - OSSFS_VERSION
    #   - TERRAFORM_VERSION
    #   - PACKER_VERSION
    #

    echo "Installing OSSFS version ${OSSFS_VERSION}, Terraform version ${TERRAFORM_VERSION} and Packer version ${PACKER_VERSION}..."

    # Create a temporary folder
    mkdir -p installation_tmp
    cd installation_tmp

    # Install OSSFS
    apt-get -y update
    apt-get -y install gdebi-core wget unzip
    wget "https://github.com/aliyun/ossfs/releases/download/v${OSSFS_VERSION}/ossfs_${OSSFS_VERSION}_ubuntu16.04_amd64.deb"
    gdebi -n "ossfs_${OSSFS_VERSION}_ubuntu16.04_amd64.deb"

    # Install Terraform
    wget "https://releases.hashicorp.com/terraform/${TERRAFORM_VERSION}/terraform_${TERRAFORM_VERSION}_linux_amd64.zip"
    unzip "terraform_${TERRAFORM_VERSION}_linux_amd64.zip" -d /usr/local/bin/

    # Install Packer
    wget "https://releases.hashicorp.com/packer/${PACKER_VERSION}/packer_${PACKER_VERSION}_linux_amd64.zip"
    unzip "packer_${PACKER_VERSION}_linux_amd64.zip" -d /usr/local/bin/

    # Display the version of installed tools
    echo "Installed OSSFS version:"
    ossfs --version
    echo "Installed Terraform version:"
    terraform version
    echo "Installed Packer version:"
    packer version

    # Delete the temporary folder
    cd ..
    rm -rf installation_tmp

    echo "Installation of OSSFS, Terraform and Packer completed."
  • mount_ossfs.sh makes our OSS bucket accessible like a normal folder:
    #!/usr/bin/env bash
    #
    # Mount an OSS bucket with OSSFS.
    #
    # Required global variables:
    #   - ALICLOUD_ACCESS_KEY
    #   - ALICLOUD_SECRET_KEY
    #   - GITLAB_BUCKET_NAME
    #   - GITLAB_BUCKET_ENDPOINT
    #   - BUCKET_LOCAL_PATH
    #

    echo "Mounting the OSS bucket ${GITLAB_BUCKET_NAME} (endpoint ${GITLAB_BUCKET_ENDPOINT}) into ${BUCKET_LOCAL_PATH}..."

    # Configure OSSFS
    echo "$GITLAB_BUCKET_NAME:$ALICLOUD_ACCESS_KEY:$ALICLOUD_SECRET_KEY" > /etc/passwd-ossfs
    chmod 640 /etc/passwd-ossfs

    # Mount our bucket
    mkdir -p "$BUCKET_LOCAL_PATH"
    ossfs "$GITLAB_BUCKET_NAME" "$BUCKET_LOCAL_PATH" -ourl="$GITLAB_BUCKET_ENDPOINT"

    echo "OSS bucket ${GITLAB_BUCKET_NAME} mounted with success into ${BUCKET_LOCAL_PATH}."
  • build_basis_infra.sh runs the Terraform scripts to build the basis infrastructure:
    #!/usr/bin/env bash
    #
    # Build the basis infrastructure (VPC, VSwitches, ...)
    #
    # Required global variables:
    #   - ALICLOUD_ACCESS_KEY
    #   - ALICLOUD_SECRET_KEY
    #   - ALICLOUD_REGION
    #   - ENV_NAME
    #   - DOMAIN_NAME
    #   - SUB_DOMAIN_NAME
    #   - BUCKET_LOCAL_PATH
    #

    echo "Building the basis infrastructure (environment: ${ENV_NAME},\
     region: ${ALICLOUD_REGION},\
     domain: ${DOMAIN_NAME},\
     sub-domain: ${SUB_DOMAIN_NAME})..."

    # Set values for Terraform variables
    export TF_VAR_env=${ENV_NAME}
    export TF_VAR_domain_name=${DOMAIN_NAME}
    export TF_VAR_sub_domain_name=${SUB_DOMAIN_NAME}

    # Run the Terraform scripts in 05_vpc_slb_eip_domain
    cd infrastructure/05_vpc_slb_eip_domain
    export BUCKET_DIR_PATH="$BUCKET_LOCAL_PATH/infrastructure/$ENV_NAME/05_vpc_slb_eip_domain"
    mkdir -p ${BUCKET_DIR_PATH}
    cp ${BUCKET_DIR_PATH}/*.tfstate* .
    terraform init -input=false
    terraform apply -input=false -auto-approve
    rm -f ${BUCKET_DIR_PATH}/*
    cp *.tfstate* ${BUCKET_DIR_PATH}

    cd ../..

    echo "Basis infrastructure successfully built (environment: ${ENV_NAME}, region: ${ALICLOUD_REGION})."
    Note
    • You can see how we download and then replace tfstate files on our OSS bucket before and after running Terraform.
    • It is possible to directly configure the local backend to directly target the folder mounted by OSSFS (using the terraform init command). However there is a bug that corrupts tfstate files.
  • build_webapp_infra.sh runs the Terraform scripts to build the application infrastructure:
    #!/usr/bin/env bash
    #
    # Build the web application infrastructure (RDS, VM image, ECS, ...)
    #
    # Required global variables:
    #   - ALICLOUD_ACCESS_KEY
    #   - ALICLOUD_SECRET_KEY
    #   - ALICLOUD_REGION
    #   - ENV_NAME
    #   - DB_ACCOUNT_PASSWORD
    #   - ECS_ROOT_PASSWORD
    #   - BUCKET_LOCAL_PATH
    #   - CI_PIPELINE_IID
    #

    echo "Building the application infrastructure (environment: ${ENV_NAME}, region: ${ALICLOUD_REGION})..."

    # Set values for Terraform and Packer variables
    export TF_VAR_env=${ENV_NAME}
    export TF_VAR_db_account_password=${DB_ACCOUNT_PASSWORD}
    export TF_VAR_ecs_root_password=${ECS_ROOT_PASSWORD}

    export APPLICATION_PATH=$(pwd)/$(ls target/*.jar)
    export PROPERTIES_PATH=$(pwd)/src/main/resources/application.properties
    export IMAGE_VERSION=${CI_PIPELINE_IID}
    export ENVIRONMENT=${ENV_NAME}
    export RDS_DATABASE=todolist
    export RDS_ACCOUNT=todolist
    export RDS_PASSWORD=${DB_ACCOUNT_PASSWORD}

    # Create/update the application database
    cd infrastructure/10_webapp/05_rds
    export BUCKET_DIR_PATH="$BUCKET_LOCAL_PATH/infrastructure/$ENV_NAME/10_webapp/05_rds"
    mkdir -p ${BUCKET_DIR_PATH}
    cp ${BUCKET_DIR_PATH}/*.tfstate* .
    terraform init -input=false
    terraform apply -input=false -auto-approve
    rm -f ${BUCKET_DIR_PATH}/*
    cp *.tfstate* ${BUCKET_DIR_PATH}
    export RDS_CONNECTION_STRING=$(terraform output app_rds_connection_string)

    # Extract Alibaba Cloud information for building the application image
    cd ../10_image
    export BUCKET_DIR_PATH="$BUCKET_LOCAL_PATH/infrastructure/$ENV_NAME/10_webapp/10_image"
    mkdir -p ${BUCKET_DIR_PATH}
    cp ${BUCKET_DIR_PATH}/*.tfstate* .
    terraform init -input=false
    terraform apply -input=false -auto-approve
    rm -f ${BUCKET_DIR_PATH}/*
    cp *.tfstate* ${BUCKET_DIR_PATH}
    export SOURCE_IMAGE=$(terraform output image_id)
    export INSTANCE_TYPE=$(terraform output instance_type)

    # Build the application image
    packer build app_image.json

    # Create/update the ECS instances
    cd ../15_ecs
    export BUCKET_DIR_PATH="$BUCKET_LOCAL_PATH/infrastructure/$ENV_NAME/10_webapp/15_ecs"
    mkdir -p ${BUCKET_DIR_PATH}
    cp ${BUCKET_DIR_PATH}/*.tfstate* .
    terraform init -input=false
    terraform apply -input=false -auto-approve -parallelism=1
    rm -f ${BUCKET_DIR_PATH}/*
    cp *.tfstate* ${BUCKET_DIR_PATH}

    cd ../../..

    echo "Application infrastructure successfully built (environment: ${ENV_NAME}, region: ${ALICLOUD_REGION})."
    Note The CI_PIPELINE_IID variable is set by GitLab. It contains the pipeline number. We use it to create unique VM image names.

Before we commit these scripts, we first need to add new variables in our GitLab project configuration:

  1. Open GitLab (the URL must be like https://gitlab.my-sample-domain.xyz/).
  2. Sign in if necessary.
  3. Click Projects from the top menu and select Your projects.
  4. Click the todolist project.
  5. In the left-side navigation pane, select Settings > CI/CD.
  6. Expand the Variables panel, and create the following variables:
    • ALICLOUD_ACCESS_KEY = your Alibaba Cloud access key ID (for example, LTBIgF7wiMozeRIa)
    • ALICLOUD_SECRET_KEY = your Alibaba Cloud access key secret (for example, rdp59SYSKtNdDg3PYlTfjlrxu12fbp)
    • ALICLOUD_REGION = your Alibaba Cloud region (for example, ap-southeast-1)
    • GITLAB_BUCKET_NAME = your OSS bucket name (for example, gitlab-my-sample-domain-xyz)
    • GITLAB_BUCKET_ENDPOINT = the OSS bucket endpoint (for example, http://oss-ap-southeast-1-internal.aliyuncs.com). You can get it from the OSS console, by selecting your bucket and by copying the endpoint next to VPC Network Access from ECS (Internal Network)
    • ECS_ENDPOINT = the ECS Service endpoint. You can find the complete list in Request structure. If you are unsure, set it to ecs.aliyuncs.com. This variable is used by Packer when it creates a VM image. Setting this variable to your region improves the performance and reduces the probability of timeout errors.
    • DOMAIN_NAME = your domain name (for example, my-sample-domain.xyz)
    • DB_ACCOUNT_PASSWORD = the password of the todolist user in the MySQL database (for example, YourSecretPassw0rdForRds)
    • ECS_ROOT_PASSWORD = the root password of your ECS instances (for example, YourSecretPassw0rdForEcs)
    • OSSFS_VERSION = latest OSSFS version (for example, 1.80.5)
    • TERRAFORM_VERSION = latest Terraform version (for example, 0.11.11)
    • PACKER_VERSION = latest Packer version (for example, 1.3.3)
  7. Click Save variables.

Let’s commit and push our changes. Open your terminal and type:

# Go to the project folder
cd ~/projects/todolist

# Check files to commit
git status

# Add the modified and new files
git add .gitignore infrastructure/ gitlab-ci-scripts/

# Commit and push to GitLab
git commit -m "Add the deploy stage."
git push origin master

In your GitLab web browser tab, select CI/CD > Pipelines from the left-side navigation pane. You should get something like this:



Check that your cloud resources have been successfully created by browsing to the VPC console and by following links to related resources.

Check your application by opening a new web browser tab and by navigating to your domain (like http://dev.my-sample-domain.xyz/).

Congratulation if you managed to deploy your application automatically! From now on, any commit on the master branch automatically launches a pipeline that builds, tests, analyzes and deploys the change!

Pre-production and production environments

As you can see in the scripts you have committed in the previous section, the two variables ENV_NAME and SUB_DOMAIN_NAME are set to different values according to the current branch name. Let’s create new branches for the pre-production and production environments. Enter the following commands with your terminal:

# Go to the project folder
cd ~/projects/todolist

# Check files to commit
git status

# Add the modified and new files
git add .gitignore infrastructure/ gitlab-ci-scripts/

# Commit and push to GitLab
git commit -m "Add the deploy stage."
git push origin master

Check your GitLab CI/CD pipeline (CI/CD > Pipelines from the leftt-side navigation pane): the process should work successfully.

Check your cloud resources by browsing the VPC console: this time they should have names containing pre-prod instead of dev.

You can also check your web application with the pre-prod sub-domain (for example, http://pre-prod.my-sample-domain.xyz/). As you can see this new environment is completely isolated and independent from the development one.

Let’s do the same with the production environment:

# Create a production branch
git checkout -b production
git push origin production

Check your GitLab CI/CD pipeline, then your cloud resources and finally your web application with the www sub-domain: http://www.my-sample-domain.xyz/.

Congratulation: you have 3 environments! From now on, the process to follow to deploy a new version of your application is the following:

  1. Regularly commit improvements and new features into the master branch (through feature branches).
  2. When the master branch is stable enough for a release, create a merge request from the master branch into the pre-production one:

  3. Let another person to check and accept the merge request to start the deployment into pre-production.
  4. Test the pre-production version, fix bugs and re-test. Note that it may be necessary to merge the master into the pre-production branch several times until the bugs are fixed.
  5. When the pre-production branch is ready, create a merge request from the pre-production branch into the production one:



  6. Let another person to check and accept the merge request to start the deployment into production.
