This topic describes how to set up a Jenkins continuous integration environment in a Container Service for Kubernetes (ACK) cluster. This topic also provides examples on how to build an application delivery pipeline that covers source code compilation, image building and pushing, and application deployment.

Prerequisites

Deploy Jenkins

We recommend that you perform the following steps to install ack-jenkins in the cluster and run a build job named demo-pipeline. After the build job is complete, you can customize the configuration of the build job based on your requirements.

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, choose Marketplace > App Catalog.
  3. On the Alibaba Cloud Apps tab, select ack-jenkins.

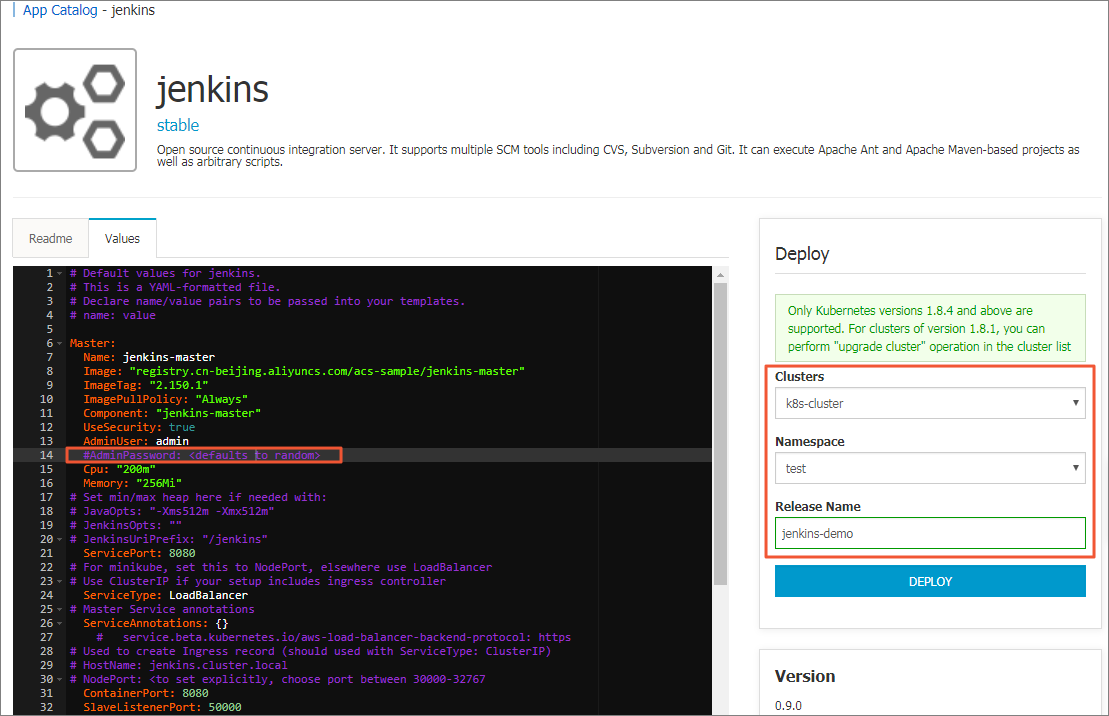

  4. On the App Catalog - ack-jenkins page, set the required parameters.
    1. Click the Parameters tab.
    2. In the Deploy section, select your cluster from the Cluster drop-down list and a namespace from the Namespace drop-down list. Then, enter a release name in the Release Name field.
      Namespace
      Note We recommend that you select a custom namespace or the default namespace. In this example, a custom namespace named ci is selected.
    3. Optional:On the Parameters tab, modify the value in the AdminPassword field. Then, click Create in the Deploy section.

      If you do not enter a password into the AdminPassword field, the system automatically generates a password after Jenkins is deployed. The default password is admin.

  5. Log on to Jenkins.
    1. In the left-side navigation pane of the ACK console, click Clusters.
    2. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
    3. In the left-side navigation pane of the details page, choose Network > Services.
    4. Select the namespace in which Jenkins is deployed. Find the ack-jenkins-default Service and then click the endpoint in the External Endpoint column to log on to Jenkins.
  6. Configure the settings on the Getting Started page.
    1. On the Getting Started page, click Install suggested plugins.
    2. After the plug-ins are installed, click Save and Finish in the Instance Configuration section of the Getting Started page.
    3. After the instance configuration is saved, click Start using Jenkins.
  7. Build demo-pipeline and access the application.
    1. On the Jenkins homepage, click the Build icon to the right of demo-pipeline.
      demo-pipeline
    2. Modify the build parameters based on the information of your image repository. In this example, the branch of the source code repository is master and the image is registry.cn-beijing.aliyuncs.com/ack-cicd/ack-jenkins-demo:latest.
      Build parameters
    3. Click Build.
      Test the connectivity between the Jenkins master and the Jenkins slave pod that is dynamically allocated by the Kubernetes cluster.

      After you click Build, Jenkins dynamically creates a slave pod from the Kubernetes cluster to run the build job. For more information about the sample application code, see jenkins-demo-GitHub or jenkins-demo-haoshuwei.

    4. Go to the Status page. If the build is successful, it indicates that Jenkins runs as normal on Kubernetes.
      Build History

Configure Kubernetes Cloud

Jenkins uses the Kubernetes plug-in to connect to Kubernetes clusters, and then dynamically creates and releases slave pods.

  1. In the left-side navigation pane, click Back to Dashboard.
  2. In the left-side navigation pane of the Jenkins dashboard, click Manage Jenkins.
  3. On the Manage Jenkins page, click Manage Nodes and Clouds in the System Configuration section.
  4. In the left-side navigation pane of the Nodes page, click Configure Clouds.
  5. On the Configure Clouds page, click Kubernetes Cloud details....

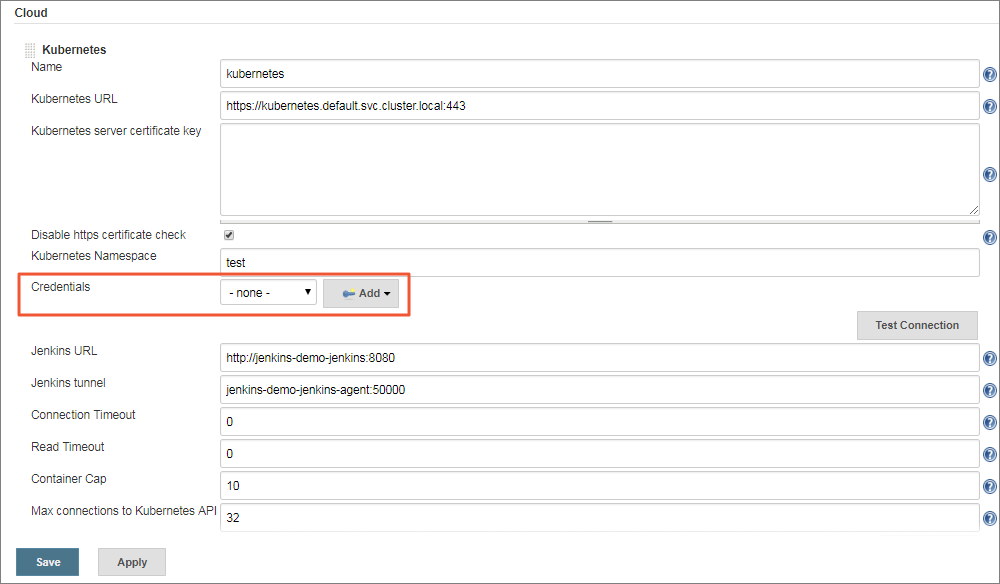

    Kubernetes Cloud is automatically configured when ack-jenkins is deployed. The following table describes the parameters.

    Parameter Description
    Name Default value: kubernetes. Build pods
    Kubernetes address Default value: https://kubernetes.default.svc.cluster.local:443. This indicates that Jenkins is installed in the cluster and can access the Kubernetes API server by using an internal endpoint.
    Kubernetes namespace Default value: default. This indicates that slave pods are dynamically created and destroyed in the default namespace.
    Jenkins address The endpoint that the slave pods use to connect to the Jenkins master. Default value: http://ack-jenkins-default:8080.
    Jenkins channel The Java network launch protocol (JNLP) that the slave pods use to connect to the Jenkins master. Default value: ack-jenkins-default-agent:50000.
  6. On the Configure Clouds page, click Pod Templates... and then click Pod Templates details....

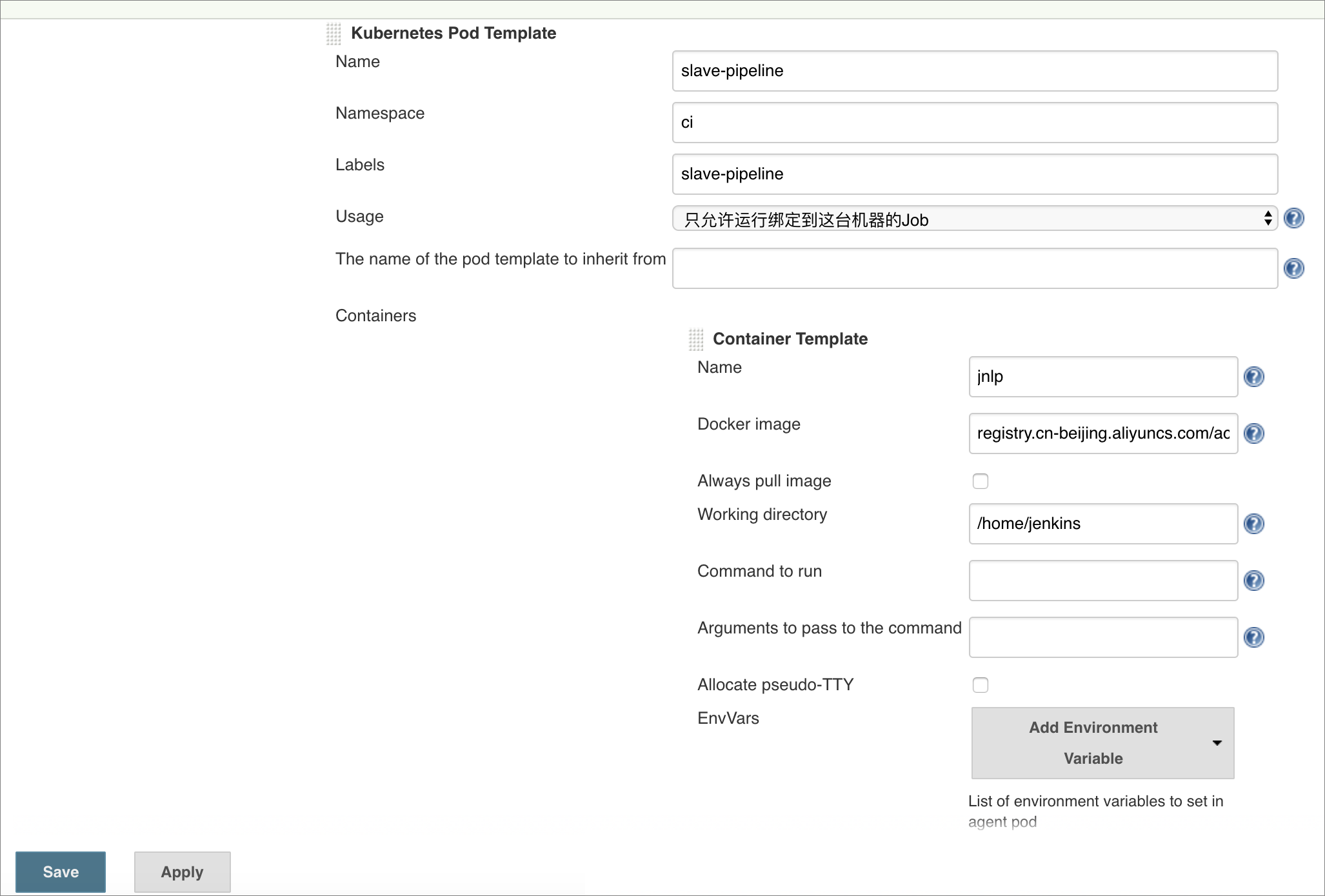

    A pod template is automatically configured when ack-jenkins is deployed. The following table describes the parameters.

    Parameter Description
    Name The name of the slave pod. Default value: slave-pipeline. Container jnlp
    Namespace Default value: jenkins.
    The list of labels Build jobs select pod templates with matching labels to create slave pods. Default value: slave-pipeline.
    The list of containers jnlp is used to connect to the Jenkins master.

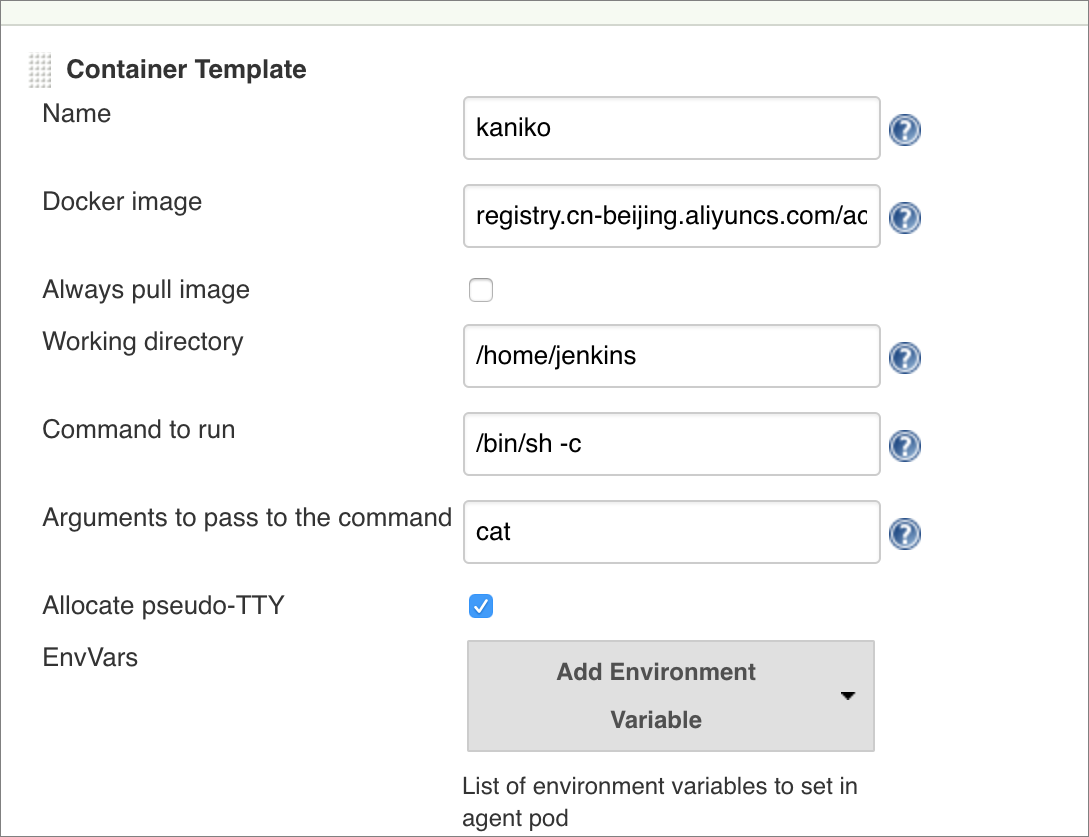

    kaniko is used to build and push container images. Container kaniko

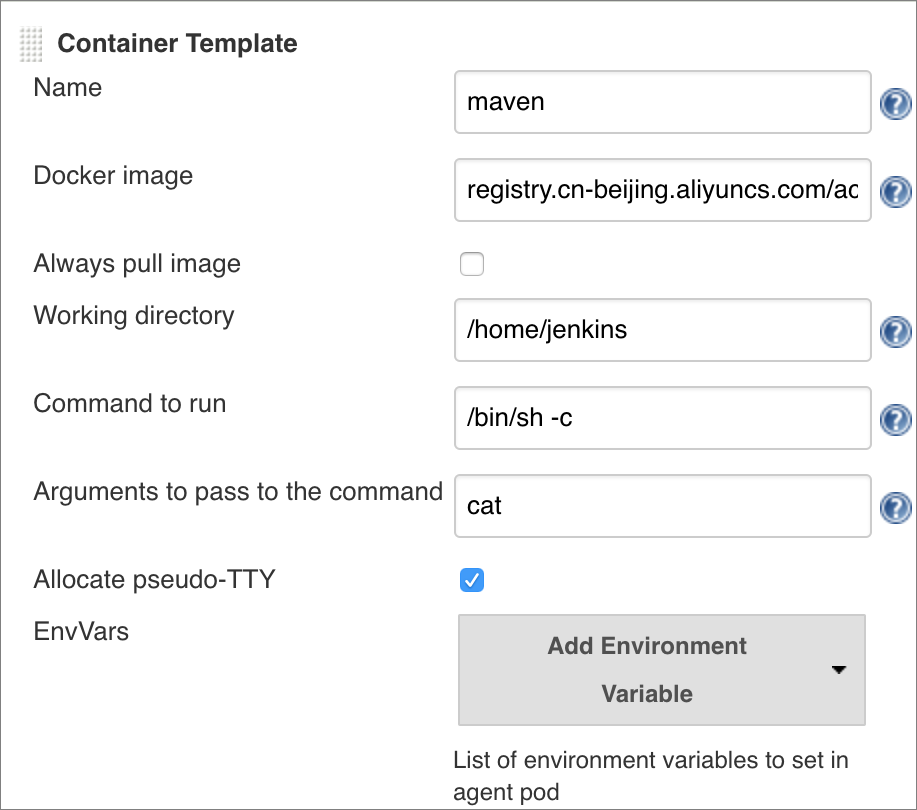

    maven is used to build and package applications. Container maven

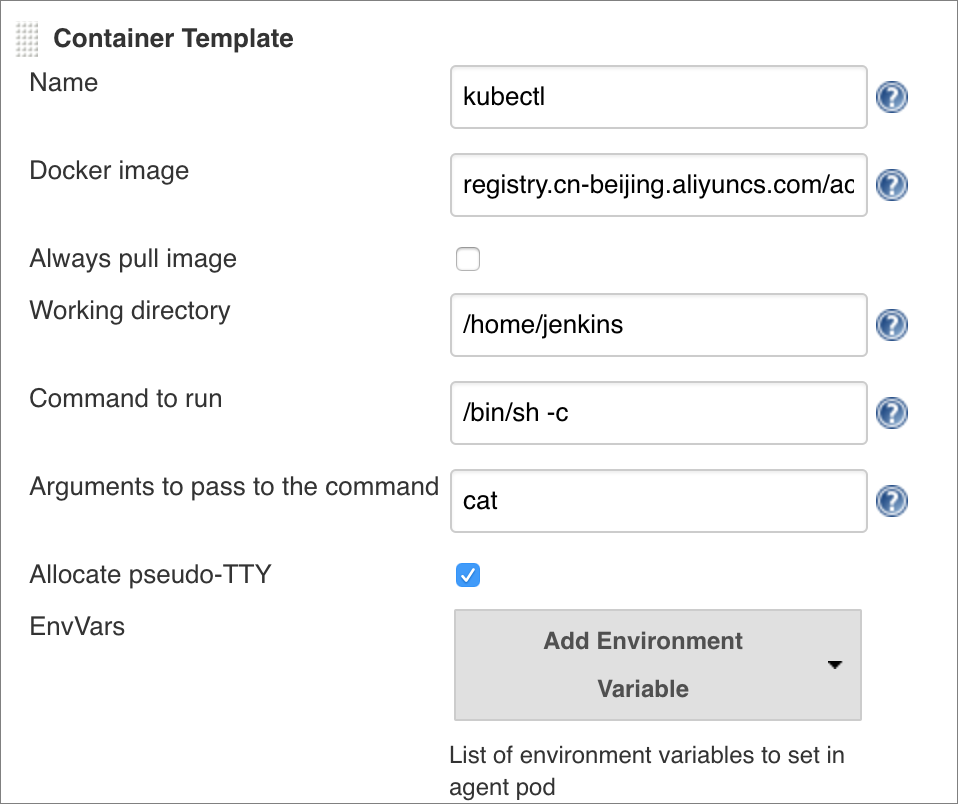

    kubectl is used to deploy applications. Container kubectl

Configure the Maven cache for slave pods

Slave pods are dynamically created in the Kubernetes cluster and may be scheduled to a random worker node. To ensure that each dynamically created slave pod can use the Maven cache, a shared persistent volume is required.

  1. Create Apsara File Storage NAS (NAS) volumes to provide shared persistent storage. For more information, see Use a dynamically provisioned NAS volume.
    Run the following command to query the NAS volumes that are created in the jenkins namespace:
    kubectl -n jenkins get pvc

    Expected output:

    In the expected output, the persistent volume claim (PVC) named ack-jenkins-default provides persistent storage for the /var/jenkins_home directory of the Jenkins master. The PVC named nas-csi-pvc provides shared persistent storage for the Maven cache.

    NAME                  STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS               AGE
    ack-jenkins-default   Bound    d-2ze8xhgzuw1t278j****                     20Gi       RWO            alicloud-disk-efficiency   3h16m
    nas-csi-pvc           Bound    nas-c6c3e703-58a9-484e-8ce5-630486ea****   20Gi       RWX            alicloud-nas-subpath       4m17s
  2. Optional:Add a ConfigMap volume in the pod template.
    To mount a custom settings file to a slave pod in Jenkins, you can create a ConfigMap volume and then configure the volume in the pod template.
    1. Run the following command to create a custom settings file:
      kubectl -n jenkins create configmap maven-config --from-file=settings.xml
    2. In the left-side navigation pane of the Jenkins dashboard, click Manage Jenkins. On the Manage Jenkins page, click Manage Nodes and Clouds in the System Configuration section. In the left-side navigation pane of the Nodes page, click Configure Clouds.
    3. On the Configure Clouds page, click Pod Template and then click Pod Template details.
    4. In the Volumes field, click Add Volume and then select Config Map Volume.
      Add volume
    5. Click Save.
  3. Add a PVC in the pod template. For more information, see Step 2.
    Add a PVC
    Verify the result
    1. On the Jenkins homepage, click demo-pipeline.
    2. In the left-side navigation pane of the Jenkins dashboard, click Configure.
    3. Click the Pipeline tab.
    4. In the Script Path field, enter Jekinsfile.maven.
    5. Click Save.
    6. On the Jenkins homepage, click the Build icon to the right of demo-pipeline. Then, click Build.
      When you build the Maven project for the first time, the system requires some time to download all dependent packages. First build
      When you build the Maven project again, the system can reference dependent packages from the cache and quickly package the source code. Build again

Use kaniko to build and push container images

When you use kaniko to push images, you must configure credentials that are used to access the image repository.

In this example, you must generate a config.json file in a Linux machine. This file is used to access the image repository. You must not generate the file in a macOS machine. The following example shows how to build and push the registry.cn-hangzhou.aliyuncs.com/haoshuwei24/jenkins-demo:20200428 image.

  1. Run the following command to log on to the image repository:
    The config.json file is automatically generated when you log on to the image repository.
    docker login -u <username> -p <password> registry.cn-hangzhou.aliyuncs.com

    Expected output:

    Login Succeeded
  2. Create a Secret named jenkins-docker-cfg in the jenkins namespace from the config.json file.
    kubectl create secret generic jenkins-docker-cfg -n jenkins --from-file=/root/.docker/config.json
  3. Add an environment variable and a Secret volume in the pod template.
    1. In the left-side navigation pane of the Jenkins dashboard, click Manage Jenkins. On the Manage Jenkins page, click Manage Nodes and Clouds in the System Configuration section. In the left-side navigation pane of the Nodes page, click Configure Clouds.
    2. On the Configure Clouds page, click Pod Template and then click Pod Template details.
    3. In the EnvVars field, click Add Environment Variable and then select Environment Variable.
      Add an environment variable and a Secret volume
    4. In the Volumes field, click Add Volume and then select Secret Volume.
    5. Click Save.
    Verify the result
    1. On the Jenkins homepage, click demo-pipeline.
    2. In the left-side navigation pane of the Jenkins dashboard, click Configure.
    3. Click the Pipeline tab.
    4. In the Script Path field, enter Jekinsfile.kaniko.
    5. Click Save.
    6. On the Jenkins homepage, click the Build icon to the right of demo-pipeline. Modify the build parameters based on the information of your image repository. Then, click Build.
      View the kaniko build log. kaniko build log
    7. Check whether the image is successfully pushed to the image repository.
      1. Log on to the Container Registry console.
      2. In the left-side navigation pane, click Instances.
      3. On the management page of the Container Registry Personal Edition instance, choose Repositories > Repositories in the left-side navigation pane.
      4. On the Repositories page, find the repository that you want to manage and click Manage in the Actions column.
      5. In the left-side navigation pane, click Tags to check whether the image is successfully pushed to the repository. Check the image tag

Upgrade Jenkins

If you want to upgrade the jenkins-master image in your Jenkins environment, you must create a snapshot of the disk volume that is mounted on the /var/jenkins_home directory. This prevents data loss because the automated script of the new Jenkins master automatically writes data to the /var/jenkins_home directory. For more information, see Use volume snapshots created from disks.
