The EMR-APM dashboard shows the resource usage status of EMR. This topic describes how to enter the dashboard page and describes the number of alerts you can view, recent events, cluster status, and recent jobs.

Enter the EMR-APM dashboard page

  1. Log on to the Alibaba Cloud E-MapReduce console.
  2. Click the Monitor tab.
    The Dashboard page appears.
    Note This page provides an overview of all the clusters of your account in a specific region.

Top charts

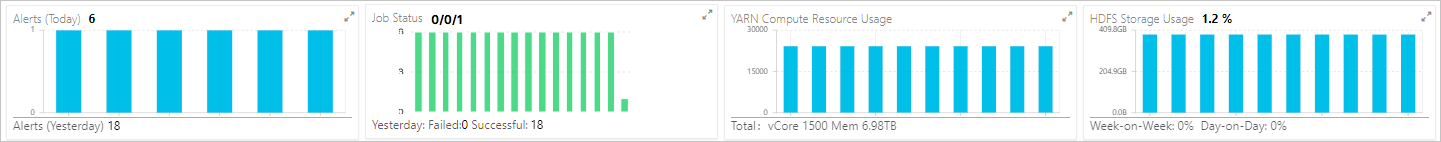

Top charts
  • Alerts (Today): displays the number of alerts issued per hour for all clusters in a specific region on the current day by using a column chart.Number of alerts
    You can click in the upper-right corner to select a time range and time granularity.Select a time range
    Note You can view larger versions of all the charts on the dashboard. When you view the larger version of a chart, you can select a time range and time granularity.
  • Job Status: displays the running status of jobs for all clusters in a specific region on the current day. The default time interval is one hour. The statistics from the previous day are also displayed.Job status
  • YARN Compute Resource Usage: displays the computing resource usage of all clusters in a specific region on the current day. The total usage of computing resources in the region is displayed below the chart.
    Note Only the memory and vCore data of YARN is counted. The default time interval is one hour.
    Computing resource usage
  • HDFS Storage Usage: displays the storage resource usage of all clusters in a specific region on the current day. The default time interval is one hour. The week-on-week and day-to-day statistics on storage resource usage are displayed below the chart.
    Note Storage resources refer to the HDFS capacity of a cluster. They do not refer to the disk capacity of all instances in the cluster.
    Storage resource usage

Recent events

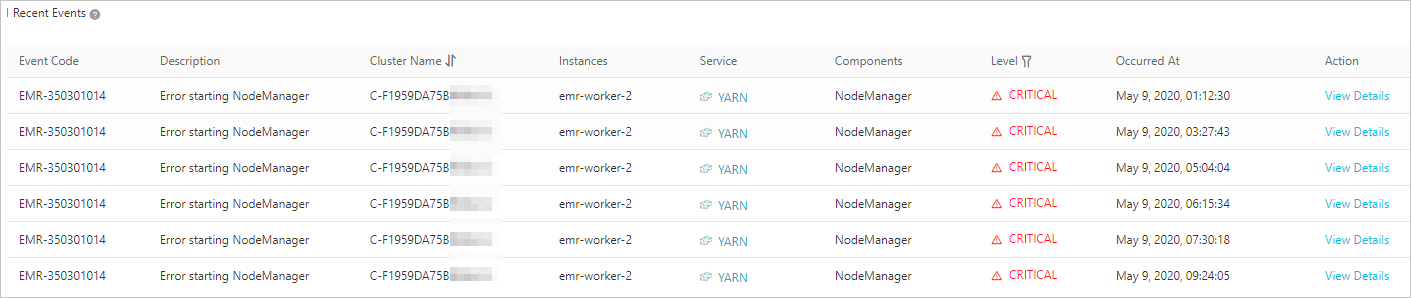

The Recent Events section displays recent exception events of all clusters in a specific region.Recent events

Cluster status

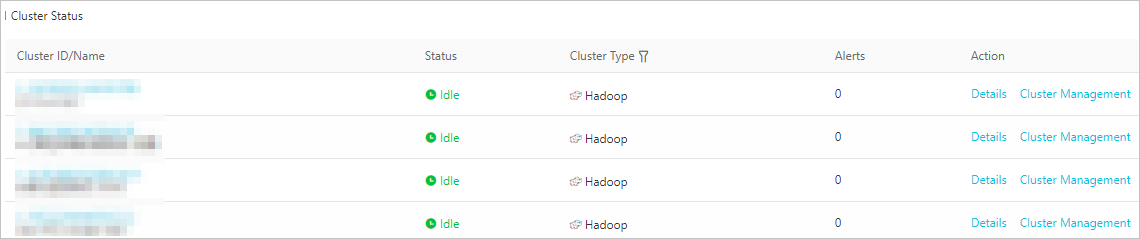

The Cluster Status section displays the status of all clusters in a specific region and the number of alerts generated for each cluster on the current day. You can click Details in the Action column that corresponds to a specific cluster to view its monitoring details or click Cluster Management to access the Clusters and Services page.Cluster status

Recent jobs

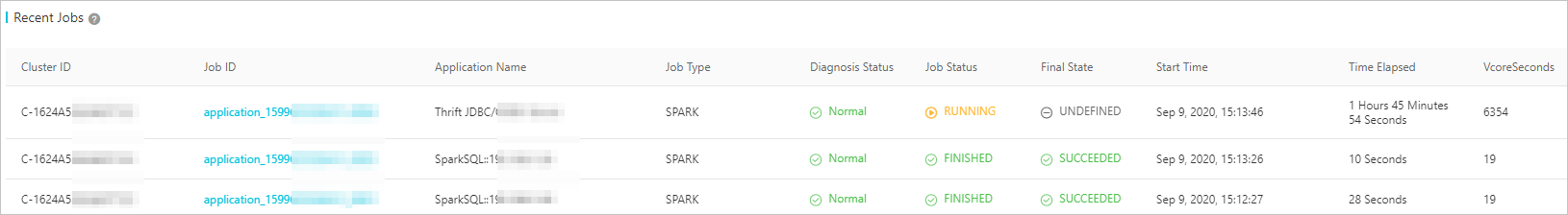

The Recent Jobs section displays a list of recent jobs that can be optimized. These jobs run on all clusters in a specific region. You can click Details in the Action column of a job to view the suggestions on how to optimize the job.
