ApsaraDB RDS:Manage scheduled events

Last Updated:Jan 05, 2024

You are notified of O&M events such as instance migrations or version upgrades for an ApsaraDB RDS for MySQL instance by phone call, email, or internal message. In addition, you are prompted to manage O&M events after you log on to the ApsaraDB RDS console. You can view the types, regions, and IDs of the RDS instances that are affected by the O&M event, and the cause and impacts of the event. You can also change the scheduled time of switchovers that are triggered by the O&M event.

Prerequisites

A pending O&M event exists.

Note

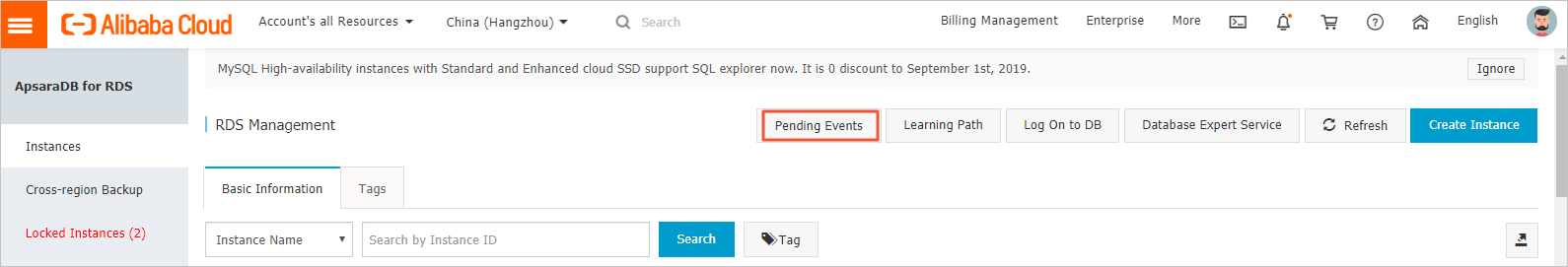

To check whether pending O&M events exist, move the pointer over the 通知 icon in the upper-right corner of the ApsaraDB RDS console.

Precautions

You are notified of ApsaraDB for Redis pending events such as instance migrations or version upgrades at least three days before the events occur. Notifications for high-risk vulnerability fixes are sent three or fewer days before execution due to the urgency of these events. Event notifications are sent by using phone calls, emails, internal messages, or the ApsaraDB for Redis console. To use this feature, log on to the Message Center console, enable ApsaraDB Fault or Maintenance Notifications, and then specify a contact. We recommend that you specify an O&M engineer as the contact.

Figure 2. Message Center settingsMessage Center settings

Procedure

  1. Log on to the ApsaraDB RDS console.

  2. In the left-side navigation pane, click Event Management. In the top navigation bar, select the region in which the RDS instance resides.

    Note

    If a pending O&M event requires you to schedule a time for the O&M operation, a message appears to prompt you to schedule the time at your earliest opportunity.

  3. Optional. On the Scheduled Events tab, configure the periodic switching time.

    Note

    The Set Global Schedule panel provides the global configuration items of proactive O&M events except events that are used to fix high-risk vulnerabilities. After you configure the periodic switching time, the scheduled time of switchovers for newly generated proactive O&M events is automatically changed based on the configured time interval. If you do not configure the periodic switching time, the scheduled time of switchovers for newly generated proactive O&M events is automatically changed based on the maintenance window of your RDS instance. For more information, see Configure a maintenance window.

    1. Click Set Global Schedule.

    2. In the panel that appears, configure the parameters and click Save.

  4. On the Scheduled Events tab, view the details of the event. To change the switching time of the event, select the RDS instance that you want to manage and click Schedule Event.

    Note

    The displayed information varies based on the event type.

  5. In the Schedule Event dialog box, configure the scheduled switching time and click OK.

    Note
    • If you select Earliest Execution Time, the system automatically provides the earliest switching date and time for the next O&M operation. After you save the settings, the RDS instance prepares to switch over and enters the Pending state. If you do not select this option, you can customize the date and time.

    • The time that is specified by the Scheduled Switching Time parameter cannot be later than the time that is specified by the Deadline parameter.

Causes and impacts of events

Cause

Impact

Description

Instance migration

Instance switchover

After a switchover is performed at the scheduled switching time, the following impacts occur:

  • An instance switchover occurs on your RDS instance and the RDS instance stays in the read-only state for up to 30 seconds before all data is synchronized. We recommend that you perform the migration during off-peak hours and make sure that your application is configured to automatically reconnect to your RDS instance. For more information about the impacts of an instance switchover, see Impacts of an instance switchover.

  • You cannot manage your RDS instance by using Data Management (DMS) or Data Transmission Service (DTS). This impact is temporary.

Primary/secondary switchover

SSL certificate update

Backup mode change

Update of the minor engine version

Instance switchover

After a switchover is performed at the scheduled switching time, the following impacts occur:

  • An instance switchover occurs on your RDS instance and the RDS instance stays in the read-only state for up to 30 seconds before all data is synchronized. We recommend that you perform the migration during off-peak hours and make sure that your application is configured to automatically reconnect to your RDS instance. For more information about the impacts of an instance switchover, see Impacts of an instance switchover.

  • You cannot manage your RDS instance by using Data Management (DMS) or Data Transmission Service (DTS). This impact is temporary.

Differences between minor engine versions

Different minor engine versions have different updates. You must take note of the differences between the current minor engine version and the version to which you want to update. For more information, see the relevant release notes. Release notes are available only for the following services:

Upgrade of the database proxy version

Instance switchover

After a switchover is performed at the scheduled switching time, the following impacts occur:

  • An instance switchover occurs on your RDS instance and the RDS instance stays in the read-only state for up to 30 seconds before all data is synchronized. We recommend that you perform the migration during off-peak hours and make sure that your application is configured to automatically reconnect to your RDS instance. For more information about the impacts of an instance switchover, see Impacts of an instance switchover.

  • You cannot manage your RDS instance by using Data Management (DMS) or Data Transmission Service (DTS). This impact is temporary.

Differences between database proxy versions

Different database proxy versions have different updates. You must take note of the differences between the current database proxy version and the database proxy version to which you want to upgrade.

Network upgrade

Instance switchover

After a switchover is performed at the scheduled switching time, the following impacts occur:

  • An instance switchover occurs on your RDS instance and the RDS instance stays in the read-only state for up to 30 seconds before all data is synchronized. We recommend that you perform the migration during off-peak hours and make sure that your application is configured to automatically reconnect to your RDS instance. For more information about the impacts of an instance switchover, see Impacts of an instance switchover.

  • You cannot manage your RDS instance by using Data Management (DMS) or Data Transmission Service (DTS). This impact is temporary.

Change of virtual IP addresses (VIPs)

Some network upgrades may involve cross-zone migrations that change the VIP of your RDS instance. If a client uses a VIP to connect to a cloud database, the connection is interrupted.

Note

To prevent business interruptions, you must use the endpoint in the form of a domain name that is provided by your RDS instance and disable the Domain Name System (DNS) cache feature of the application and the server.
