This topic describes how to upgrade the NVIDIA driver of a Kubernetes cluster GPU node where services are running or no service runs.

Prerequisites

Upgrade the NVIDIA driver of a GPU node where services are running

  1. Run the following command to disable scheduling for the target GPU node:
    kubectl cordon node-name
    Note
    • Only the NVIDIA drivers of Worker nodes can be upgraded.
    • The node-name parameter must be in the format of your-region-name.node-id.
      • your-region-name indicates the name of the region where your cluster is located.
      • node-id indicates the ID of the ECS instance where the target node is located.
      You can run the following command to view node-name:
      kubectl get node

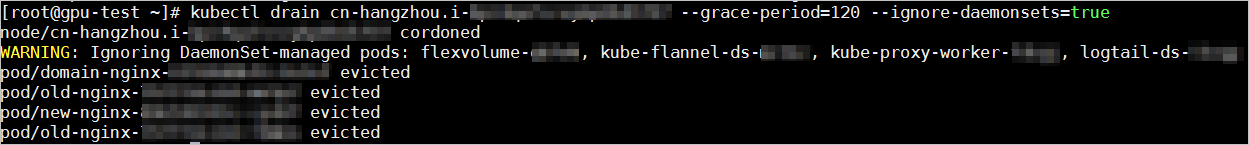

  2. Run the following command to migrate the pods on the target node to other nodes:
    kubectl drain node-name --grace-period=120 --ignore-daemonsets=true


  3. Run the following command to log on to the target node:
    ssh root@xxx.xxx.x.xx

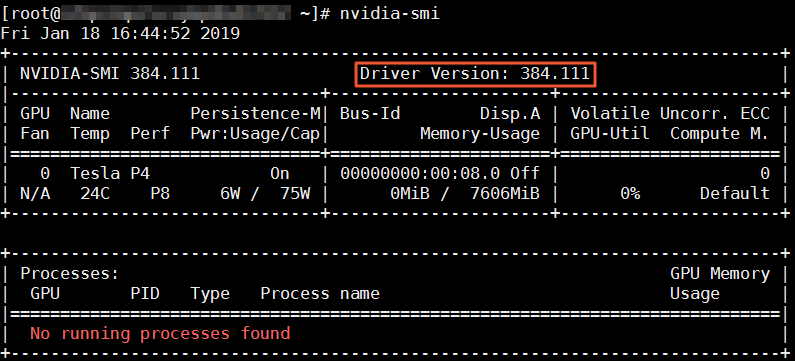

  4. On the target node, run the following command to view the driver version:
    nvidia-smi


  5. Run the following commands to remove the existing driver:
    Note
    • If the existing driver is v384.111, you can directly run the commands in this step.
    • If the existing driver is not v384.111, you must download the correct driver version from NVIDIA Website before running the commands in this step.
    cd /tmp
    curl -O https://cn.download.nvidia.cn/tesla/384.111/NVIDIA-Linux-x86_64-384.111.run
    chmod u+x NVIDIA-Linux-x86_64-384.111.run
    . /NVIDIA-Linux-x86_64-384.111.run --uninstall -a -s -q
  6. Run the following command to restart the target node:
    reboot
  7. Download the driver version that you want from the NVIDIA Website. This example uses v 410.79.
  8. Run the following command to install the downloaded NVIDIA driver in the directory where the driver is downloaded:
    sh . /NVIDIA-Linux-x86_64-410.79.run -a -s -q
  9. Run the following commands to add the following settings to the NVIDIA driver:
    nvidia-smi -pm 1 || true
    nvidia-smi -acp 0 || true
  10. Run the following command to update two device plugins:
    mv /etc/kubernetes/manifests/nvidia-device-plugin.yml /
    mv /nvidia-device-plugin.yml /etc/kubernetes/manifests/
  11. In any path of the Master node, run the following command to enable scheduling for the target node:
    kubectl uncordon node-name

Verify the results

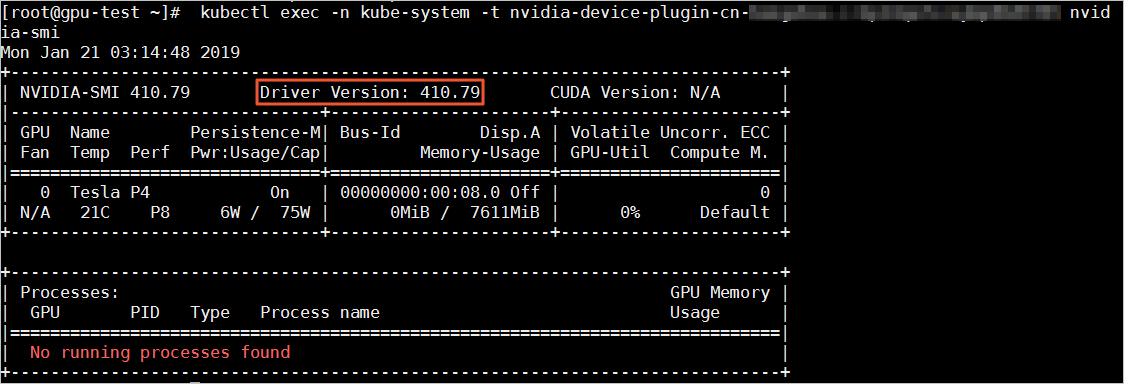

Run the following command on the Master node. Then check the driver version for the target GPU node. The system displays that the driver is v 410.79, indicating the node driver has been upgraded.
Note You need to replace the node-name parameter with your target node name.
kubectl exec -n kube-system -t nvidia-device-plugin-node-name nvidia-smi


Upgrade the NVIDIA driver of a GPU node where no service runs

  1. Run the following command to log on to the target GPU node:
    ssh root@xxx.xxx.x.xx
  2. On the target node, run the following command to view the driver version:
    nvidia-smi


  3. Run the following commands to remove the existing driver:
    Note
    • If the existing driver is v384.111, you can directly run the commands in this step.
    • If the existing driver is not v384.111, you must download the correct driver version from NVIDIA Website before running the commands in this step.
    cd /tmp
    curl -O https://cn.download.nvidia.cn/tesla/384.111/NVIDIA-Linux-x86_64-384.111.run
    chmod u+x NVIDIA-Linux-x86_64-384.111.run
    . /NVIDIA-Linux-x86_64-384.111.run --uninstall -a -s -q
  4. Run the following command to restart the target node:
    reboot
  5. Download the driver version that you want from the NVIDIA Website. This example uses v 410.79.
  6. Run the following command to install the downloaded NVIDIA driver in the directory where the driver is downloaded:
    sh . /NVIDIA-Linux-x86_64-410.79.run -a -s -q
  7. Run the following commands to add the following settings to the NVIDIA driver:
    nvidia-smi -pm 1 || true
    nvidia-smi -acp 0 || true

Verify the results

Run the following command on the Master node. Then check the driver version for the target GPU node. The system displays that the driver is v 410.79, indicating the node driver has been upgraded.
Note You need to replace the node-name parameter with your target node name.
kubectl exec -n kube-system -t nvidia-device-plugin-node-name nvidia-smi
