Simple Log Service:Configure the parameters related to the console pages to embed

Last Updated:Oct 26, 2023

This topic describes how to configure the parameters used to customize the display effect of the console pages that you want to embed.

Simple Log Service allows you to embed console pages into a self-managed website. This way, you can access the pages without the need to log on to the console and perform log query and analysis in a more efficient manner. Simple Log Service also provides a series of UI parameters that you can configure to customize the display settings of the embedded console pages. For more information, see Embed console pages and share log data.

Usage notes

The console pages of Simple Log Service are embedded in other web pages in the form of an iframe. By default, browsers block pop-ups and log download operations. For example, when you click the link to a file, your browser blocks the corresponding pop-up. In this case, you must modify the attribute configurations of the iframe.

  • In an iframe, your attempt to visit a console page when you click the link to the page is blocked due to the security policy of your browser. To visit the page, you must add allow-popups to the sandbox field of the iframe.

    <iframe
      src="https://sls4service.console.aliyun.com/lognext/project/**..."
      sandbox="allow-scripts allow-popups"
    />
  • In an iframe, log download operations that are supported on the console pages are blocked due to the security policy of your browser. To download logs, you must add allow-popups and allow-downloads to the sandbox field of the iframe.

    <iframe
      src="https://sls4service.console.aliyun.com/lognext/project/**..."
      sandbox="allow-scripts allow-popups allow-downloads"
    />

URL format

The UI parameters are URL encoded in the following format:

https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?Parameter1&Parameter2
Note
  • All parameters except the ${ProjectName}, ${LogstoreName}, ${savedsearchID}, and ${dashboardID} parameters must be placed after the question mark (?) at the end of a URL.

  • You can configure multiple parameters at a time. The parameters are concatenated by using ampersands (&).

  • To use the dark theme, you can add theme=dark&sls_iframe=true to a URL.

Common parameters

The following table describes the common parameters that you can configure to customize console pages.

Parameter

Type

Required

Description

Example

hiddenBack

boolean

No

Specifies whether to hide the back icon for the current project.

hiddenBack=true

hiddenChangeProject

boolean

No

Specifies whether to hide the GUI element that is used to switch between projects.

hiddenChangeProject=true

hiddenOverview

boolean

No

Specifies whether to hide the entry point to the Project Overview tab of the project.

hiddenOverview=true

ignoreTabLocalStorage

boolean

No

Specifies whether to disable the browsing of accessed tabs.

ignoreTabLocalStorage=true

queryTimeType

long

No

The time range of a query. For more information, see Valid values of the queryTimeType parameter. Valid values:

  • Integers ranging from 1 to 26: Each integer specifies a time range.

  • -2: a custom relative time range. You must specify a start time and an end time. Example: start:-10m,end:now.

  • -3: a custom time frame. You must specify a start time and an end time. Example: start:-2h,end:absolute.

  • 99: a custom time range. If you set queryTimeType to 99, you must set the startTime and endTime parameters to timestamps.

queryTimeType=1

startTime

timestamp (date)

No

The start time of a query. This parameter takes effect only when you set queryTimeType to 99.

startTime=1547776643

endTime

timestamp (date)

No

The end time of a query. This parameter takes effect only when you set queryTimeType to 99.

endTime=1547776731

Table 1. Valid values of the queryTimeType parameter

queryTimeType

Description

1

1 minute (relative)

2

15 minutes (relative)

3

1 hour (relative)

4

4 hours (relative)

5

1 day (relative)

6

1 week (relative)

7

30 days (relative)

8

1 minute (time frame)

9

15 minutes (time frame)

10

1 hour (time frame)

11

4 hours (time frame)

12

1 day (time frame)

13

1 week (time frame)

14

30 days (time frame)

15

Today (time frame)

16

Previous day (time frame)

17

Two days before (time frame)

18

This week (time frame)

19

Previous week (time frame)

20

This month (time frame)

21

This quarter (time frame)

22

Today (relative)

23

5 minutes (relative)

24

This year (time frame)

25

This month (relative)

26

Previous month (time frame)

27

This week (relative)

99

A custom time range (If you set queryTimeType to 99, you must configure the startTime and endTime parameters.)

The following examples show some URLs and the pages that are displayed based on the UI parameters in the URLs:

  • To hide the back icon for the current project, the GUI element that is used to switch between projects, and the entry point to the Project Overview tab of the project, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?hiddenBack=true&hiddenChangeProject=true&hiddenOverview=true
    Hide settings
  • To hide the back icon for the current project, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?hiddenBack=true
    Hide the back icon
  • To specify the time range of a query, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?queryTimeType=3
    Time picker

Parameters related to the query and analysis page of a Logstore

The following table describes the parameters that you can configure to customize the query and analysis page of a Logstore.

Parameter

Type

Required

Description

Example

ProjectName

string

Yes

The name of the project.

website-01

LogstoreName

string

Yes

The name of the Logstore.

logstore01

queryString

string

No

The query statement that is encoded in Base64.

For example, the *|select count(*) statement is Base64 encoded into KnxzZWxlY3QgY291bnQoKik=.

KnxzZWxlY3QgY291bnQoKik=

readOnly

boolean

No

Specifies whether to hide the GUI elements that are used to edit or modify the configurations on the query and analysis page of the Logstore. The GUI elements include Share, Index Attributes, Save Search, and Save as Alert.

readOnly=true

encode

string

No

The encoding format of the query string. To prevent special characters from appearing in the value of the queryString parameter, we recommend that you set the encode parameter to base64. If you specify Base64 encoding, the value of the queryString parameter is a Base64-encoded string.

encode=base64

hiddenEtl

boolean

No

Specifies whether to hide the GUI element that redirects to the data transformation page of the current Logstore.

hiddenEtl=true

hiddenShare

boolean

No

Specifies whether to hide the icon that is used to share the URL of the current Logstore.

hiddenShare=true

hiddenIndexSetting

boolean

No

Specifies whether to hide the button that redirects to the index configuration page of the current Logstore.

hiddenIndexSetting=true

hiddenSavedSearch

boolean

No

Specifies whether to hide the button that redirects to the saved search configuration page of the current Logstore.

hiddenSavedSearch=true

hiddenAlert

boolean

No

Specifies whether to hide the button that is used to configure an alert for the current Logstore.

hiddenAlert=true

hiddenQuickAnalysis

boolean

No

Specifies whether to automatically hide the Quick Analysis pane.

hiddenQuickAnalysis=true

hiddenDownload

boolean

No

Specifies whether to hide the icon that is used to download the data in the current Logstore.

hiddenDownload=true

hiddenModeSwitch

boolean

No

Specifies whether to hide the GUI element that is used to configure the Dedicated SQL feature for the current Logstore.

hiddenModeSwitch=true

keyDispalyMode

string

No

The display mode of logs.

  • single: A log is displayed in a single line.

  • multi: A log is displayed in multiple lines.

keyDispalyMode=single

hiddenLogChart

boolean

No

Specifies whether to hide the Graph tab of the current Logstore.

hiddenLogChart=true

hiddenLogReduce

boolean

No

Specifies whether to hide the LogReduce tab of the current Logstore.

hiddenLogReduce=true

The following examples show some URLs and the pages that are displayed based on the UI parameters in the URLs:

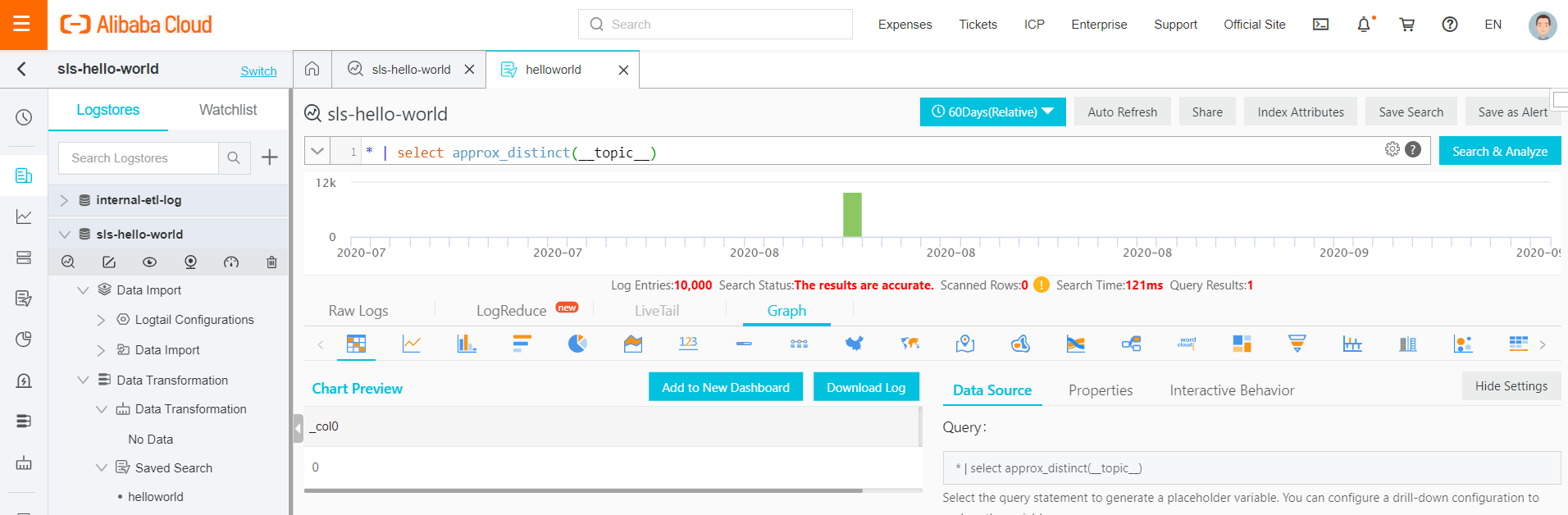

  • To specify a query statement, use the following URL:

    For example, the *|select count(*) statement is Base64 encoded into KnxzZWxlY3QgY291bnQoKik=.

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?encode=base64&queryString=KnxzZWxlY3QgY291bnQoKik=
    Query statement
  • To hide the buttons that are used to edit or modify the configurations on the query and analysis page of the Logstore such as Index Attributes and Save as Alert, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?readOnly=true
    Configure the readOnly parameter
  • To hide the Graph and LogReduce tabs of the Logstore, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?hiddenLogChart=true&hiddenLogReduce=true
    Hide Graph and LogRReduce tabs

Parameters related to the saved search page of a Logstore

The following table describes the parameters that you can configure to customize the saved search page of a Logstore.

Parameter

Type

Required

Description

Example

ProjectName

string

Yes

The name of the project.

website-01

savedSearchName

string

No

The name of the saved search.

quick-search01

savedsearchID

string

Yes

The ID of the saved search.

Note

After you create a saved search, you can obtain the ID of the saved search in the URL. For more information, see Obtain the ID of a saved search.

savedsearch-1621845672511-314813

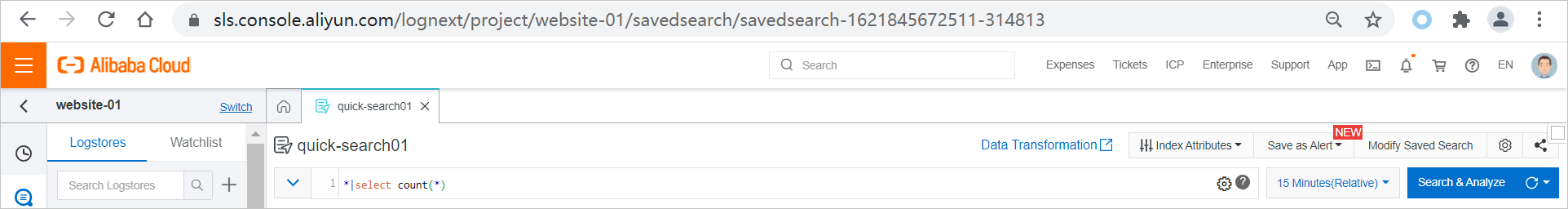

The following example shows a URL and the page that is displayed based on the UI parameters in the URL:

https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/savedsearch/${savedsearchID}
Saved search page

Parameters related to a dashboard page

The following table describes the parameters that you can configure to customize a dashboard page.

Parameter

Type

Required

Description

Example

ProjectName

string

Yes

The name of the project.

website-01

dashboardName

string

No

The name of the dashboard.

Website analysis log

dashboardID

string

Yes

The ID of the dashboard.

Note

After you create a dashboard, you can obtain the ID of the dashboard in the URL. For more information, see ListDashboard.

dashboard-1609817292009-742588

filters

string

No

The filter conditions. The value must be transcoded by the encodeURIComponent() function.

For example, filters=key1:value1&filters=key2:value2 is transcoded into filters=key1%3Avalue1%26filters%3Dkey2%3Avalue2.

filters=key1%3Avalue1%26filters%3Dkey2%3Avalue2

token

JsonString

No

The variables that you want to replace. The value must be transcoded by the encodeURIComponent() function.

For example, token=[{"key": "projectname","value":"1"}, {"key": "region", "value": "hangzhou"}] is transcoded into token=%5B%7B%22key%22%3A%20%22projectname%22%2C%22value%22%3A%221%22%7D%2C%20%7B%22key%22%3A%20%22region%22%2C%20%22value%22%3A%20%22hangzhou%22%7D%5D.

token=%5B%7B%22key%22%3A%20%22projectname%22%2C%22value%22%3A%221%22%7D%2C%20%7B%22key%22%3A%20%22region%22%2C%20%22value%22%3A%20%22hangzhou%22%7D%5D

readOnly

boolean

No

Specifies whether to hide the GUI elements that are used to edit or configure the settings on the dashboard page. The GUI elements include Edit and Alerts.

readOnly=true

hiddenFilter

boolean

No

Specifies whether to hide the entry point to conditional filtering.

hiddenFilter=true

hiddenToken

boolean

No

Specifies whether to hide the entry point to variable replacement.

hiddenToken=true

hiddenProject

boolean

No

Specifies whether to hide the information about the project.

hiddenProject=true

hiddenEdit

boolean

No

Specifies whether to hide the GUI element that is used to edit the configurations on the dashboard page.

hiddenEdit=true

hiddenReport

boolean

No

Specifies whether to hide the GUI element that is used to subscribe to the dashboard.

hiddenReport=true

hiddenTitleSetting

boolean

No

Specifies whether to hide the field that is used to configure the title of the dashboard.

hiddenTitleSetting=true

hiddenReset

boolean

No

Specifies whether to hide the GUI element that is used to reset the time for the dashboard.

hiddenReset=true

hiddenModeSwitch

boolean

No

Specifies whether to hide the GUI element that is used to configure the Dedicated SQL feature.

hiddenModeSwitch=true

autoFresh

string

No

The interval at which the data on the dashboard is refreshed. Examples: 30 seconds and 5 minutes. The smallest interval is 15 seconds.

autoFresh=5m

The following examples show some URLs and the pages that are displayed based on the UI parameters in the URLs:

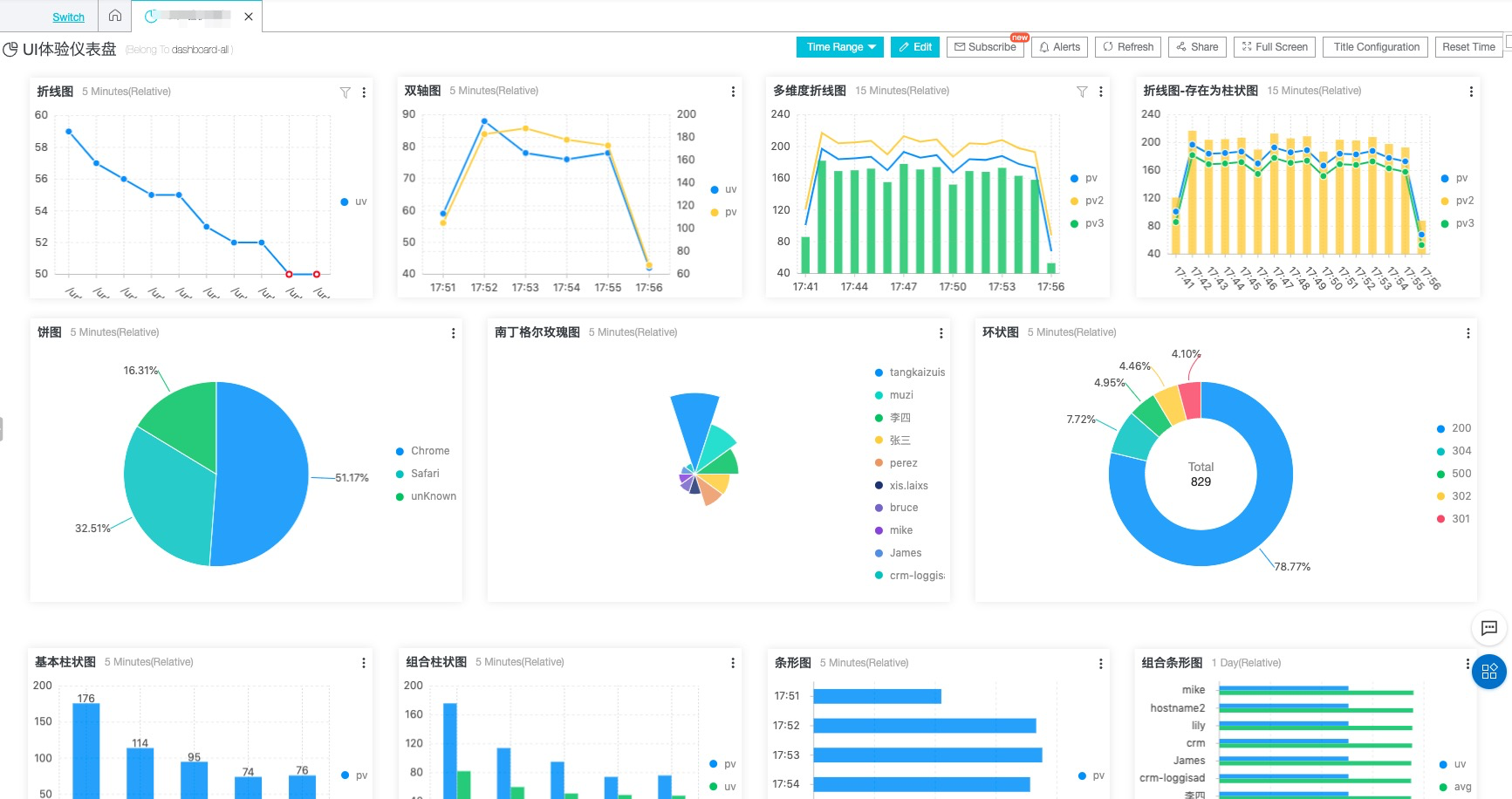

  • To enable the read-only mode for the dashboard page, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/dashboard/${dashboardID}?readOnly=true
    Read-only dashboards
  • To add the key1=value1 and key2=value2 conditions, use the following URL. The filters=key1:value1&filters=key2:value2 conditions are transcoded into filters%3Dkey1%3Avalue1%26filters%3Dkey2%3Avalue2.

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/dashboard/${dashboardID}?filters%3Dkey1%3Avalue1%26filters%3Dkey2%3Avalue2
    Filter dashboards
  • To add the projectname=1 and region=hangzhou conditions to replace variables, use the following URL. token=[{"key": "projectname","value":"1"}, {"key": "region", "value": "hangzhou"}] is transcoded into token=%5B%7B%22key%22%3A%20%22projectname%22%2C%22value%22%3A%221%22%7D%2C%20%7B%22key%22%3A%20%22region%22%2C%20%22value%22%3A%20%22hangzhou%22%7D%5D.

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/dashboard/${dashboardID}?token=%5B%7B%22key%22%3A%20%22projectname%22%2C%22value%22%3A%221%22%7D%2C%20%7B%22key%22%3A%20%22region%22%2C%20%22value%22%3A%20%22hangzhou%22%7D%5D
    Configure conditions to replace variables
  • To refresh the data on the dashboard at 5-minute intervals, use the following URL:

    https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/dashboard/${dashboardId}?autoFresh=5m
    Automatic update

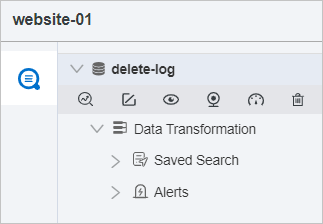

Tree structure parameters

The following table describes the tree structure parameters that you can configure to customize the left-side navigation pane of console pages.

Parameter

Type

Required

Description

Example

treeConfig

JSON

No

The tree structure of the left-side navigation pane. If you set treeEncode to base64, you must encode the value of treeConfig in Base64.

For example, {"logstore":{"expand":true,"resourceList":["delete-log"],"template":["savedsearch","alert"]}} is Base64 encoded into eyJsb2dzdG9yZSI6eyJleHBhbmQiOnRydWUsInJlc291cmNlTGlzdCI6WyJkZWxldGUtbG9nIl0sInRlbXBsYXRlIjpbInNhdmVkc2VhcmNoIiwiYWxlcnQiXX19.

eyJsb2dzdG9yZSI6eyJleHBhbmQiOnRydWUsInJlc291cmNlTGlzdCI6WyJkZWxldGUtbG9nIl0sInRlbXBsYXRlIjpbInNhdmVkc2VhcmNoIiwiYWxlcnQiXX19

treeEncode

string

No

The encoding format of treeConfig. This parameter is empty by default, which indicates that the value of treeConfig is not encoded. Only Base64 encoding is supported.

treeEncode=base64

The following example shows the fields in the treeConfig parameter:

{
    "logstore": {
        "search": true,
        "expand": true,
        "resourceList": [
            "L1",
            "L2"
        ],
        "template": [
            "favor",
            "logtail",
            "import",
            "etl",
            "savedsearch",
            "alert",
            "export",
            "consumergroup",
            "dashboard"
        ]
    },
    "machineGroup": {
        "search": true,
        "resourceList": [
            "m1",
            "m2"
        ]
    },
    "savedSearch": {
        "search": true,
        "resourceList": [
            "s1",
            "s2"
        ]
    },
    "alarm": {
        "search": true,
        "resourceList": [
            "a1",
            "a2"
        ]
    },
    "dashboard": {
        "search": true,
        "resourceList": [
            "d1",
            "d2"
        ]
    },
    "etl": {
        "search": true,
        "resourceList": [
            "e1",
            "e2"
        ]
    }
}
Table 2. Fields in the treeConfig parameter

Field

Type

Required

Description

logstore

object

No

The entry points to Logstores.

template

string[]

No

The entry points to some features of Logstores. For more information, see Parameters of the template field.

machineGroup

object

No

The entry points to machine groups.

savedSearch

object

No

The entry points to saved searches.

alert

object

No

The entry points to alerts.

dashboard

object

No

The entry points to dashboards.

etl

object

No

The entry points to data transformation jobs.

Table 3. Parameters of resources in the logstore field

Parameter

Type

Required

Description

search

boolean

No

Specifies whether to display the search box. Default value: true, which indicates that the search box is displayed.

resourceList

String[]

No

The current resources that are displayed. If you set this parameter to an empty array, an empty list is displayed. If you do not configure this parameter, all resources are displayed. By default, all resources are displayed.

expand

boolean

No

Specifies whether to expand the list. Default value: false, which indicates that the list is not expanded. This parameter is valid only for a Logstore list.

Table 4. Parameters of the template field

Parameter

Type

Required

Description

favor

string

No

Watchlist

logtail

string

No

Logtail Configurations

import

string

No

Data Import

etl

string

No

Data Transformation

savedsearch

string

No

Saved Search

alert

string

No

Alerts

export

string

No

Export

consumergroup

string

No

Data Consumption

dashboard

string

No

Dashboard

The following example shows a URL and the page that is displayed based on the UI parameters in the URL:

To customize the left-side navigation pane, use the following URL:

https://sls4service.console.aliyun.com/lognext/project/${ProjectName}/logsearch/${LogstoreName}?treeconfig=eyJsb2dzdG9yZSI6eyJleHBhbmQiOnRydWUsInJlc291cmNlTGlzdCI6WyJkZWxldGUtbG9nIl0sInRlbXBsYXRlIjpbInNhdmVkc2VhcmNoIiwiYWxlcnQiXX19&hiddenBack=true&hiddenChangeProject=true&hiddenOverview=true&treeEncode=base64&ignoreTabLocalStorage=true
Tree structure

Advanced parameters related to a dashboard

When you embed a dashboard by using an iframe, you cannot calculate the height of the iframe. In this case, two scroll bars may appear: the scroll bar of the dashboard and the scroll bar of the iframe. To resolve the issue, you can configure advanced dashboard parameters to adjust the dashboard height in adaptive mode.

You can use the postmessage method of Simple Log Service to obtain the height of the dashboard and specify the height for the inline frame. Sample code:

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>POST message test</title>
</head>
<style>
  * {
    padding: 0;
    margin: 0;
  }

  iframe {
    display: block;
    width: 100%;
  }
</style>
<body>
  <script>
    window.addEventListener('message',function(e){
      console.log(e.data.dashboardHeight)
      document.getElementById('test').style.height = e.data.dashboardHeight + 'px'
    });
  </script>
  <div style="height: 700px;">somethings</div>
  <iframe id="test" src="http://sls4service.console.aliyun.com/lognext/project/${projectName}/dashboard/${dashboardName}?product=${productCode}">
</body>
</html>
