This topic describes the Kubernetes cluster network failures caused by cluster security group settings, and provides corresponding resolutions.

Symptom

Containers cannot communicate with each other over the Kubernetes cluster network.

Causes

  • A relevant ingress security group rule is removed. The following are the details of the rule: the ingress Authorization Objects is Pod Network CIDR and the Protocol Type is All.
  • Newly added ECS instances and the Kubernetes cluster are located in different security groups.

Resolution

Cause 1: A relevant ingress security group rule is removed. The following are details of the rule: the ingress Authorization Objects is Pod Network CIDR and the Protocol Type is All.
  1. Log on to the Container Service console.
  2. In the left-side navigation pane under Kubernetes, click Clusters.
  3. Click the target cluster name to view cluster details.
  4. In the Cluster Resource area, click VPC.

  5. In the Network Resources area, click the number on the right of Security Group.

  6. In the Actions column of the target security group, click Add Rules.
  7. On the Ingress page, click Add Security Group Rule in the upper-right corner.

  8. Set Protocol Type and Authorization Objects.

    Select All from the Protocol Type drop-down list.

    Enter the Pod Network CIDR of the Kubernetes cluster for Authorization Objects.
    Note
    • You can view the Pod Network CIDR of the Kubernetes cluster in the Cluster Information area on the cluster basic information page.

    • For more information about theAuthorization Objects settings, see Scenarios.

Verify the results

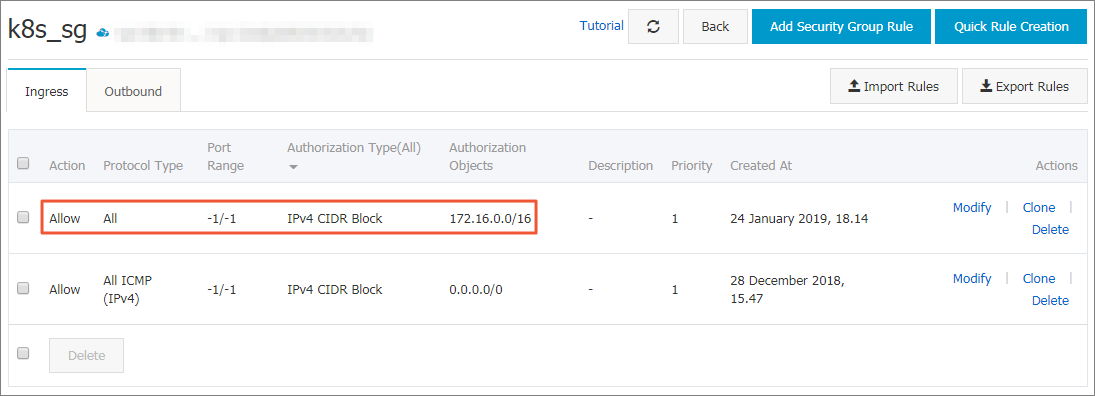

The required ingress security group rule is added. The following are details of the rule: the ingress Authorization Objects is Pod Network CIDR and the Protocol Type is All.

Cause 2: Newly added ECS instances and the Kubernetes cluster are located in different security groups.
  1. Log on to the Container Service console.
  2. In the left-side navigation pane, click Clusters.
  3. Click the target Cluster Name.
  4. In the Cluster Resource area, click VPC.

  5. On the VPC Details page, click the number on the right of Security Group in the Network Resources area.

  6. On the Security Groups page, view the target security group name.

  7. In the Elastic Compute Service console, click Instances in the left-side navigation pane.
  8. On the Instances page, choose More > Network and Security Group > Add to Security Group in the Actions column of the target instance.

  9. Click the drop-down arrow on the right of the Security Group box, and enter the cluster security group name obtained in step 6.

  10. Click OK.
Verify the results
  1. In the left-side navigation pane of the Elastic Computer Service console, click Instances and then click the target instance.
  2. In the left-side navigation pane, click Security Groups.
  3. The Security Groups area shows that the target ECS instance has been added to the security group to which the Kubernetes cluster belongs.
