This topic describe how to configure the display mode of a dashboard. By default, you can view all analysis charts in a dashboard in the display mode. When you configure the display mode, you can add chart elements, enable automatic refresh, and set the title display mode.

To open a dashboard in the Log Service console, you can click the Dashboard icon on the left-side navigation bar of the Logstores page, and then click the dashboard name in the Dashboard list. Alternatively, you can expand the dashboard list in the left-side navigation pane on the Search & Analysis page or Saved Search page, and then click the dashboard name.

Display settings

  • Dashboard display settings

    In the display mode of a dashboard, the following buttons are provided on the page: Please Select, Edit, Alerts, Refresh, Share, Full Screen, Title Configuration, and Reset Time.

  • Analysis chart display settings

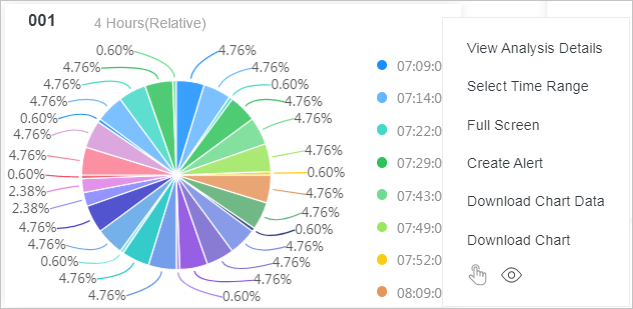

    In the display mode, you can move the pointer over the More icon in the upper-right corner of the chart to expand the shortcut menu to obtain details of the chart.
    Note Different charts in a dashboard have different shortcut menus. For example, you cannot use the shortcut menu of a custom chart or Markdown table to view analysis details because they are not analysis charts.

Set a query time range for a dashboard of a Logstore

All charts in a dashboard use the query time range that is set for the dashboard. To set a query time range for a single chart, follow the instructions described in Set the query time range for a chart.
Note When you click the Please Select button on the dashboard page, you can select a query time range. However, the selected query time range is a temporary setting and will not be saved. Every time you re-open the dashboard, the system will display the analysis results of the default query time range.
  1. Log on to the Log Service console, and then click the target project name.
  2. In the left-side navigation pane, click the Dashboard icon.
  3. Click the Logstore management icon icon next to the dashboard, and then select Details.
  4. Click Please Select.
  5. Select a time range, and then click OK.
    You can set one of the following time ranges:
    • Relative: queries log data obtained in a time range of 1 minute, 5 minutes, 15 minutes, or other time ranges that end with the current time, accurate to the second. For example, if the current time is 19:20:31 and you select 1Hour as the relative time, the charts in the dashboard query log data obtained from 18:30:31 to 19:20:31.
    • Time Frame: If you select or customize a time range less than one hour (for example, 1 minute, 5 minutes, and 15 minutes), log data obtained in the time range that ends with the current time is queried, accurate to the minute. If you select or customize a time range greater than one hour, log data obtained on the hour before the current time is queried. For example, if the current time is 19:20:31 and you select 1Hour as the time frame, the charts in the dashboard query log data obtained from 18:00:00 to 19:00:00.
    • Custom: queries log data obtained in a specified time range.
  6. Mover the pointer over the Please Select button to confirm the specified time range.
    Select a query time range

Enter the edit mode

Click Edit to enter the edit mode of the dashboard. In the edit mode, you can add markdown charts, custom charts, text, icons and other elements to the dashboard. For more information, see Markdown charts and Edit a dashboard.

Create and modify an alert notification

On the dashboard page, choose Alerts > Create to create an alert notification. Choose Alerts > Modify to modify an alert notification. An alert notification must be associated with one or more charts.

For more information, see Configure an alert.

Set a refresh frequency

You can manually refresh the dashboard, or set an automatic refresh interval for the dashboard.
  • To manually refresh the dashboard, choose Refresh > Once.
  • To set an automatic refresh interval for the dashboard, choose Refresh > Auto Refresh, and then select an interval.

    The Auto Refresh interval can be 15 seconds, 60 seconds, 5 minutes, or 15 minutes.

Note If your browser is inactive or the screen goes to sleep, the automatic refresh interval may be inaccurate.
Refresh frequency

Share the dashboard

To share the dashboard with authorized users, click Share to copy the link of the dashboard page and then send the link to the users. The shared dashboard page will inherit the settings of the dashboard at the time of sharing.

Note Before you share the dashboard with other users, you must grant the relevant permissions to them.

Display the dashboard in full screen

Click Full Screen. The charts in the dashboard are displayed in full screen.

Set the chart title format

Click Title Configuration, and then select one of the following formats:
  • Single-line Title and Time Display
  • Scrolling Title and Time Display
  • Alternate Title and Time Display
  • Title Only
  • Time Only

Reset the query time range

To restore the default query time ranges of all the charts in the dashboard, click Reset Time.

Select chart view

  • View analysis details of a chart

    To view analysis details of a chart, move the pointer over the More icon in the upper-right corner of the chart, and then select View Analysis Details. You are redirected to the corresponding Search & Analysis page, on which the query statement and attribute settings are displayed.

  • Set the query time range for a chart

    To set the query time range for a chart, move the pointer over the More icon in the upper-right corner of the chart, and then select Select Time Range. The settings are valid only for the current chart.

  • Set an alert notification for a chart

    To set an alert notification for a chart, move the pointer over the More icon in the upper-right corner of the chart, and then select Create Alert. For more information, see Configure an alert.

  • Download log data of a chart

    To download log data of a chart, move the pointer over the More icon in the upper-right corner of the chart, and then select Download Log.

  • Download a chart

    To download a chart, move the pointer over the More icon in the upper-right corner of the chart, and then select Download Chart.

  • Check whether drill-down analysis is configured for a chart

    To check whether drill-down analysis is configured for a chart, move the pointer over the More icon in the upper-right corner of the chart. Then, check the color of the hand icon at the bottom of the shortcut menu. If the icon is red, drill-down analysis is configured for the chart. If the icon is gray, no drill-down analysis is configured for the chart.
