The outbound-inbound traffic and inbound-outbound traffic of Alibaba cloud firewall refer to Internet-oriented traffic, known as north-south traffic. You can customize the access control policy for north-south traffic via Alibaba cloud firewall access control feature, to precisely control the access traffic and to protect your network security.

Background information

For example, an ECS (host) IP address is 10.1.1.1, and the EIP is 200.2.2.2, you shall set inbound-outbound traffic so that the host can only access the domain of www.abc.com.

Note Elastic IP Address (EIP) is a public IP address resource that can be independently purchased and owned. For more information of EIP, refer to What are Elastic IP Addresses.

Steps

  1. On Alibaba cloud firewall console, position to Inbound-outbound traffic tab in Access control tab.
  2. Configure inbound-outbound traffic so that the host can only access www.abc.com.
    • In the new inbound-outbound policy, for Origin type, select IP and for Access origin, enter 200.2.2.2/32.
    • For Destination type, select Domain name, and for Destination, enter www.abc.com.
      Note For Destination type, select Domain name without protocol type configuration.
    • For Destination port, enter 0/0.
    • For Application, according to domain type, select HTTP or HTTPS.
    • For Action, select Release.
    • Enter description information. We recommend that you enter a description of the policy and its purpose.
  3. Configure inbound-outbound traffic to release DNS resolution.
    • In the new inbound-outbound policy, for Origin type, select IPand for Access origin, enter 200.2.2.2/32.
    • For Destination type, select IP, and for Destination, enter 0.0.0.0/0.
    • For Protocol type, select UDP.
    • For Destination port, enter 53/53.
    • For Application, select ANY.
    • For Action, select Release.
    • Enter description information. We recommend that you enter a description of the policy and its purpose.
  4. Set traffic except the release policy to Reject.
    • In the new inbound-outbound policy, for Origin type, select IP, and for Access origin, enter 0.0.0.0/0.
    • For Destination type, select IP, and for Destination, enter 0.0.0.0/0.
    • For Protocol type, select ANY.
    • For Destination port, enter 0/0.
    • For Application, select ANY.
    • For Action, select Reject.
    • Enter description information. We recommend that you enter a description of the policy and its purpose.
  5. After the policy configuration is complete, confirm that priorities of the first release www.abc.com domain policy and the second release DNS policy are higher than the third Reject all traffic policy.
    Note To adjust priority of the policy, refer to Set or modify the priority of an access control policy.

What to do next

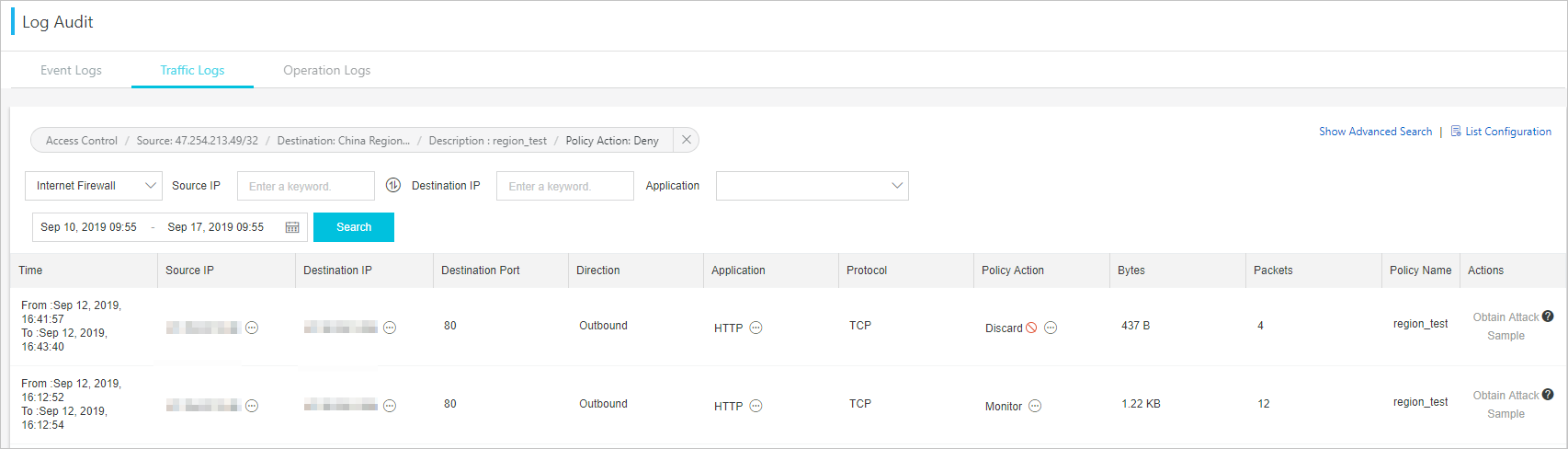

Once the access control policy configuration is complete, you can use the number of hits in Access control page to observe the condition of hits. In Traffic log page, you can view hits done by the policy.
