The outbound-inbound traffic and inbound-outbound traffic of Alibaba cloud firewall refer to Internet-oriented traffic, known as north-south traffic. You can customize the access control policy for north-south traffic via Alibaba cloud firewall access control feature, to precisely control the access traffic and to protect your network security.

Background information

For example, an ECS (host) IP address is 10.1.1.1, and the EIP is 200.2.2.2, you shall set that only the TCP 80 port of the host can be accessed by outbound to inbound traffic.

Note Elastic IP Address (EIP) is a public IP address resource that can be independently purchased and owned. For more information of EIP, refer to What are Elastic IP Addresses.

Steps

Access control of outbound-inbound traffic and inbound-outbound traffic allows simplified configuration process of customized IP address book. It can effectively reduce the number of policies and improve configuration efficiency.

  1. On Alibaba cloud firewall console, position to Outbound-inbound traffic tab in Access control tab.
  2. Configure the TCP 80 port of host that allows to be accessed by outboard-inbound traffic.
    • In the new outbound-inbound policy, select IP for Origin type, and enter 0.0.0.0/0 for Access origin.
    • For Destination type, select IP. Enter 200.2.2.2/32as Destination.
    • For Protocol type, select TCP.
    • For Destination port, enter 80/80.
    • For Application, select ANY.
    • For Action, select Release.
    • Enter description. We recommend that you enter a description of the policy and its purpose.
  3. Configure the outbound-inbound access control policy that rejects all external traffic to the host.
    • In the new outbound-inbound policy, for Origin type, select IP , and for Access origin enter 0.0.0.0/0.
    • For Destination type, select IP. Enter 0.0.0.0/0as Destination.
    • For Protocol type, select ANY.
    • For Destination port, enter 0/0 to refer to all ports.
    • For Application, select ANY.
    • For Action, select Reject.
    • Enter description. A description of the policy and its objective are recommended here.
  4. Once the policy configuration is complete, confirm the first Release port 80 Policy priority is higher than the Second Configuration Reject all traffic of policy.
    Note To adjust priority of the policy, refer to Set or modify the priority of an access control policy.

What to do next

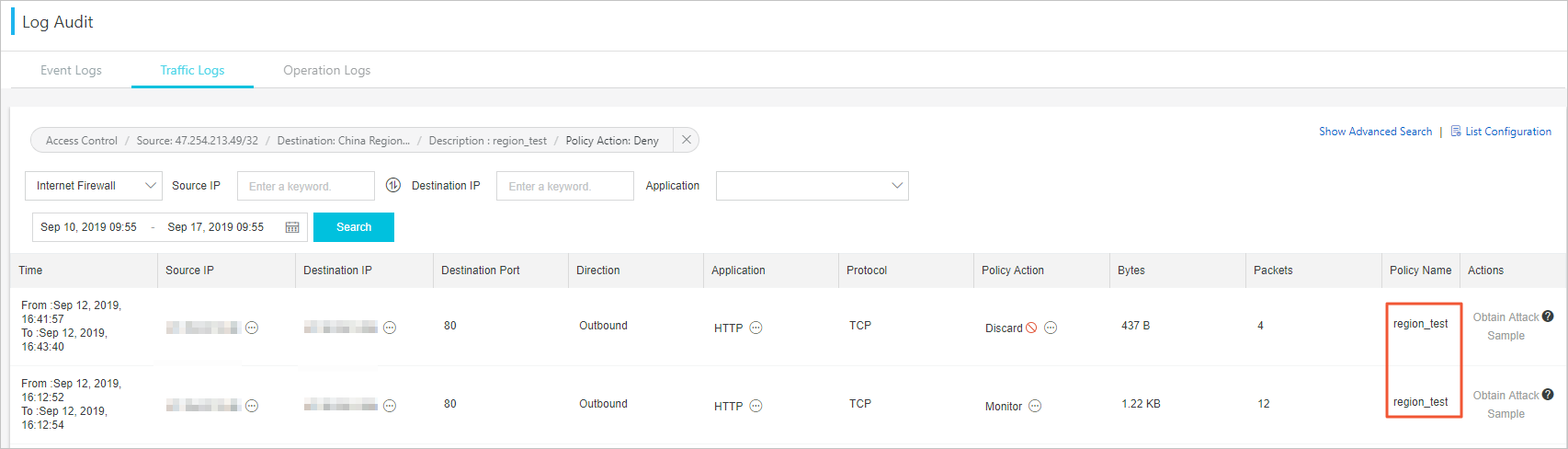

Once the access control policy configuration is complete, you can use the number of hits in Access control page to observe the condition of hits. In Traffic log page, you can view hits done by the policy.
traffic log
