This topic describes how to query audit logs of an ApsaraDB for Redis instance. In the ApsaraDB for Redis console, you can view audit logs in a specified time range and filter audit logs that match specified conditions.

Prerequisites

The new version of the audit log feature is enabled. For more information, see Enable the new version of the audit log feature.

Background

Audit logs provide a detailed insight into the status of your ApsaraDB for Redis instance. You can use audit logs to view request records. This allows you to check records of modify and delete operations and find the cause of sudden increases in database resource consumption.

View audit logs

  1. Log on to the ApsaraDB for Redis console.
  2. In the top navigation bar, select the region where the target instance is located.
  3. On the Instances page, click the Instance ID of the target instance.
  4. The Instance Information page appears. In the left-side navigation pane, choose Logs > Audit Log.
  5. On the Audit Log page, you can check the audit log details for the instance.

Filter audit logs

You can define different conditions to filter audit logs.

  1. Log on to the ApsaraDB for Redis console.
  2. In the top navigation bar, select the region where the target instance is located.
  3. On the Instances page, click the Instance ID of the target instance.
  4. The Instance Information page appears. In the left-side navigation pane, choose Logs > Audit Log.

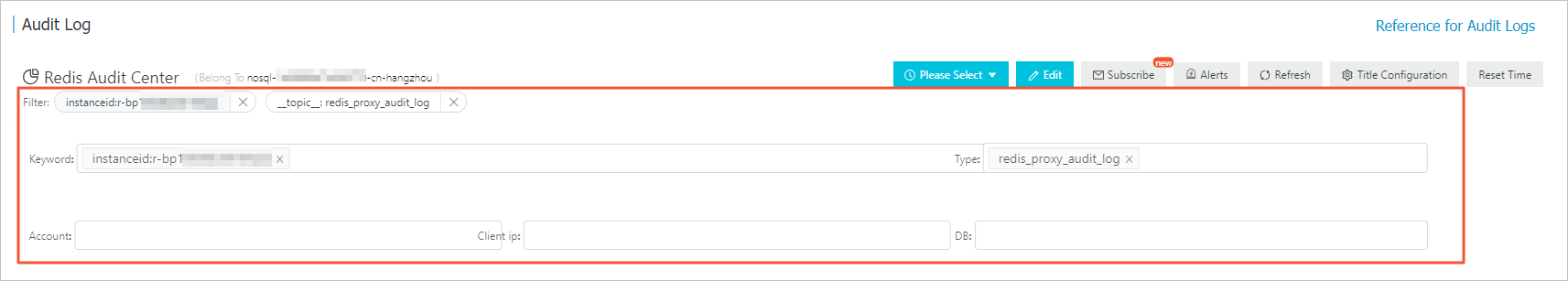

  5. On the Audit Log page, you can define conditions to filter audit logs.
    Set filter conditions
    Table 1. Filter conditions
    Filter condition Description
    Keyword Filters audit logs by keyword, such as the client IP address, executed commands, accounts, and extended information.
    Note
    • The Keyword filed supports exact match. You must enter complete information in this field.
      • For example, you must enter a complete IP address, such as 192.168.1.1, instead of 192.168 or 1.1.
      • You must enter a complete command, such as AUTH or auth, instead of au.
    • You must enclose keywords that contain colons within double quotation marks (""), for example, "userId:1".
    Type The type of audit logs. Valid values:
    • redis_audit_log: the audit log of a data shard.
    • redis_proxy_audit_log: the audit log of a proxy server.
    Account The account used to connect to the ApsaraDB for Redis instance. Default value: null.
    Client ip The client IP address used to connect to the ApsaraDB for Redis instance.
    DB The database of which you want to query the audit logs.

View audit logs within a specified time range

You can view audit logs within a specified time range by using the time picker.

  1. Log on to the ApsaraDB for Redis console.
  2. In the top navigation bar, select the region where the target instance is located.
  3. On the Instances page, click the Instance ID of the target instance.
  4. The Instance Information page appears. In the left-side navigation pane, choose Logs > Audit Log.
  5. On the Audit Log page, click Please Select.
    Click the time picker
  6. In the Time pane, specify the time range to query audit logs.

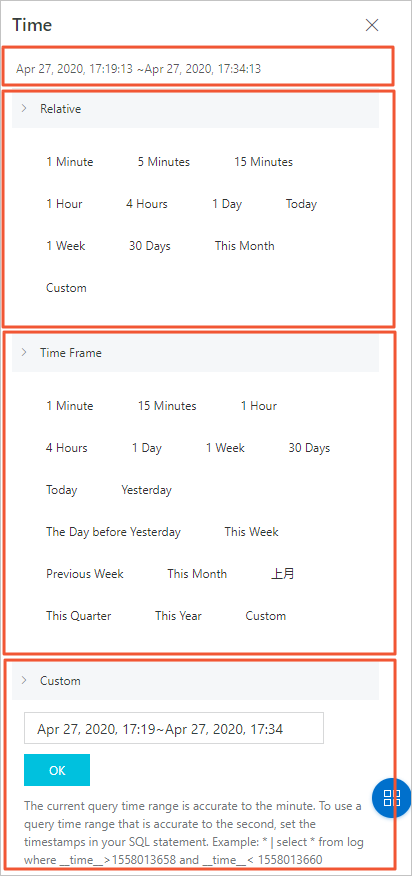

    Time picker
    Table 2. Sections in the Time pane
    No. Section name Description
    1 Time Range Information about a specified time range appears in this section when you place the pointer over a relative time range or a time frame.
    2 Relative A time range relative to the current point in time. Information about the specified time range appears in the Time Range section when you place the pointer over any element in this section.
    2 Time Frame A time range that is more than one minute. Information about the specified time range appears in the Time Range section when you place the pointer over any element in this section.
    4 Custom A custom time range. Specify a time range and click OK to confirm the time range.

FAQ

  • Q: I can only view 2,000 audit log entries in total. How can I view the others?

    The Audit Log page in the ApsaraDB for Redis console displays up to 2,000 audit log entries. To view more audit log entries, log on to the Log Service console. For more information, see Query logs.

  • Q: Where can I view the documentation for earlier versions of the audit log feature?

    A: For more information, see Query audit logs(previous version).
