This tutorial guides you to connect your headquarters or branches to Alibaba Cloud through SAG-1000 Smart Access Gateway (SAG).

Scenarios

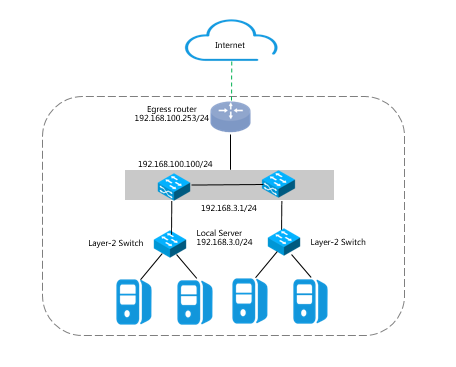

This tutorial takes the network architecture in the following figure as an example. Two Layer-3 switches form a switch stack and are connected to two Layer-2 switches. Local clients access the Internet through Layer-2 switches.



As shown in the following figure, one SAG-1000 Smart Access Gateway is connected to Layer-3 switches through one-arm mode to connect local servers to Alibaba Cloud.



Network planning

Before you begin, you must plan the following network configurations and ensure that the CIDR blocks do not conflict with one another:
  • The CIDR blocks of the VPCs to connect. In this tutorial, the CIDR blocks of the two VPCs are 192.168.0.0/24 and 10.0.0.0/24.
  • IP addresses of local servers/clients

    Plan the IP addresses of the local servers/clients according to your needs. In this tutorial, the IP address 192.168.3.0/24 is used.

  • IP addresses used by the device to communicate with the Layer-3 switches

    Plan the IP addresses of the ports used by the SAG device to communicate with the Layer-3 switches. We recommend that you set the mask to /30. In this tutorial, the port IP addresses used by the device are 192.168.11.2/24 and 192.168.12.2/24.

  • Service IP address

    Plan the service IP address of the SAG device. In this tutorial, the service port IP address 192.168.101.1 is used.

  • Management port IP address

    Plan the management port IP address of the SAG device. You can use an independent management port IP address or use the service port IP address as the management port IP address. In this tutorial, 192.168.0.1/24 is used as the management port IP address. In this tutorial, 192.168.0.1/24 is used as the management port IP address.

Table 1. Example values in this tutorial
Configuration Example value
CIDR blocks of the VPCs

VPC1: 192.168.0.0/24

VPC2: 10.0.0.0/24

The CIDR block of the egress router 192.168.100.253/24
The CIDR block used by the Layer-3 switches to communicate with Alibaba Cloud 192.168.100.100/24
The CIDR block used by the Layer-3 switches to communicate with the SAG device 192.168.3.1/24
IP addresses of the ports of the SAG device

G3 192.168.11.2/24

G4 192.168.12.2/24

IP addresses of the ports on the peer switches of the SAG device

G11 192.168.11.1/24

G12 192.168.12.1/24

The CIDR block of local servers 192.168.3.0/24
