Network Performance of ECS

Created#
More Posted time:Jan 8, 2016 16:53 PM
I have tested for Alibaba Cloud ECS to ECS network throughput by PerfkitBenchmarker tools both about external and internal network interface.


Figure 1:  VM-to-VM network throughput (US West region)


Our test objects are instances within VPC network. So we’d like illustrate the network performance between Alibaba Cloud ECS with VPC network mode.
The ECS to ECS external network throughput is about 850Mbps (~106MB/s), and the internal network throughput is just about 211Mbps (~26MB/s).
Actually, the external network throughput capacity is depending on Internet bandwidth of AliCloud EIP. And it truly decide on user's customization about EIP.
That could explain why the network throughput of ECS have nothing to do with the instance type.


The bandwidth of EIP has it’s limitation because of the ECS' product restriction. (More details pls refer to the Product and Business Restrictions page )

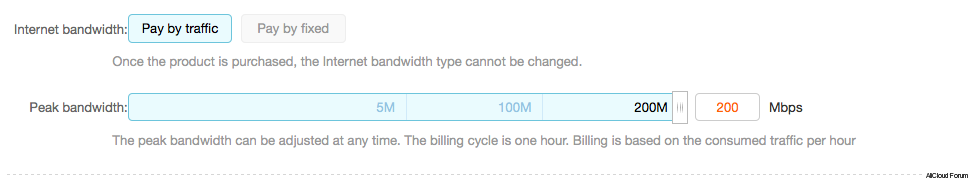

Moreover, Alibaba Cloud users can request to change the Internet bandwidth of EIP by submit a ticket to at most 400Mbps.

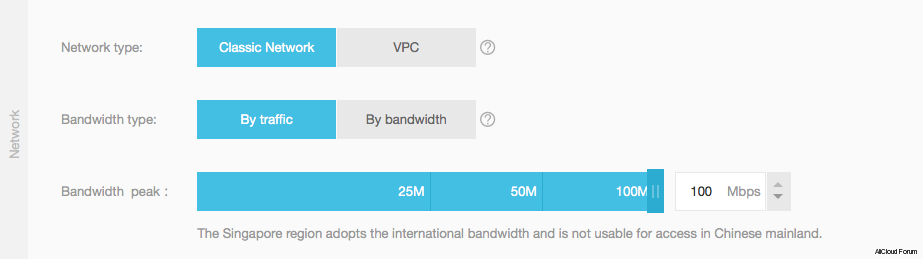

Likewise, if we specify the classic network mode of an ECS, the external network throughput is up to 100 Mbps just as our test simple results(Throughput:external: 98.600000 Mbits/sec).
[Cloudy edited the post at Apr 19, 2016 16:08 PM]

Latest likes:

binarybinary

Cloudy
Administrator
Administrator
  • UID63
  • Fans7
  • Follows1
  • Posts70
1st Reply#
Posted time:Jan 25, 2016 11:17 AM
cool

Cloudy
Administrator
Administrator
  • UID63
  • Fans7
  • Follows1
  • Posts70
2nd Reply#
Posted time:Mar 4, 2016 17:11 PM
very helpful!

frank
Intern
Intern
  • UID294
  • Fans0
  • Follows0
  • Posts5
3rd Reply#
Posted time:Apr 17, 2016 10:40 AM
Hi Geo,
Do you have any tool to test out the security of the ECS instance?

geo
geo
Intern
Intern
  • UID129
  • Fans2
  • Follows0
  • Posts4
4Floor#
Posted time:May 17, 2016 14:03 PM
Frank,
I haven't any security test tool up to now, but there are some public security test tools I recommend to you:
IBM AppScan, Metasploit, Backtrack.
